Wetting Bahaviour and Reactivity between Liquid Gd and ZrO2 Substrate

  • Patrycja Turalska Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
  • Marta Homa Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
  • Grzegorz Bruzda Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
  • Natalia Sobczak Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland Institute of Precision Mechanics, 3 Duchnicka Str., 01-796 Warsaw, Poland
  • Ivan Kaban IFW Dresden, Institute for Complex Materials, Helmholtzstraße 20, 01069 Dresden, Germany
  • Norbert Mattern IFW Dresden, Institute for Complex Materials, Helmholtzstraße 20, 01069 Dresden, Germany
  • Jürgen Eckert Erich Schmidt Institute of Materials Science, Austrian Academy of Sciences, Jahnstraße 12, 8700 Leoben, Austria Department Materials Physics, Montanuniversität Leoben, Jahnstraße 12, 8700 Leoben, Austria

Abstract

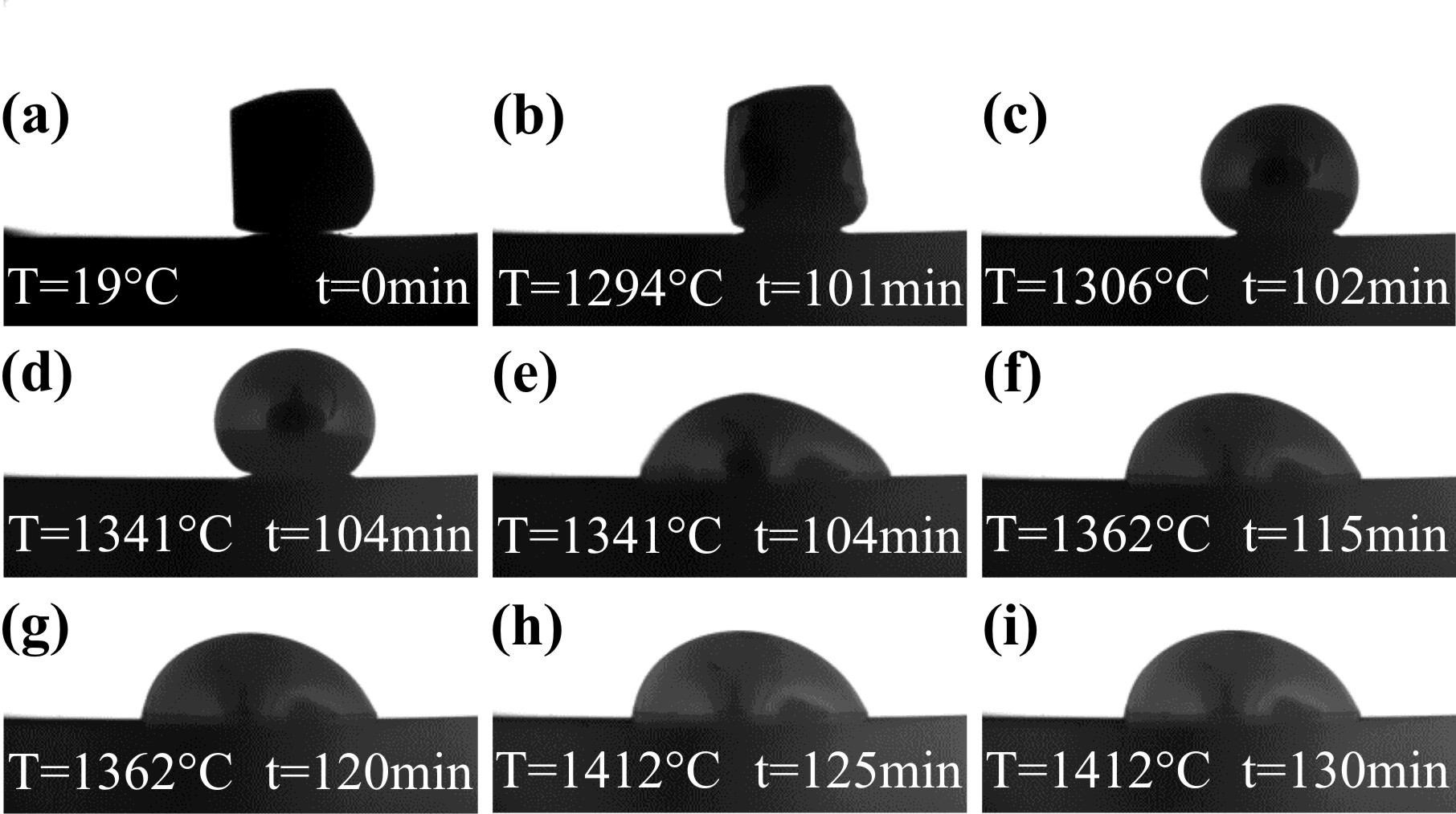

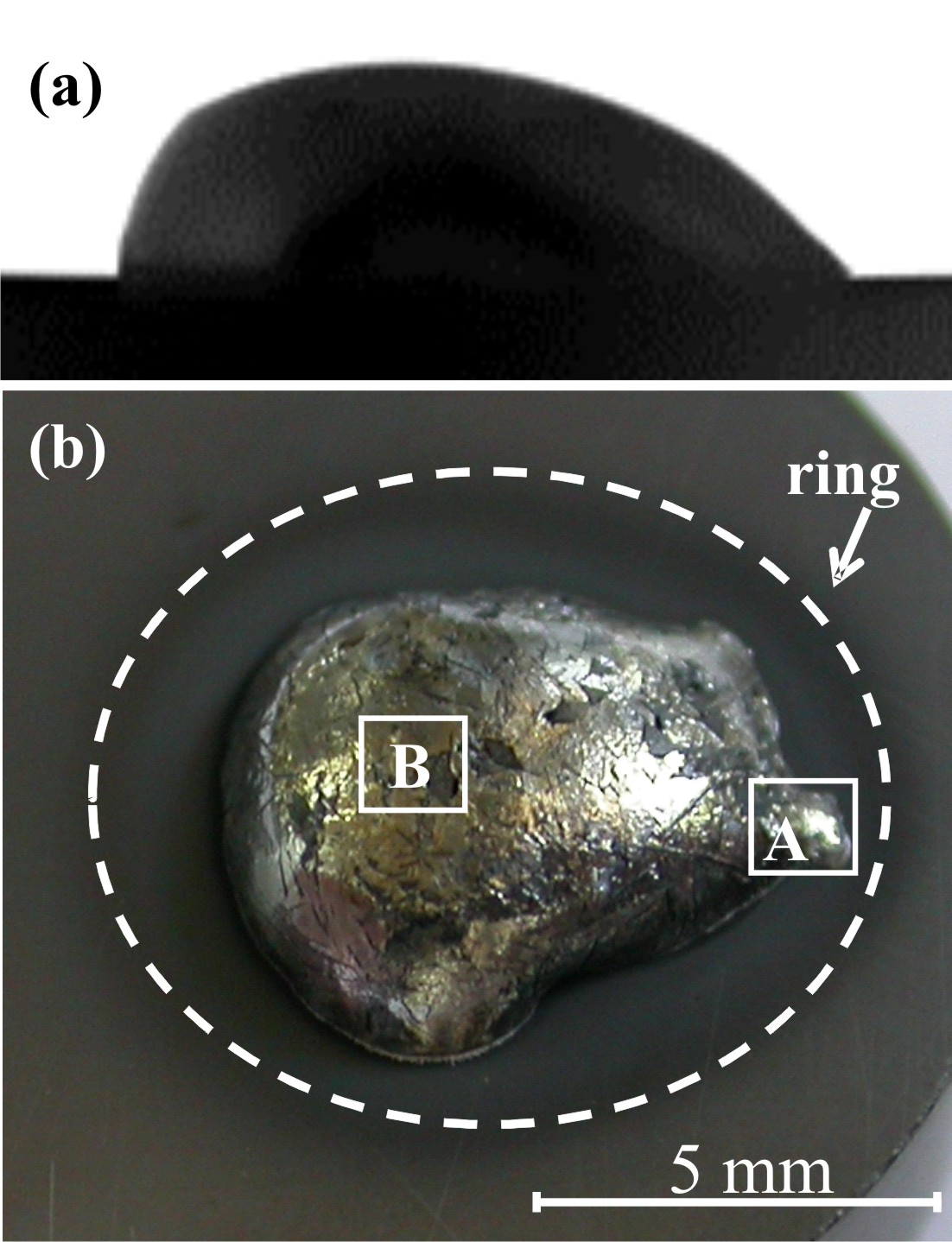

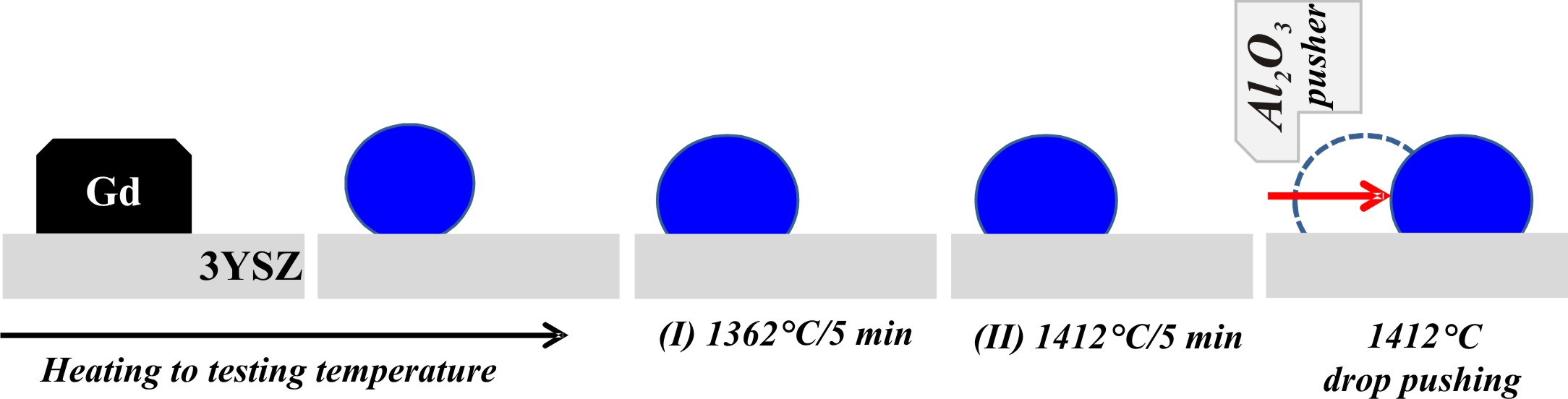

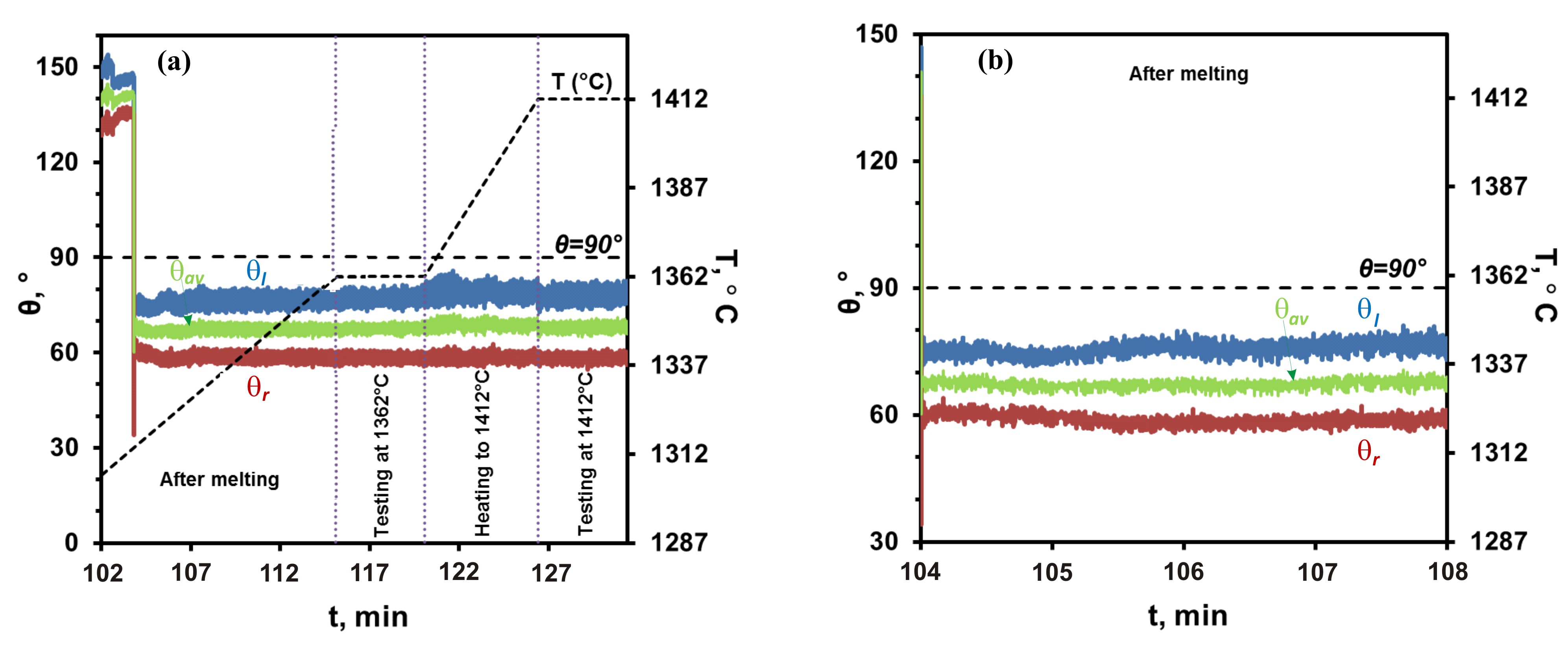

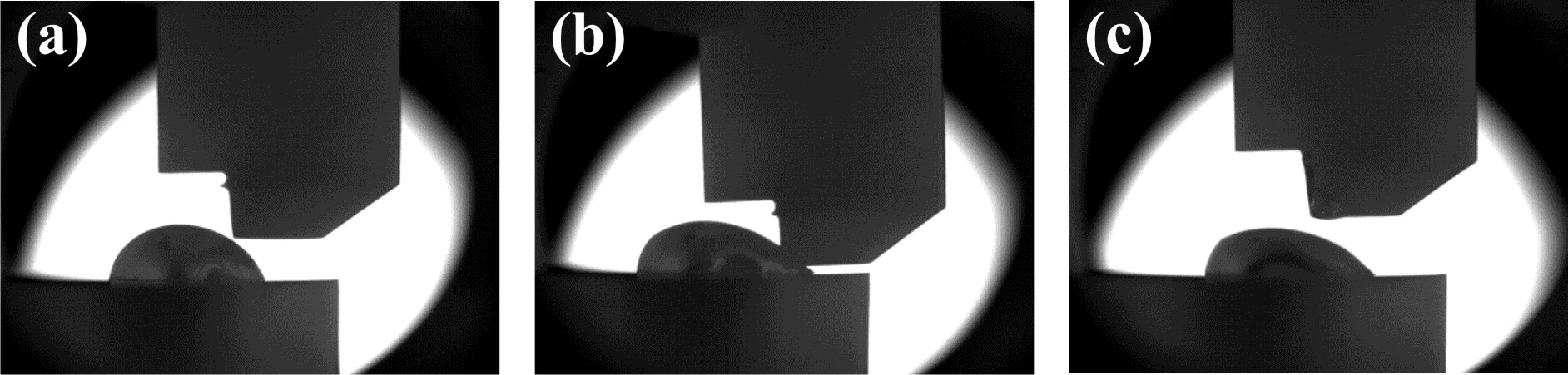

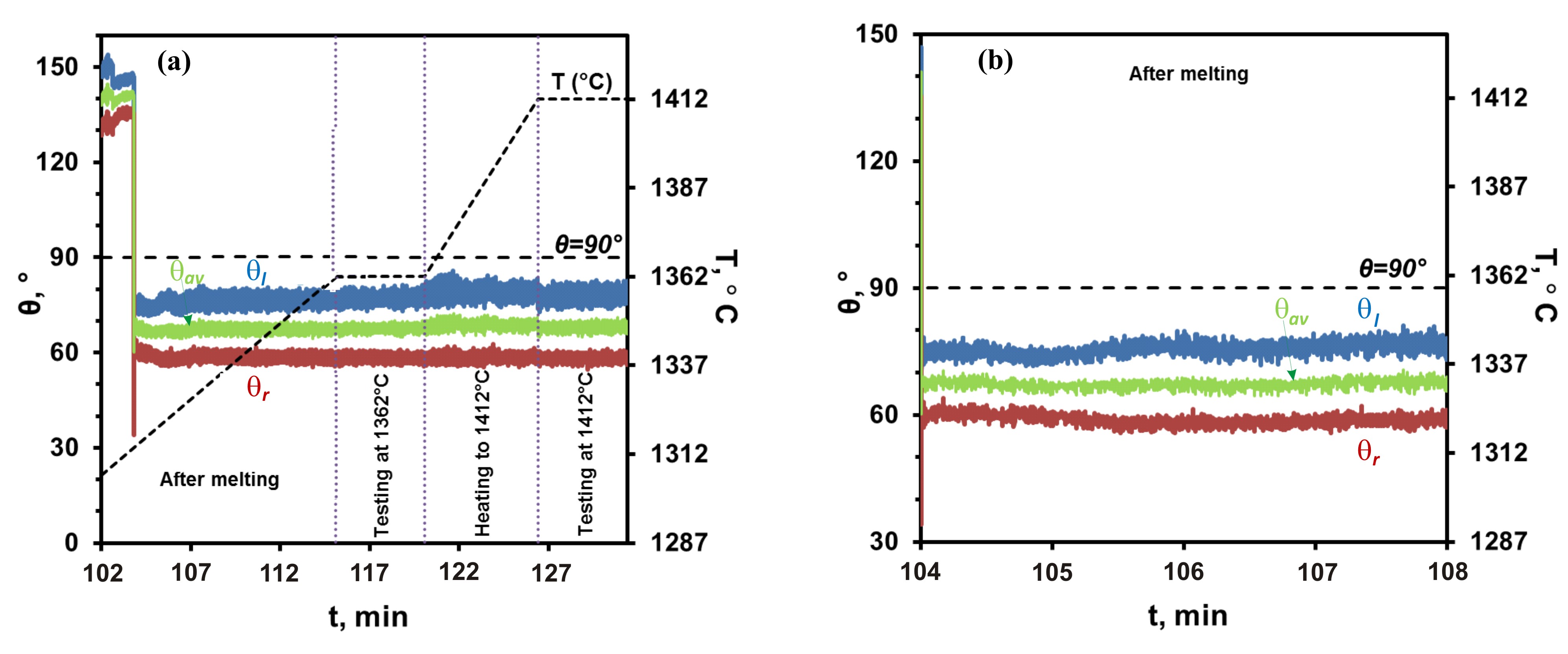

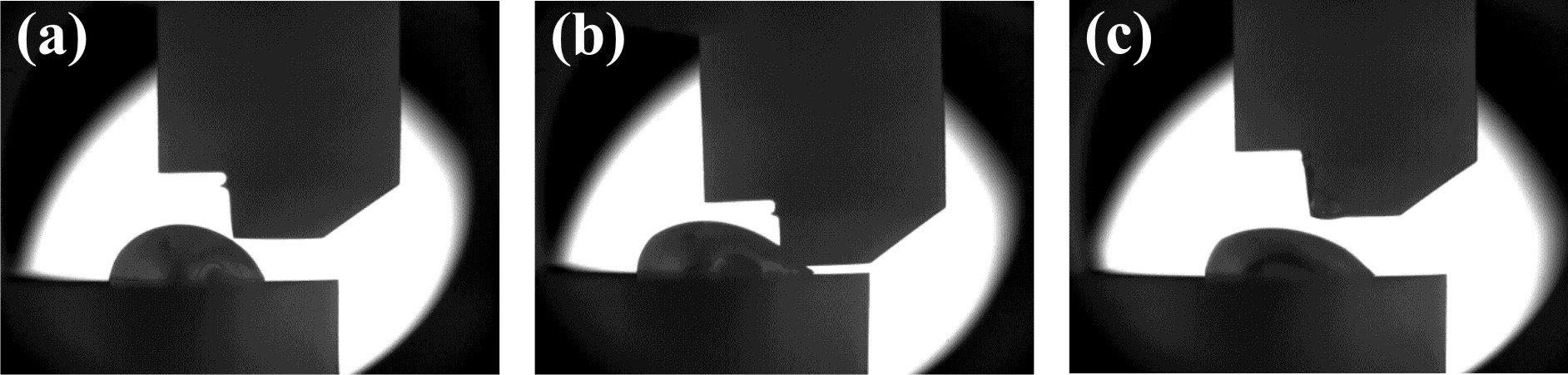

Wetting behavior and reactivity between molten pure Gd and polycrystalline 3YSZ substrate (ZrO2 stabilized with 3 wt% of Y2O3) was experimentally determined by a sessile drop method using classical contact heating procedure coupled with drop pushing procedure. The test was performed under an inert flowing gas atmosphere (Ar) at two temperatures of 1362 °C and 1412 °C. Immediately after melting (Tm=1341°C), liquid Gd did not wet the substrate forming the contact angle of θ=141°. The non-wetting to wetting transition (θ < 90°) took place after about 110 seconds of interaction and was accompanied by a sudden decrease in the contact angle value from θ=141° to θ=67°. Further heating of the Gd/3YSZ couple to test temperature did not affect its value and the final contact angle value after wettability test was established as θf=67°±1°.

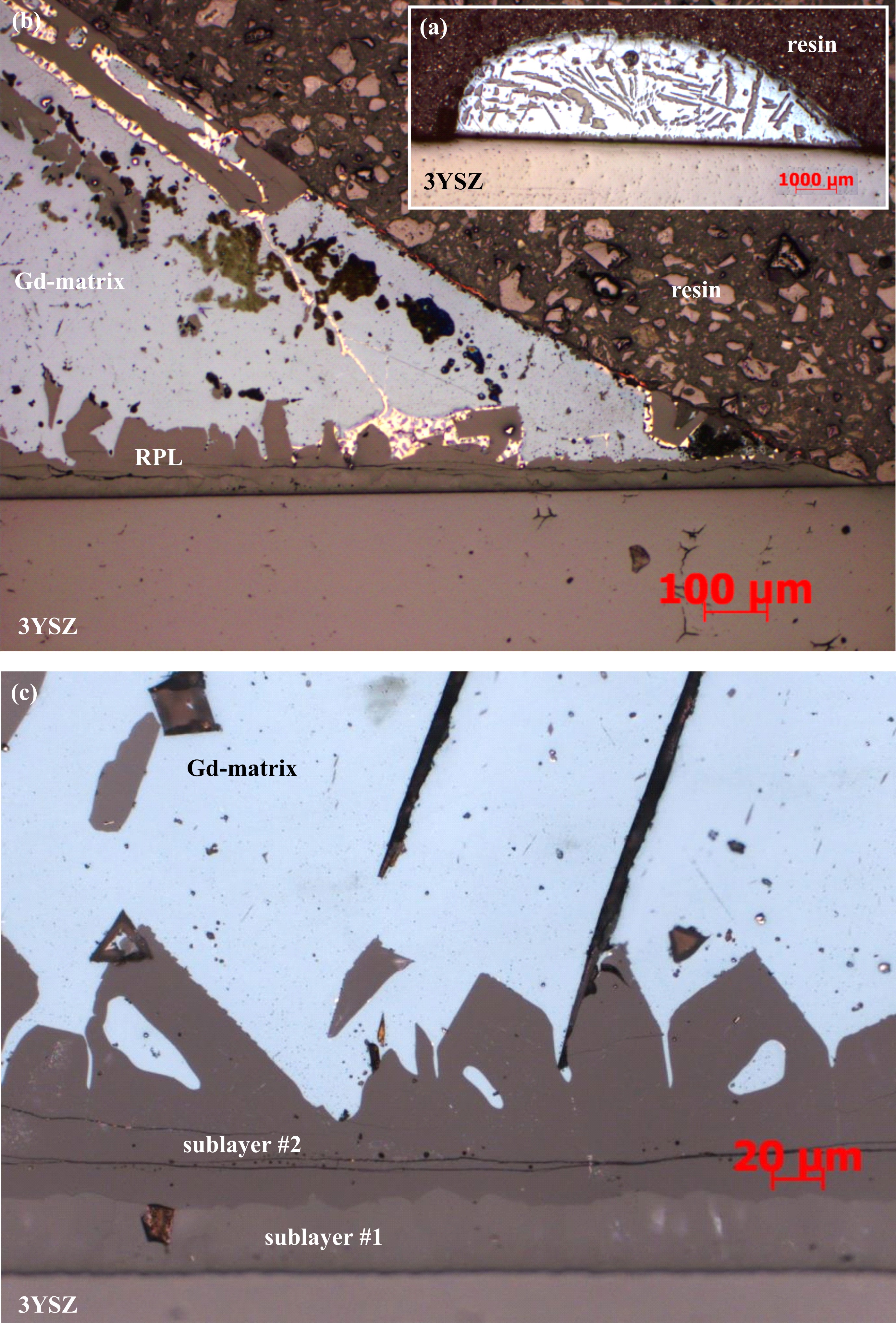

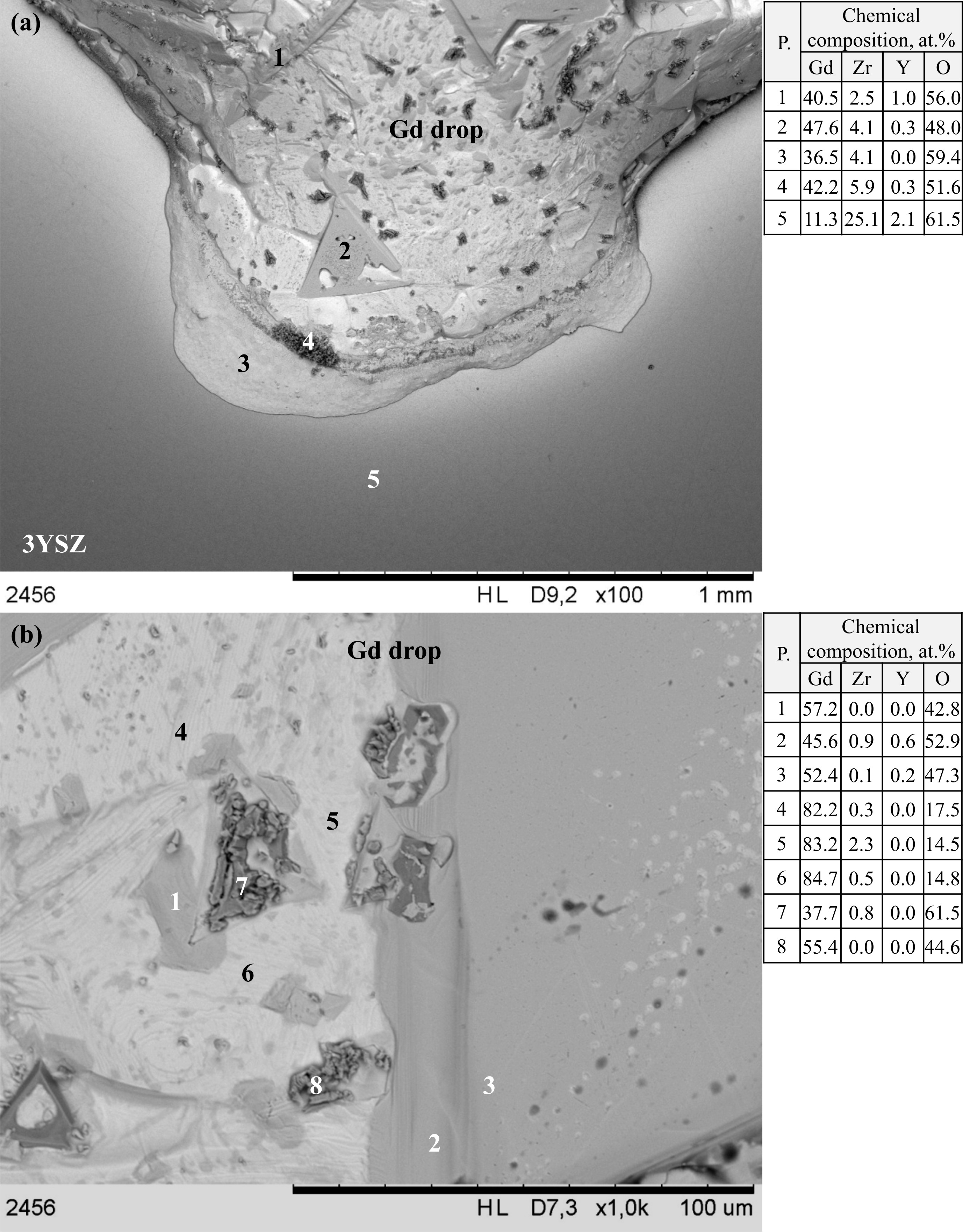

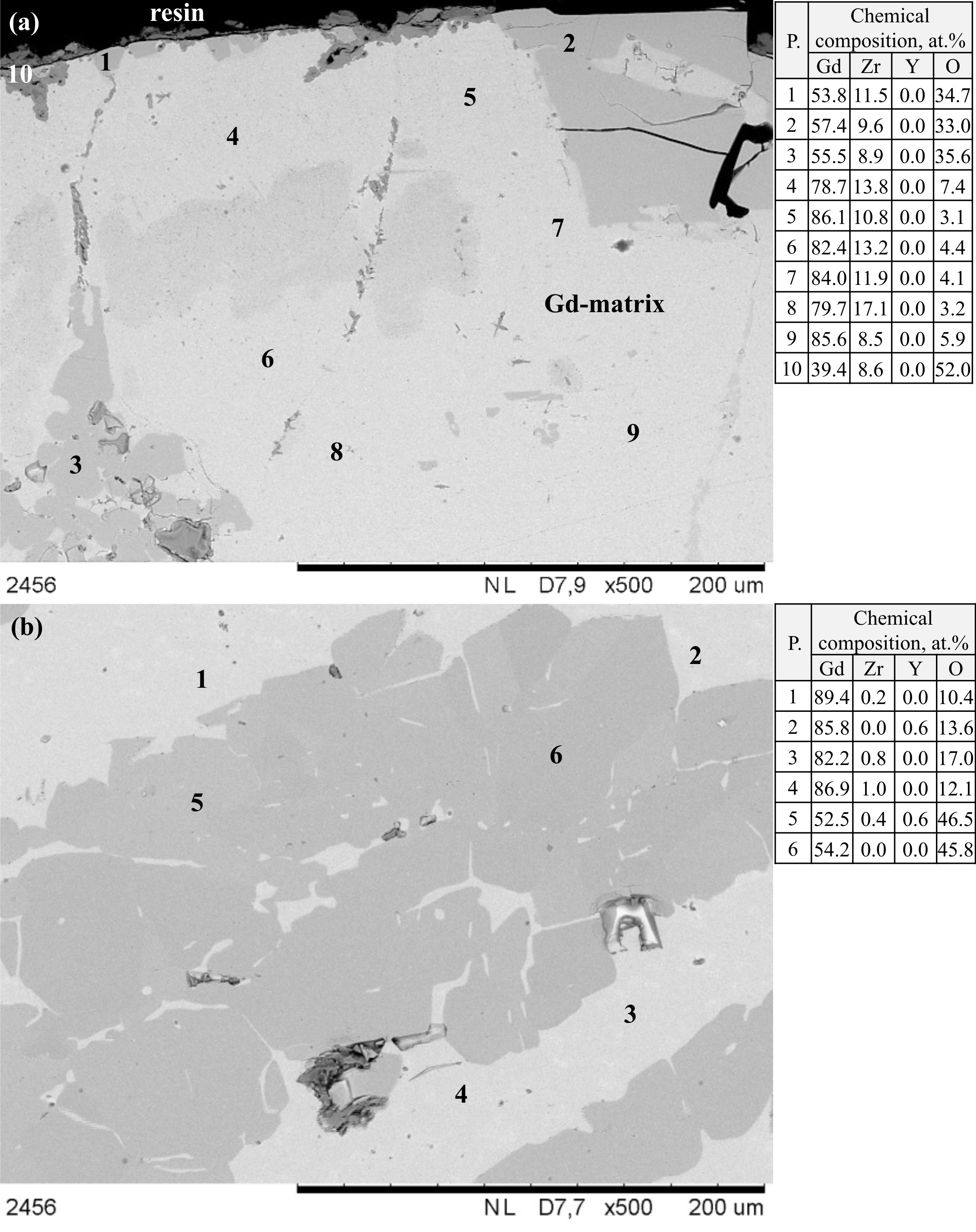

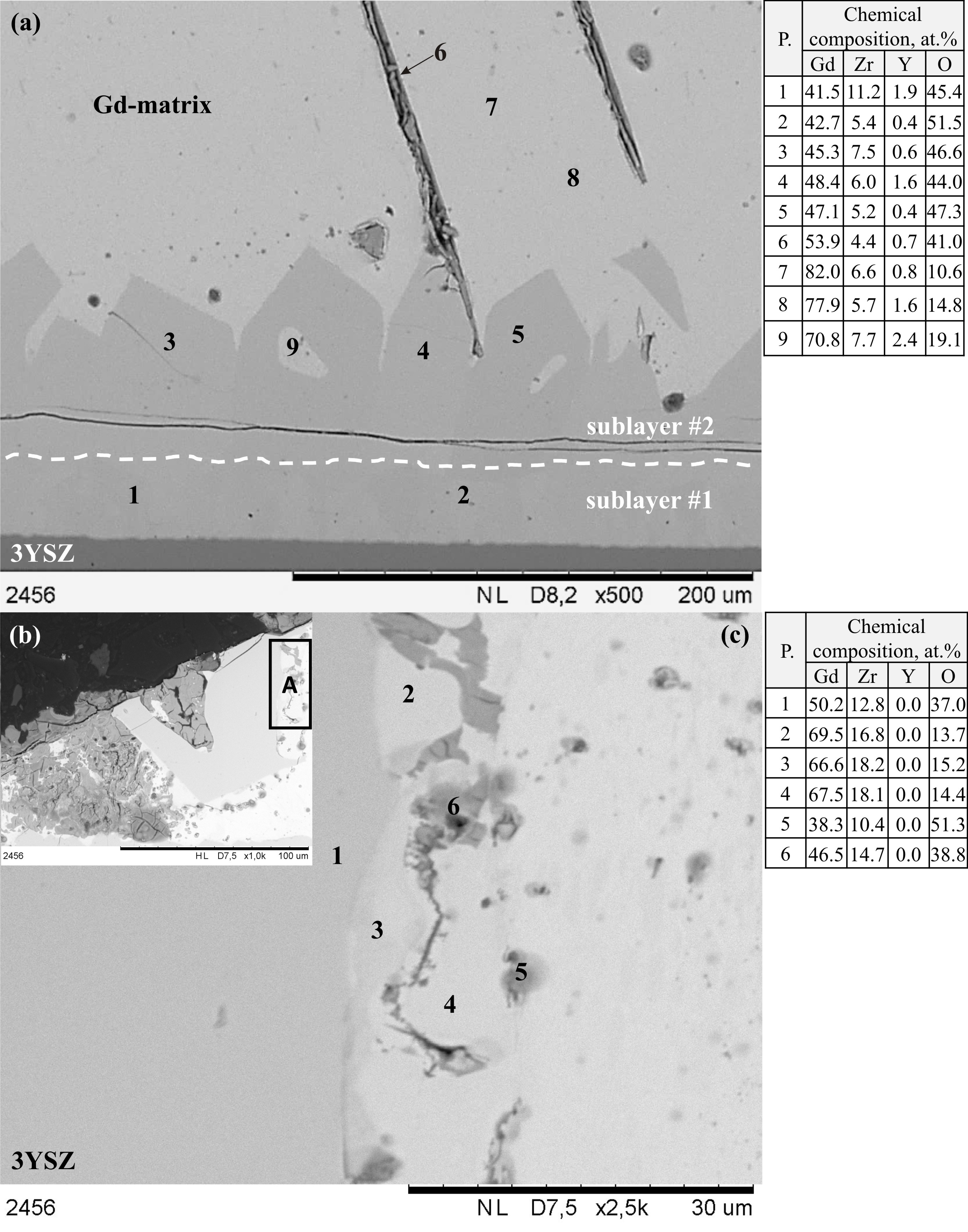

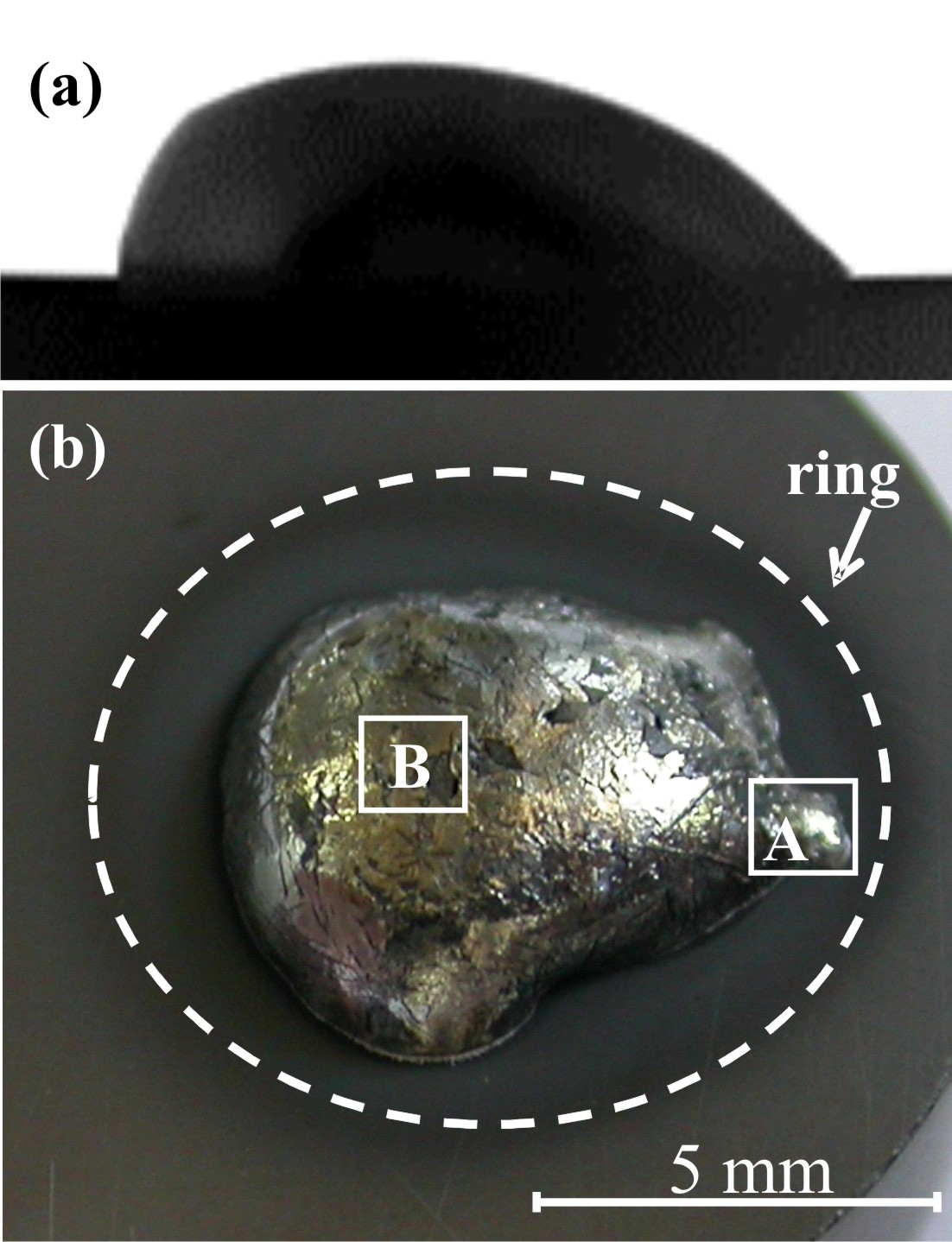

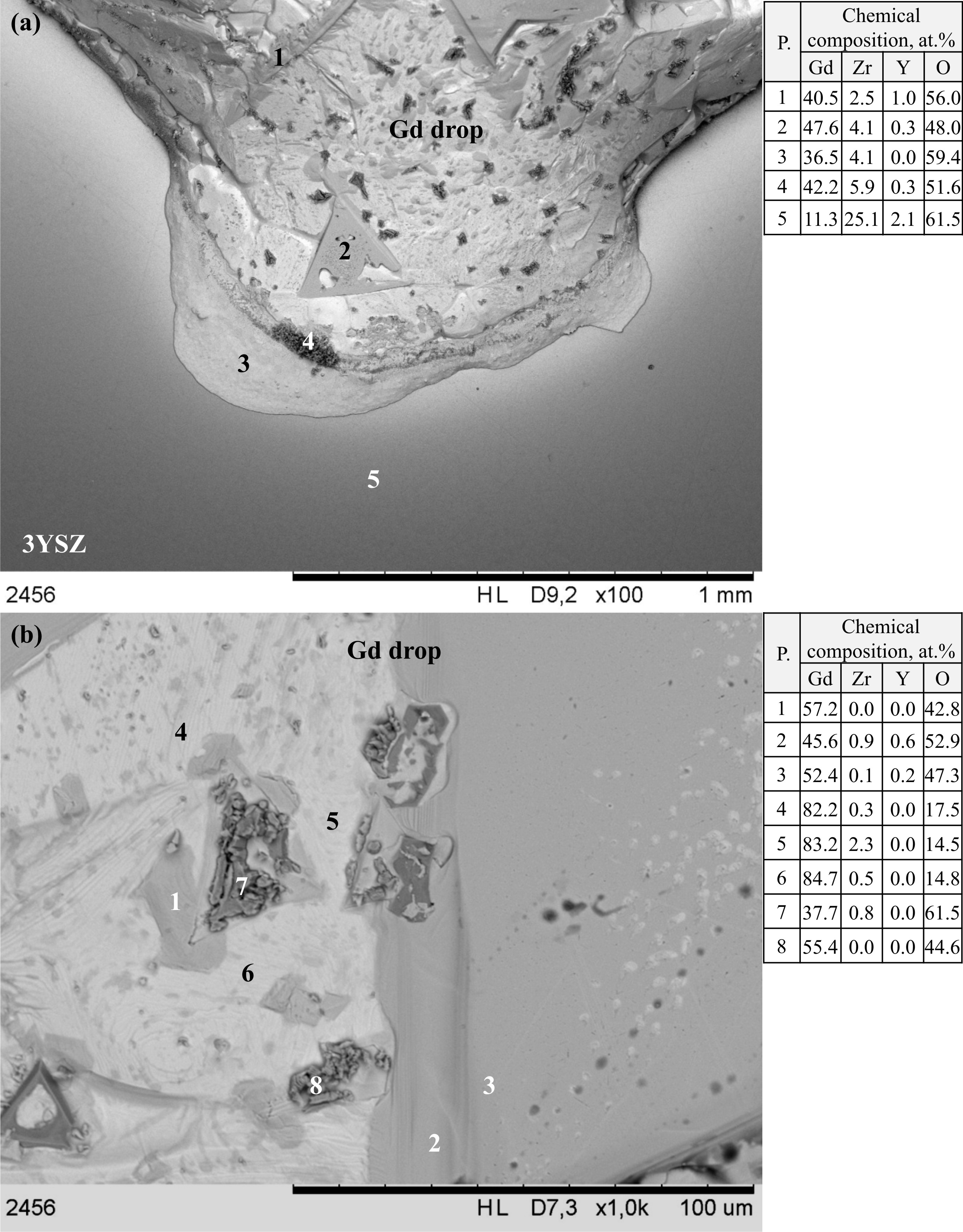

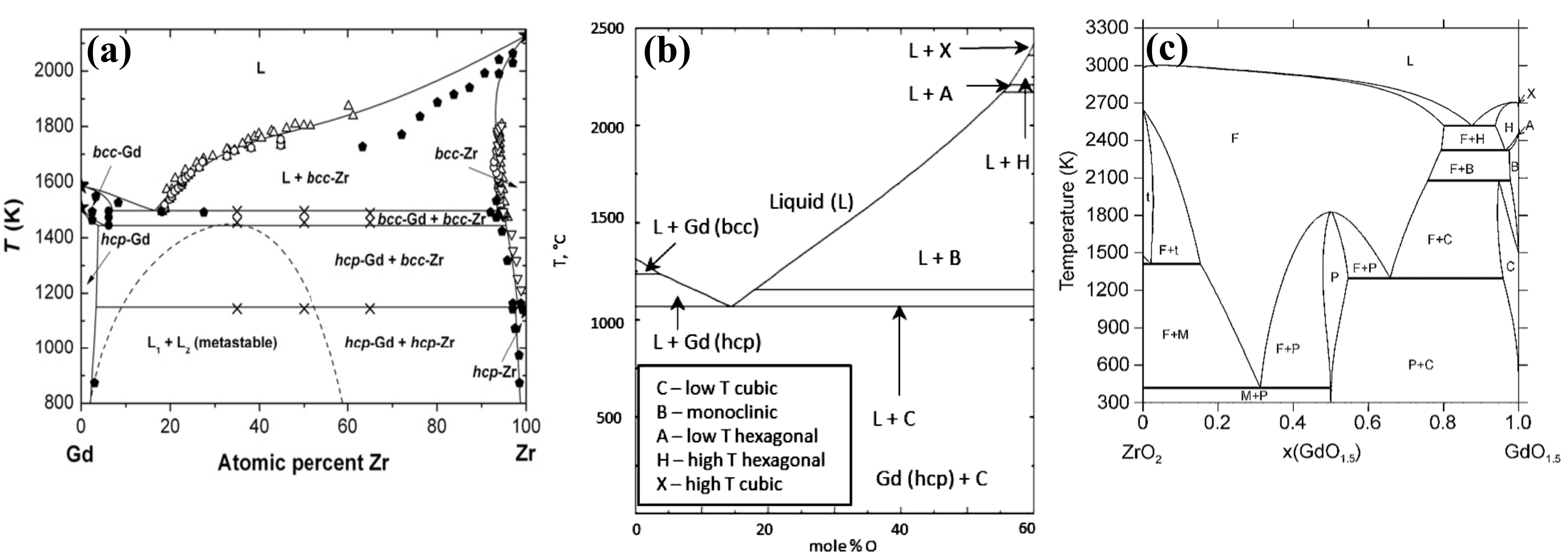

The solidified Gd/3YSZ sessile drop couple was studied by means of optical microscopy and scanning electron microscopy coupled with X-ray energy diffraction spectroscopy. Structural investigations revealed that the wettability in the Gd/3YSZ system is of a reactive nature and it is associated with the formation of a continuous layer of a wettable reaction product Gd2Zr2O7.

Author Biographies

Patrycja Turalska, Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
Marta Homa, Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
Grzegorz Bruzda, Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland
Natalia Sobczak, Foundry Research Institute, 73 Zakopianska Str., 30-418 Krakow, Poland Institute of Precision Mechanics, 3 Duchnicka Str., 01-796 Warsaw, Poland
Ivan Kaban, IFW Dresden, Institute for Complex Materials, Helmholtzstraße 20, 01069 Dresden, Germany
Norbert Mattern, IFW Dresden, Institute for Complex Materials, Helmholtzstraße 20, 01069 Dresden, Germany
Jürgen Eckert, Erich Schmidt Institute of Materials Science, Austrian Academy of Sciences, Jahnstraße 12, 8700 Leoben, Austria Department Materials Physics, Montanuniversität Leoben, Jahnstraße 12, 8700 Leoben, Austria

References

K.U. Kainer, Magnesium alloys and technologies, WILEY-VCH Verlag GmbH & Co. KG, Weinheim, 2003

Y. Hiramitsu, T. Homma and S. Kamado, Improvement of the mechanical properties of Mg-Gd-Y-Zn alloy castings by grain refinement, Mater. Sci. Eng., 2011, 21, p 1–8

L. Tissot and A. Blaise, Magnetic and crystallographic properties of Pr-Gd alloys, J. Appl. Phys., 1970, 41(3), p 1180–1182

J.H. Hsu and Y.W. Fu, Antiferromagnetism of metastable Cr-rich Cr-Gd alloys, J. Appl. Phys., 1994, 75(10), p 7152–7154

V. Sidorov, P. Svec, P. Svec Sr., D. Janikovic, V. Mikhailov, E. Sidorova, L. Son, Electric and magnetic properties of Al86Ni8R6 (R=Sm, Gd, Ho) alloys in liquid and amorphous states, J. Magn. Mater., 2016, 408, p 35–40

C. Wu, D. Ding, L. Xia, and K. C. Chan, Achieving tailorable magneto-caloric effect in the Gd-Co binary amorphous alloys, AIP Adv., 2016, 6(3), p 035302-1–035302-6

B. Schwarz, N. Mattern, Q. Luo, J. Eckert, Magnetic properties and magnetocaloric effect of rapidly quenched Gd–Co–Fe–Al alloys, J. Magn. Mater., 2012, 324, p 1581–1587

I. Kaban, M. Köhler, L. Ratke, R. Nowak, N. Sobczak, N. Mattern, J. Eckert, A. L. Greer, S. W. Sohn, D. H. Kim, Phase separation in monotectic alloys as a route for liquid state fabrication of composite materials, J. Mater. Sci., 2012, 47, p 8360–8366

L. Zhang, M. Bao, Q. Zheng, L. Tian, and J. Du, Magnetocaloric effect in high Gd content Gd-Fe-Al based amorphous/nanocrystalline systems with enhanced Curie temperature and refrigeration capacity, AIP Adv., 2016, 6(3), p 0353220

J.H. Han, N. Mattern, I. Kaban, D. Holland-Moritz, J. Bednarcik, R. Nowak, N. Sobczak, D. H. Kim and J. Eckert, Phase separation in ternary Co–Gd–Ti liquids, J. Phys. Condens. Matter., 2013, 25, p 245104 (7pp)

G. Balducci, A. Ciccioli, G. de Maria, F. Hodaj, Fiqi, G. M. Rosenblatt, Teaching high-temperature materials chemistry at university: (IUPAC Technical Report), Pure Appl. Chem., 2009, 81(2), p 299–338

N. Sobczak, J. Sobczak, R. Asthana and R. Purgert, The mystery of molten metal, China Foundry, 2010, 7(4), p 425–437

N. Sobczak, M. Singh, R. Asthana, High-temperature wettability measurements in metal/ceramic systems – Some methodological issues, Curr. Opin. Solid State Mater. Sci., 2005, 9(4), p 241–253

I. Kaban, R. Nowak, O. Shuleshova, B. Korpala, G. Bruzda, A. Siewiorek, J.H. Han, N. Sobczak, N. Mattern, J. Eckert, Sessile drop study of Gd–Ti monotectic alloys on ceramic substrates: phase transformations, wetting, ad reactivity, J .Mater. Sci., 2012, 47, p 8381–8386

N. Sobczak, P. Turalska, M. Homa, A. Siewiorek, G. Bruzda, R. Nowak, A. Kudyba, I. Kaban, N. Mattern, J. Eckert, High temperature interaction between liquid Gd-containing alloys and selected oxides, Proc. of the 72nd World Foundry Congress, Nagoya, Japan, 2016

N. Sobczak, R. Nowak, W. Radziwill, J. Budzioch, and A. Glenz, Experimental complex for investigations of high temperature capillarity phenomena, Mater. Sci. Eng., 2008, A 495, p 43–49

L. Liggieri and A. Passerone, An automatic technique for measuring the surface tension of liquid metals, High Temp. Technol., 1989, 7(2), p 82–86

ASTRA Reference Book, IENRI, Report, Oct. 2007

A.V. Durov, Y.V. Naidich, B.D. Kostyuk, Investigation of interaction of metal melts and zirconia, J. Mater. Sci., 2005, 40, p 2173–2178

W. Wang, C. Li, J. Li, J. Fan, X. Zhou, Effect of gadolinium doping on phase transformation and microstructure of Gd2O3-Y2O3-ZrO2 composite coatings prepared by electrophoretic deposition, J. Rare Earth, 2013, 31(3), p 289–295

T.B. Reed, Free Energy Formation of Binary Compounds, MIT Press, Cambridge, MA, 1971

N. Mattern, J.H. Han, M. Zinkevich, O. Shuleshova, I. Kaban, D. Holland-Moritz, J. Gegner, F. Yang, J. Bednarčík, W. Löser, J. Eckert, Experimental and thermodynamic assessment of the Gd-Zr system, Calphad, 2012, 39, p 27–32

C. Wong, M. Zinkevich, F. Aldinger, On the thermodynamic modelling of the Zr–O system, Calphad, 2004, 28, p 281–292

O. Fabrichnaya, Ch. Wang, M. Zinkevich, C. G. Levi, and F. Aldinger, Phase equilibria and thermodynamic properties of the ZrO2-GdO1.5-YO1.5 system, J. Phase Equilib. Diff., 2005, 26(6), p 591–604

J.W. McMurray, Thermodynamic Modeling of Uranium and Oxygen Containing Ternary Systems with Gadolinium, Lanthanum, and Thorium, PhD Thesis, University of Tennessee, http://trace.tennessee.edu/utk_graddiss/3152/, 2014. Accessed 18 May 2017

A. Passerone, M.L. Muolo, F. Valenza, F. Monteverde, N. Sobczak, Wetting and interfacial phenomena in Ni–HfB2 system, Acta Mater., 2009, 57, p 356–364

M.L. Muolo, F. Valenza, N. Sobczak, and A. Passerone, Overview on wetting and joining in transition metals diborides, Adv. Sci. Technol., 2011, 64, p 98–107

N. Sobczak, R. Nowak, A. Siewiorek, B. Korpala, G. Bruzda, I. Kaban, O. Shuleshova, J.H. Han, N. Mattern, J. Eckert, High temperature study of monotectic transformation, wetting and reactivity of liquid Gd-Ti alloys, Proc. of the 71st World Foundry Congress, Bilbao, Spain, 2014

L. Xi, I. Kaban, R. Nowak, G. Bruzda, N. Sobczak, J. Eckert, Wetting, reactivity and phase formation at the liquid Ni-Al/TiB2 ceramic interfaces - be published in J. Am. Ceram. Soc.

L. Fan, Y. Xie, X. Shu, Fabrication of Pyrochlore Gd2Zr2O7 by High Temperature Solid State Reaction, Adv. Mat. Res., 2015 (1061-1062), p 87-90

N. Eustathopoulos, Progress in understanding and modelling reactive wetting of metals on ceramics, Curr. Opin. Solid State Mater. Sci., 2005, 9(4), p 152–160
