Yttria stabilized zirconia membrane stability in molten fluoride fluxes for low-carbon magnesium production by the SOM process
Abstract
The Solid Oxide Membrane (SOM) process for magnesium production involves the direct electrolysis of magnesium oxide for energy efficient and low-carbon magnesium production. In the SOM process, magnesium oxide is dissolved in a molten oxy-fluoride flux. An oxygen-ion-conducting SOM tube, made from yttria stabilized zirconia (YSZ), is submerged in the flux. The operating life of the electrolytic cell can be improved by understanding degradation processes in the YSZ, and one way the YSZ degrades is by yttria diffusion out of the YSZ. By adding small amounts of YF3 to the flux, yttria diffusion can be controlled. The diffusion of yttria into the flux was quantified by determining the yttria concentration profile as a function of immersion time in the flux and distance from the flux-YSZ interface. Yttria concentrations were determined using x-ray spectroscopy. The diffusion process was modeled using a numerical approach with an analytic solution to Fick’s second law. These modeling and experimental methods allowed for the determination of the optimum YF3 concentration in the flux to minimize yttria diffusion and improve membrane stability. Furthermore, the effects of common impurities in magnesium ores, such as calcium oxide, silica, and sodium oxide/sodium peroxide, on YSZ stability are being investigated.
References
B. L. Mordike and T. Ebert, “Magnesium Properties — applications — potential,” Mater. Sci Eng.: A, vol. 302, no. 1, pp. 37–45, 2001.
T. Pollock, “Weight Loss with Magnesium Alloys,” Science, vol. 328, no. 5981, pp. 986–987, 2010.
S. Das, “Primary magnesium production costs for automotive applications,” JOM, vol. 60, no. 11, pp. 63–69, Nov. 2008.
Ajay Krishnan, “Solid Oxide Membrane Process for the direct red. of magnesium from magnesium oxide,” Thesis (Ph.D.), Boston University, Boston, 2006.
J. Crank, Mathematics of Diffusion, 2nd ed. Oxford: Clarendon Press, 1975, p. 424.
M. Yashima, M. Kakihana, and M. Yoshimura, “Metastable-stable phase diagrams in the zirconia-containing systems utilized in solid-oxide fuel cell application,” Solid State Ionics, vol. 86–88, no. Part 2, pp. 1131 – 1149, 1996.
J. Kondoh, T. Kawashima, S. Kikuchi, Y. Tomii, and Y. Ito, “Effect of Aging on Yttria-Stabilized Zirconia I. A Study of its Electrochemical Properties,” J. Electrochem. Soc., vol. 145, no. 5, pp. 1527–1536, 1998.
J. Gong, Y. Li, Z. Tang, Y. Xie, and Z. Zhang, “Temperature-dependence of the lattice conductivity of mixed calcia/yttria-stabilized zirconia,” Mater. Chem. Phy., vol. 76, no. 2, pp. 212–216, Aug. 2002.
M. Kilo, G. Borchardt, B. Lesage, O. Kaı̈tasov, S. Weber, and S. Scherrer, “Cation transport in yttria stabilized cubic zirconia: 96Zr tracer diffusion in (ZrxY1–x)O2–x/2 single crystals with 0.15⩽x⩽0.48,” J. Eur. Ceram. Soc., vol. 20, no. 12, pp. 2069 – 2077, 2000.
D. Monceau, M. Filal, M. Tebtoub, C. Petot, and G. Petot-Ervas, “Kinetic demixing of ceramics in an electrical field,” Solid State Ionics, vol. 73, no. 3–4, pp. 221 – 225, 1994.
A. Roine, “HSC Chemistry.” Outokumpu Research Oy, Pori, Finland.

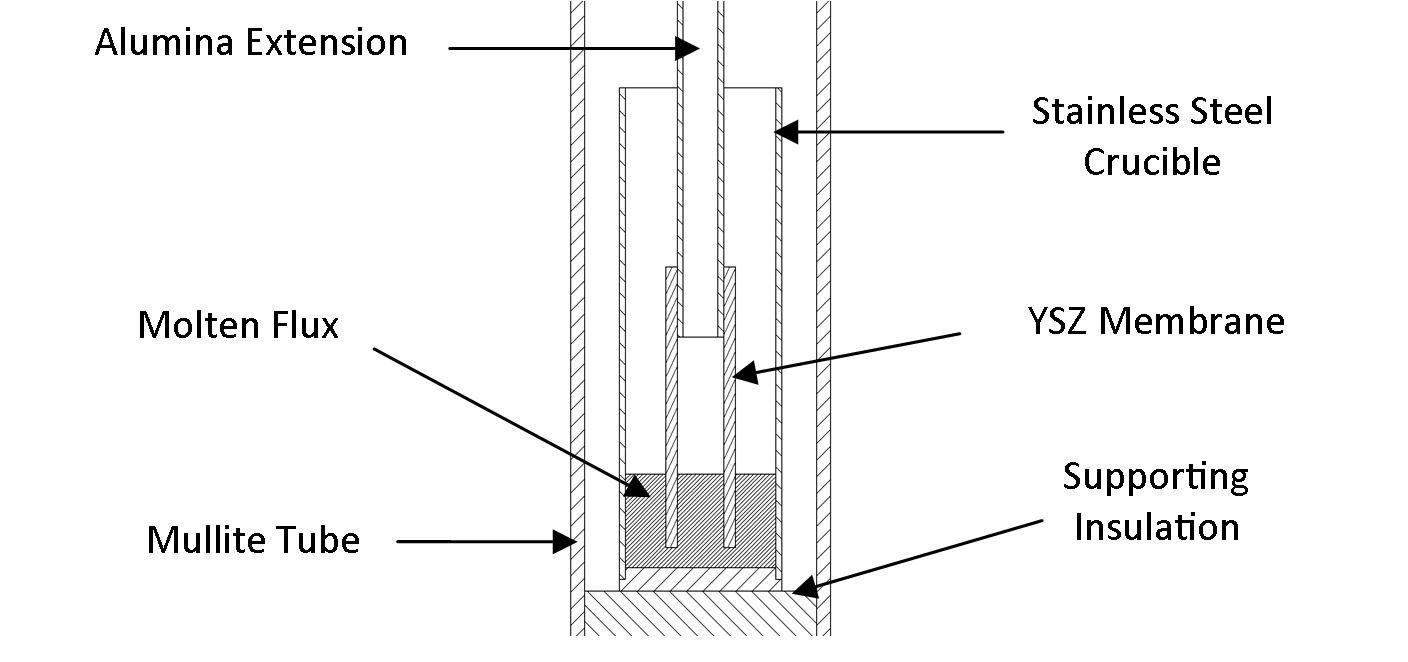

- Figure 1: Static experiment schematic.

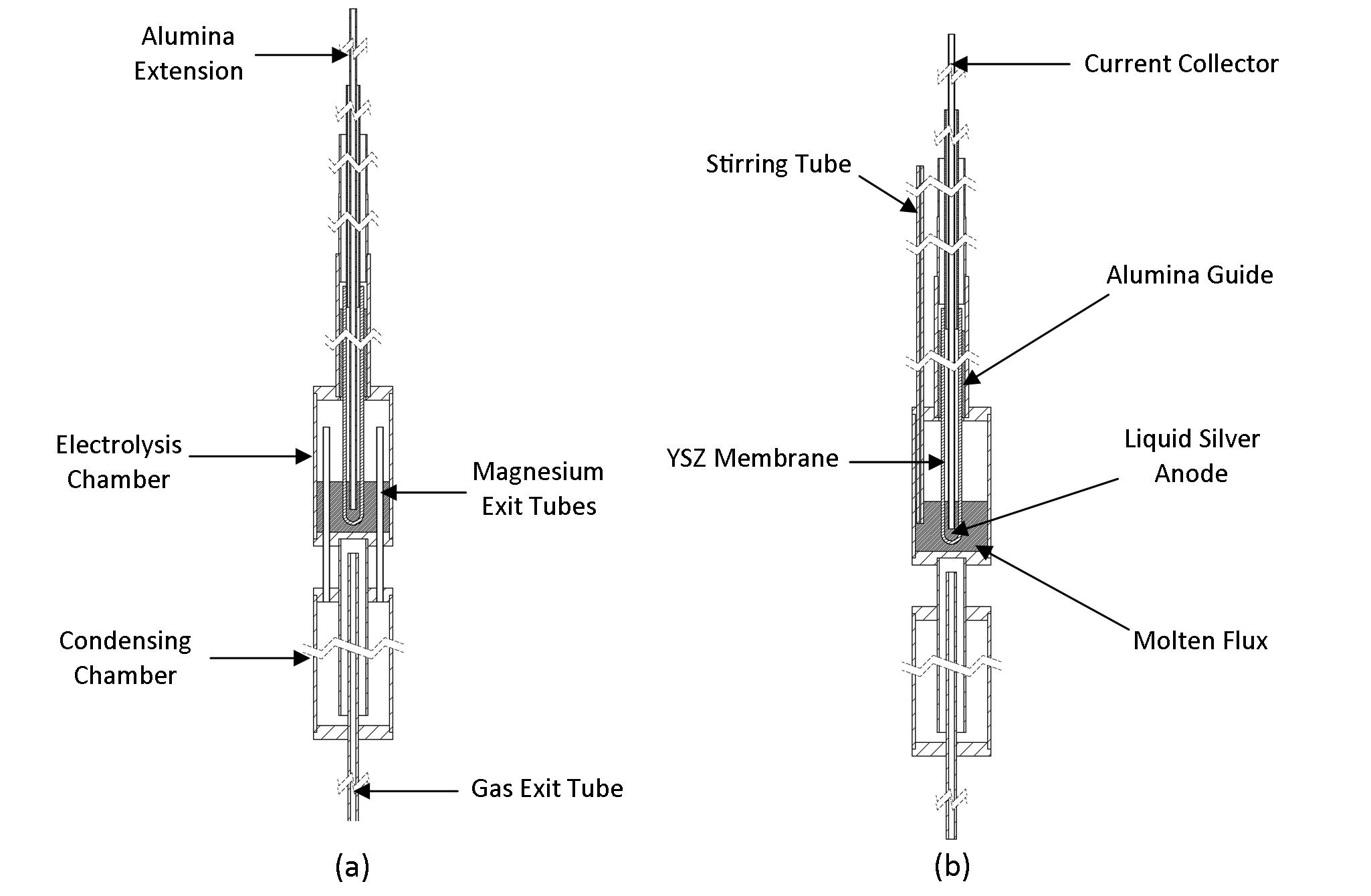

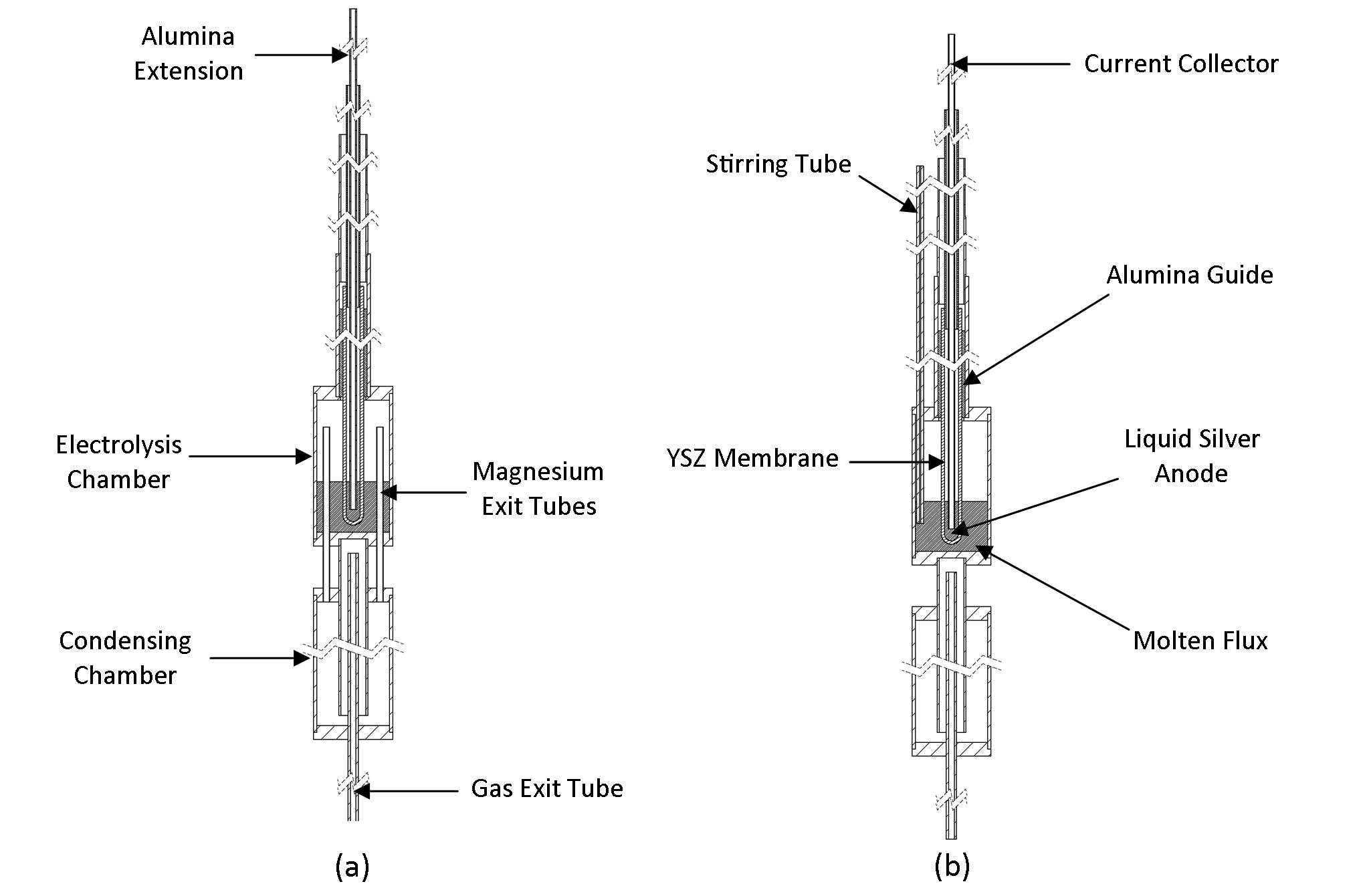

- Figure 2: (a) Front view schematic of electrolysis cell, (b) Right view schematic of electrolysis cell.

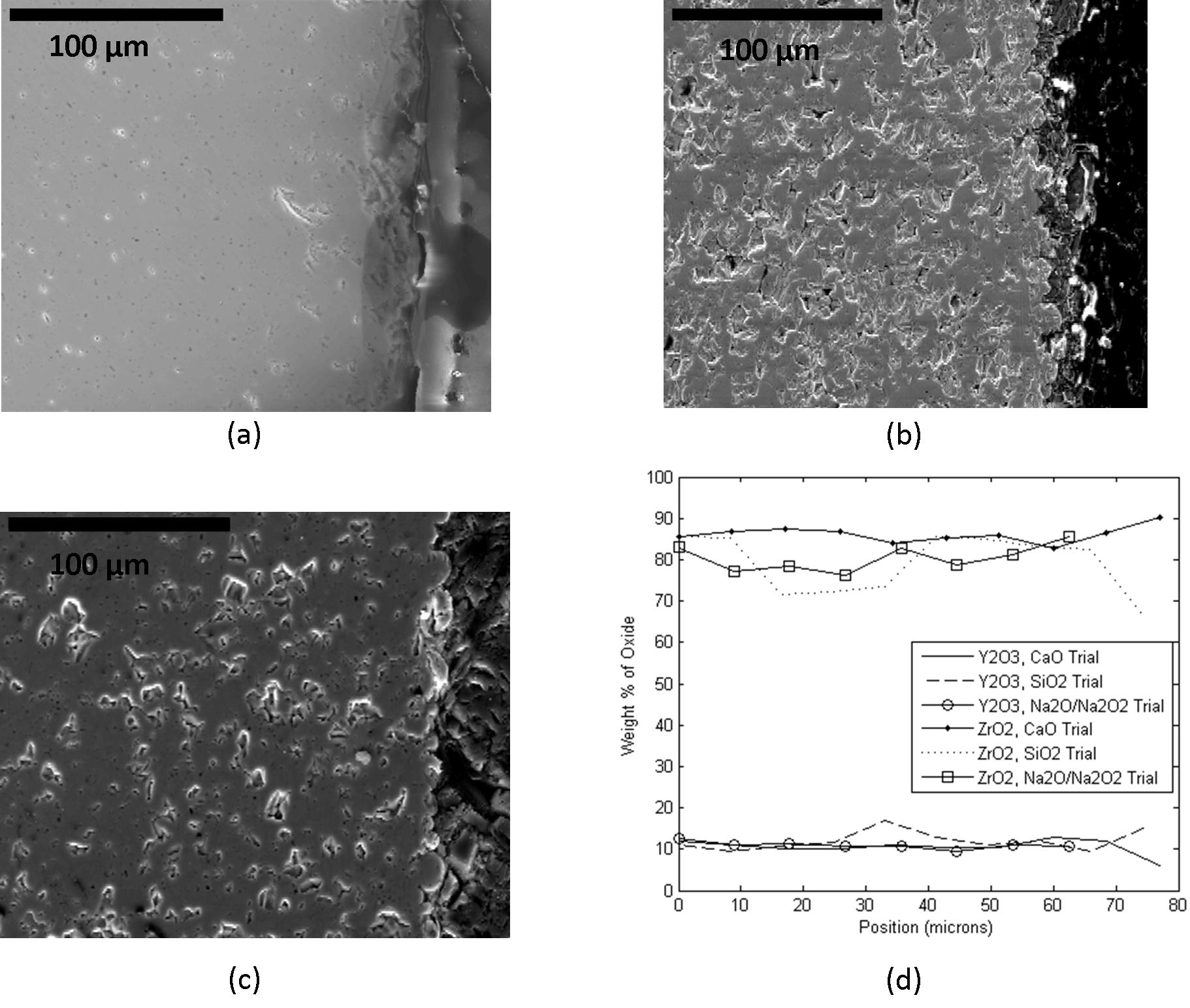

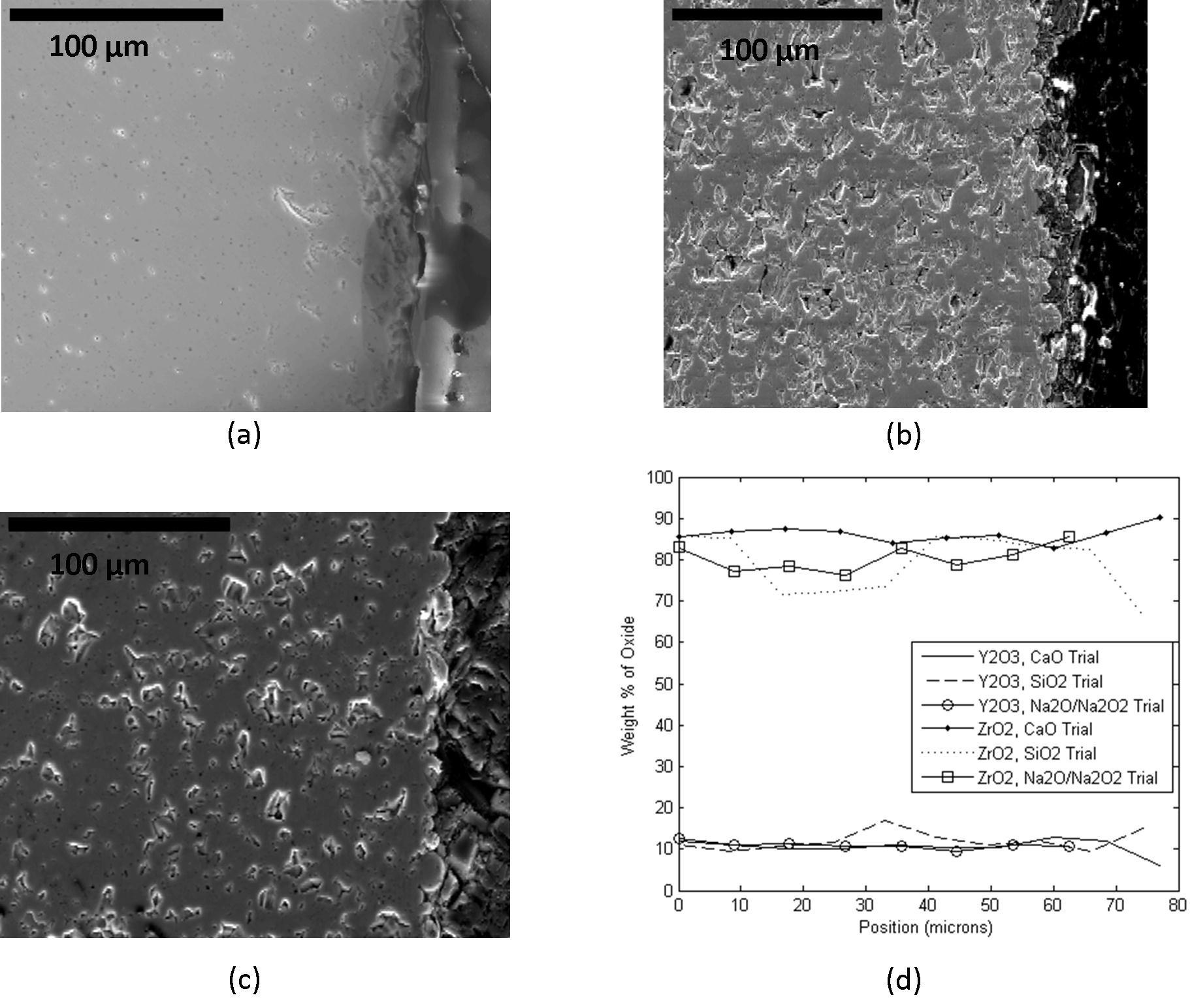

- Figure 4: (a) Membrane exposed to CaO impurity, (b) Membrane exposed to SiO2 impurity, (c) Membrane exposed to Na2O/Na2O2 impurity, (d) Yttria and zirconia concentration profiles as a function of position in YSZ membrane samples exposed to impurities.

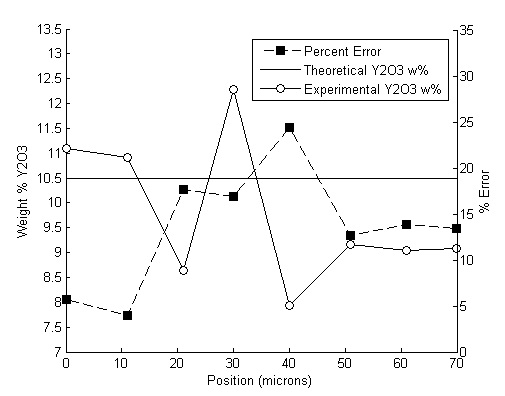

- Figure 8: Percent error analysis for WDS method.
