Study of Al/Cast Iron Interface and Graphite Behavior
Abstract
Abstract:

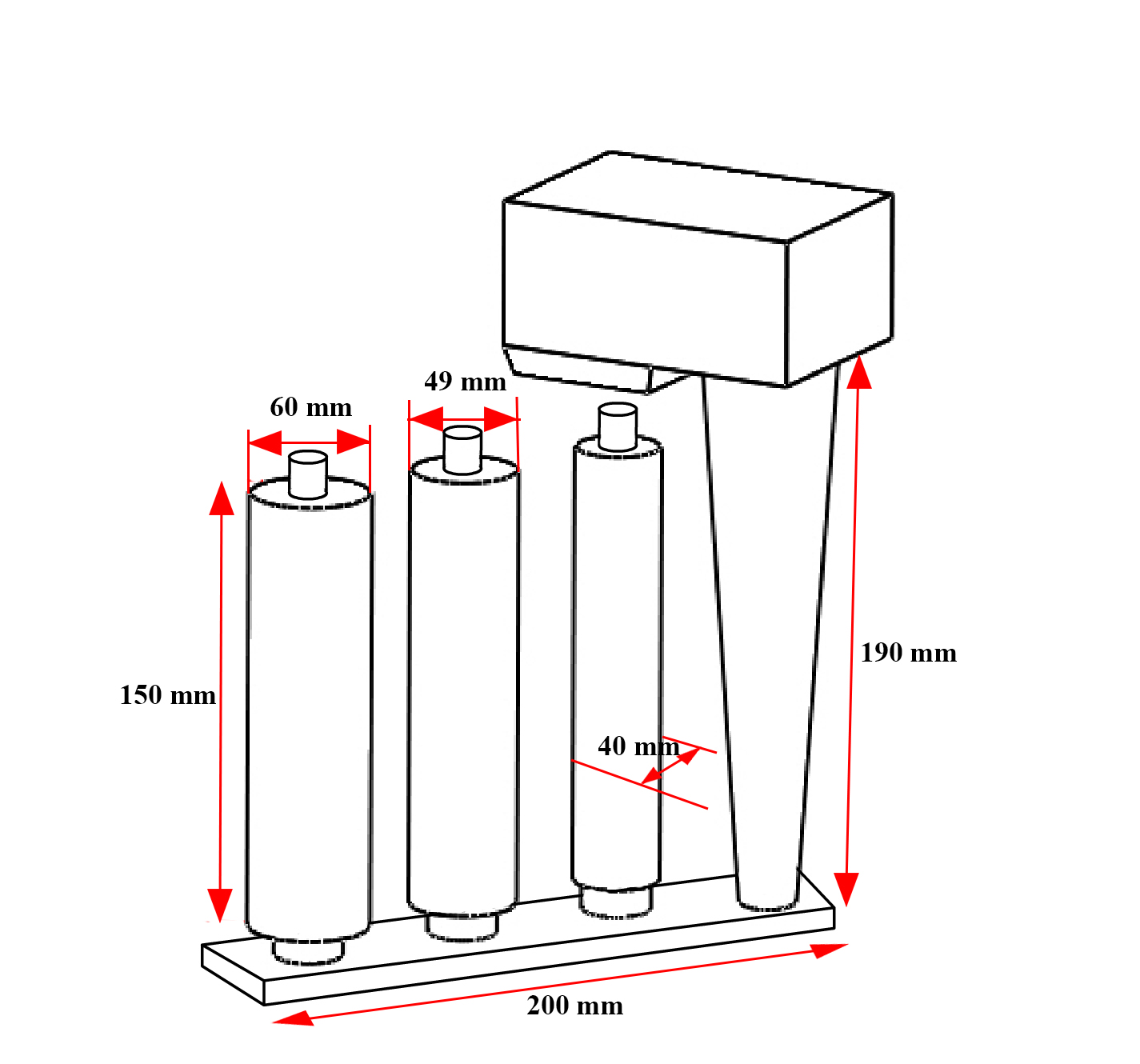

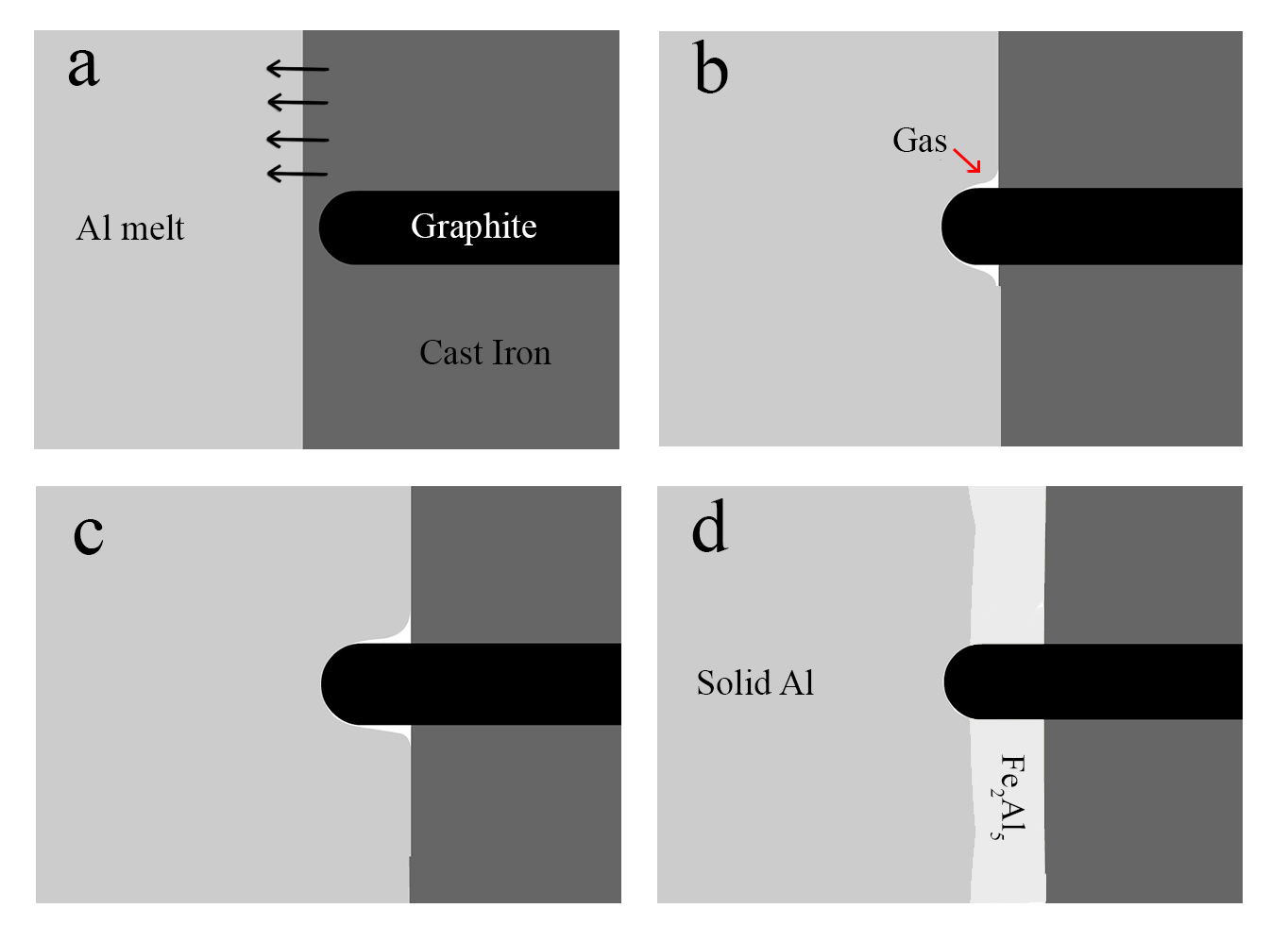

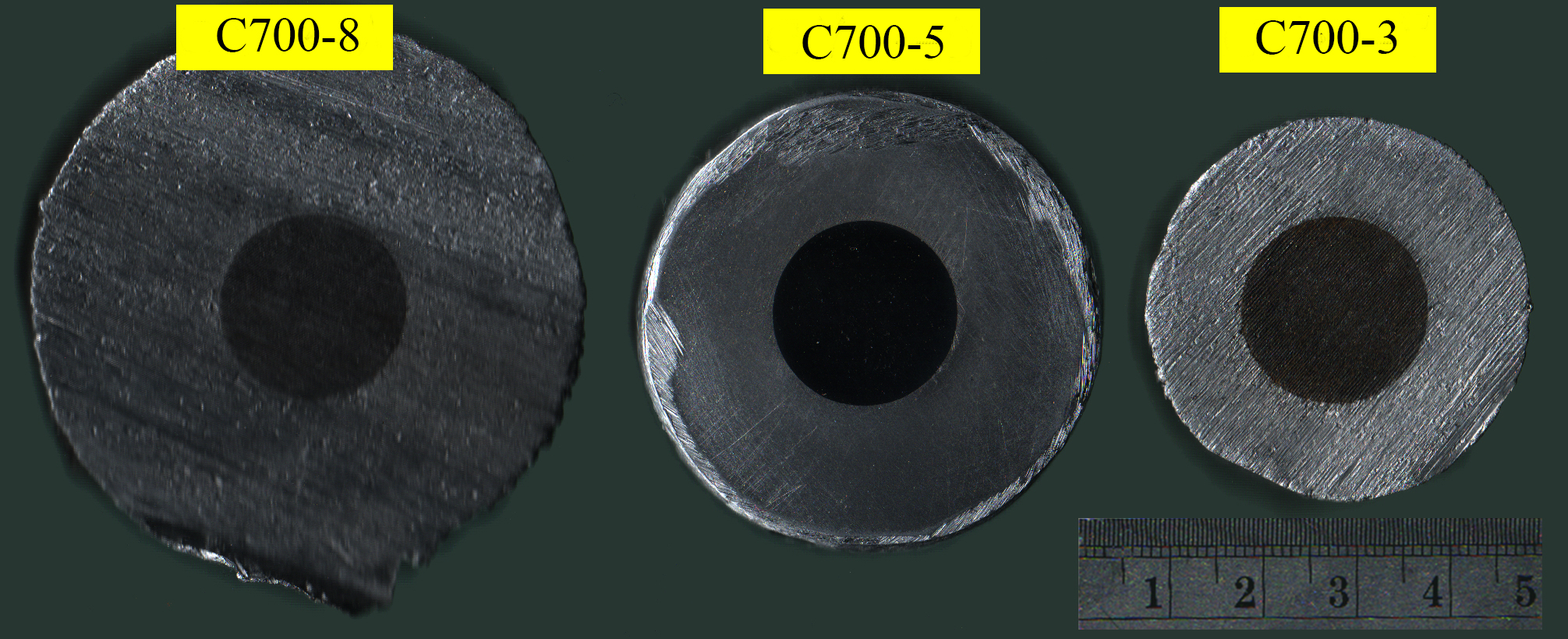

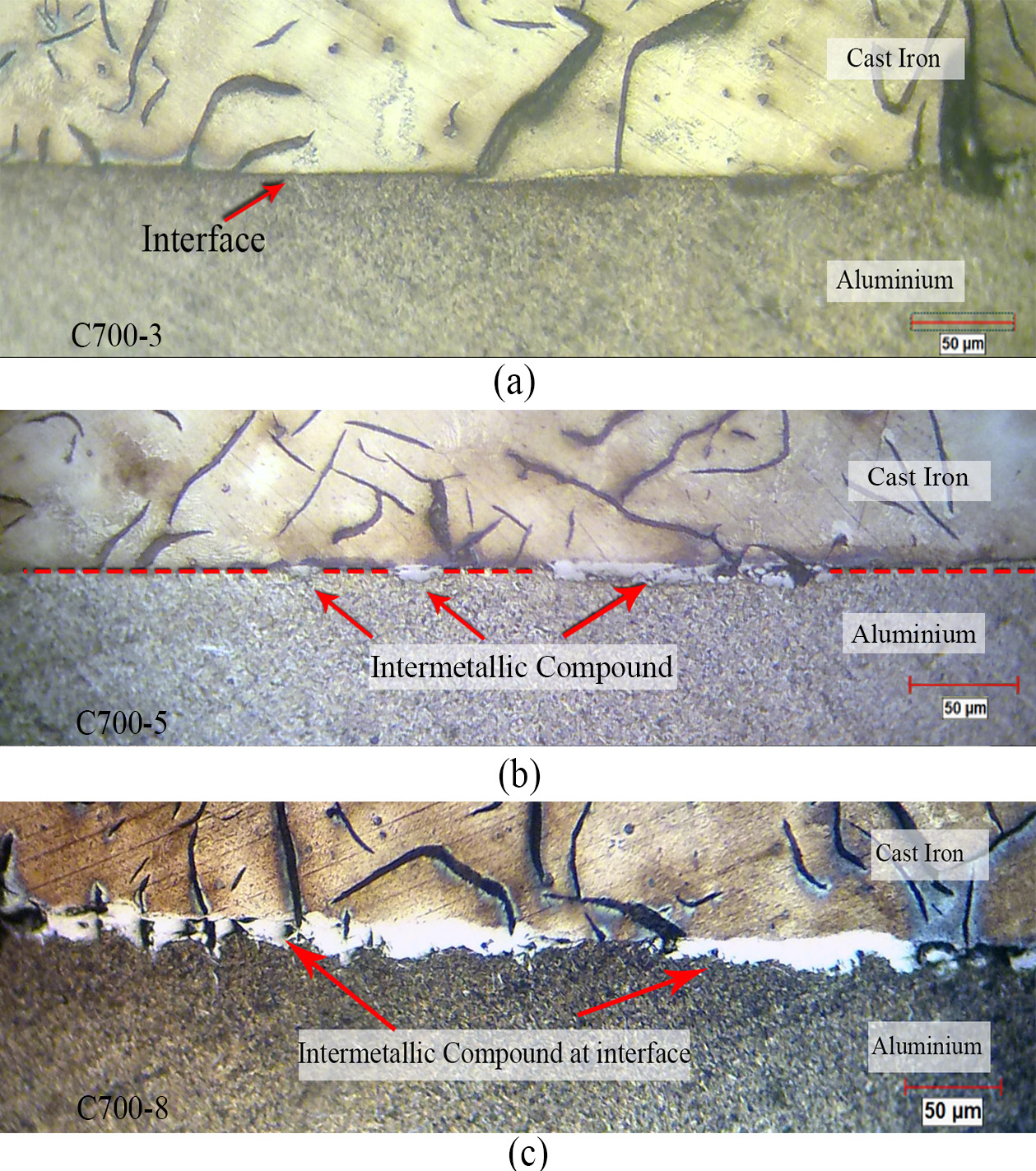

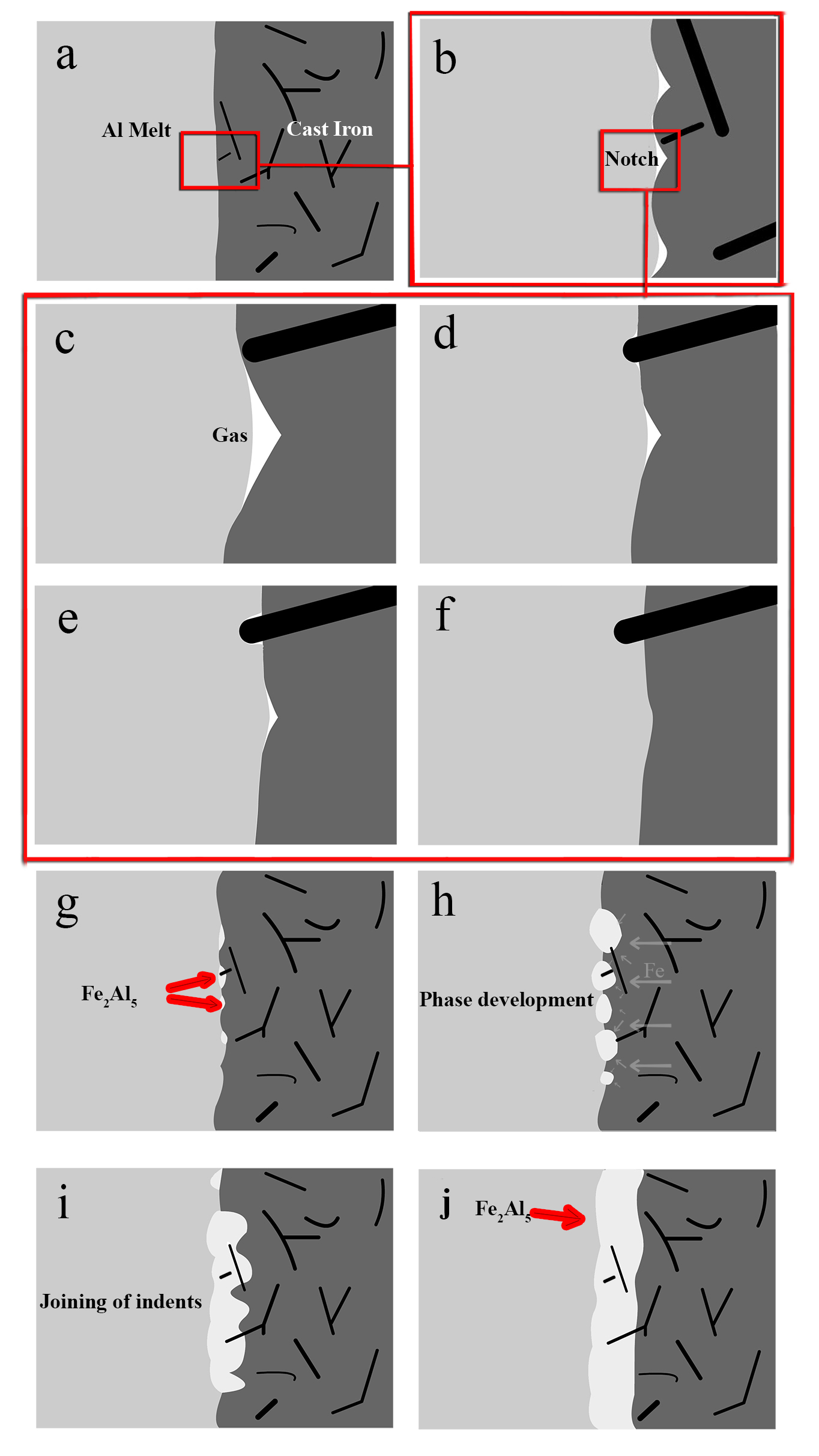

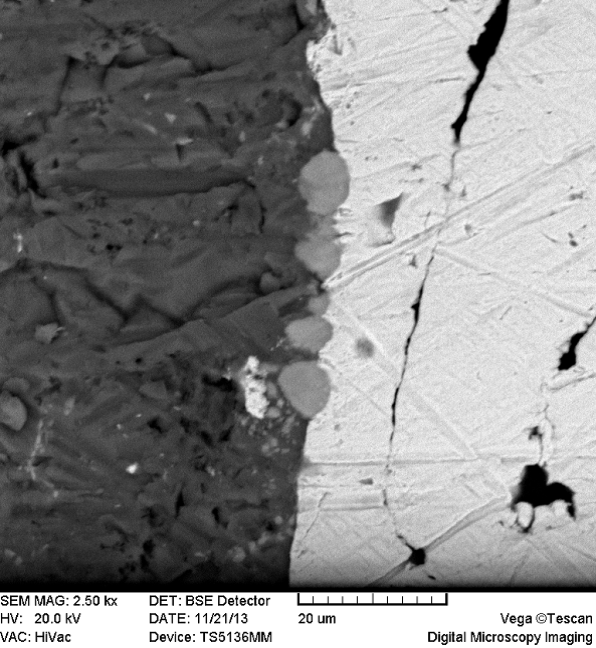

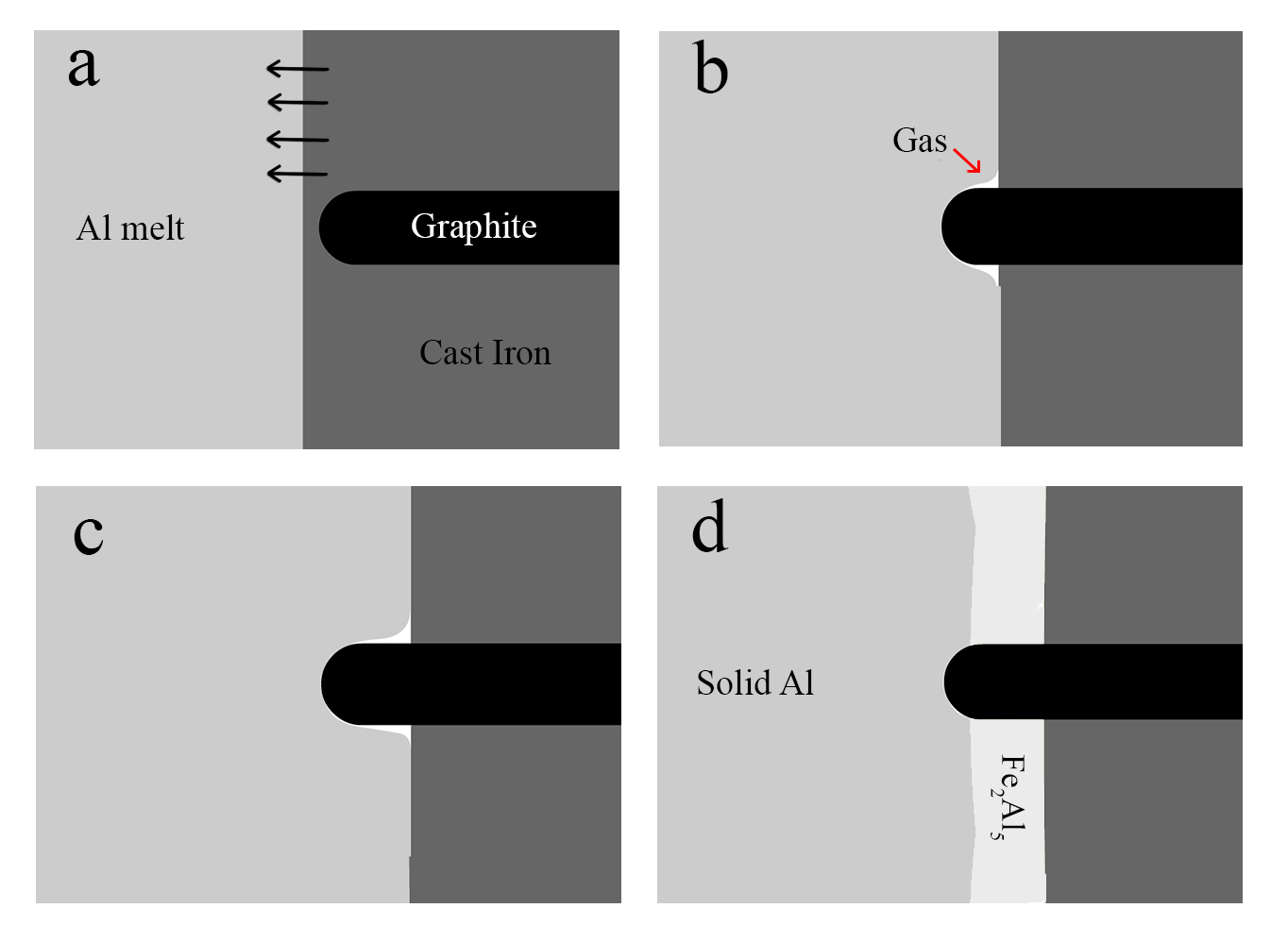

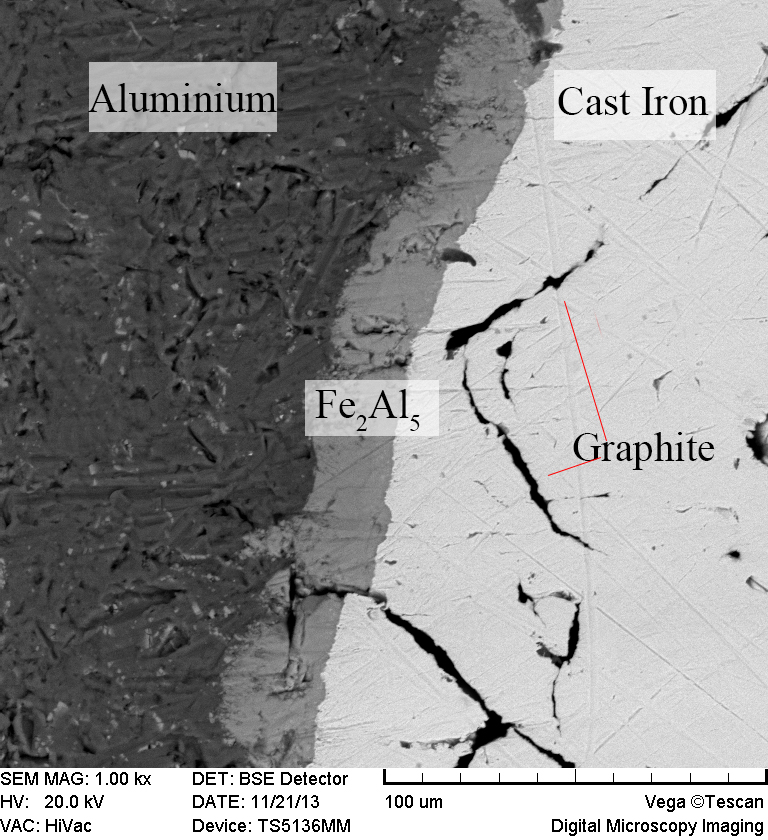

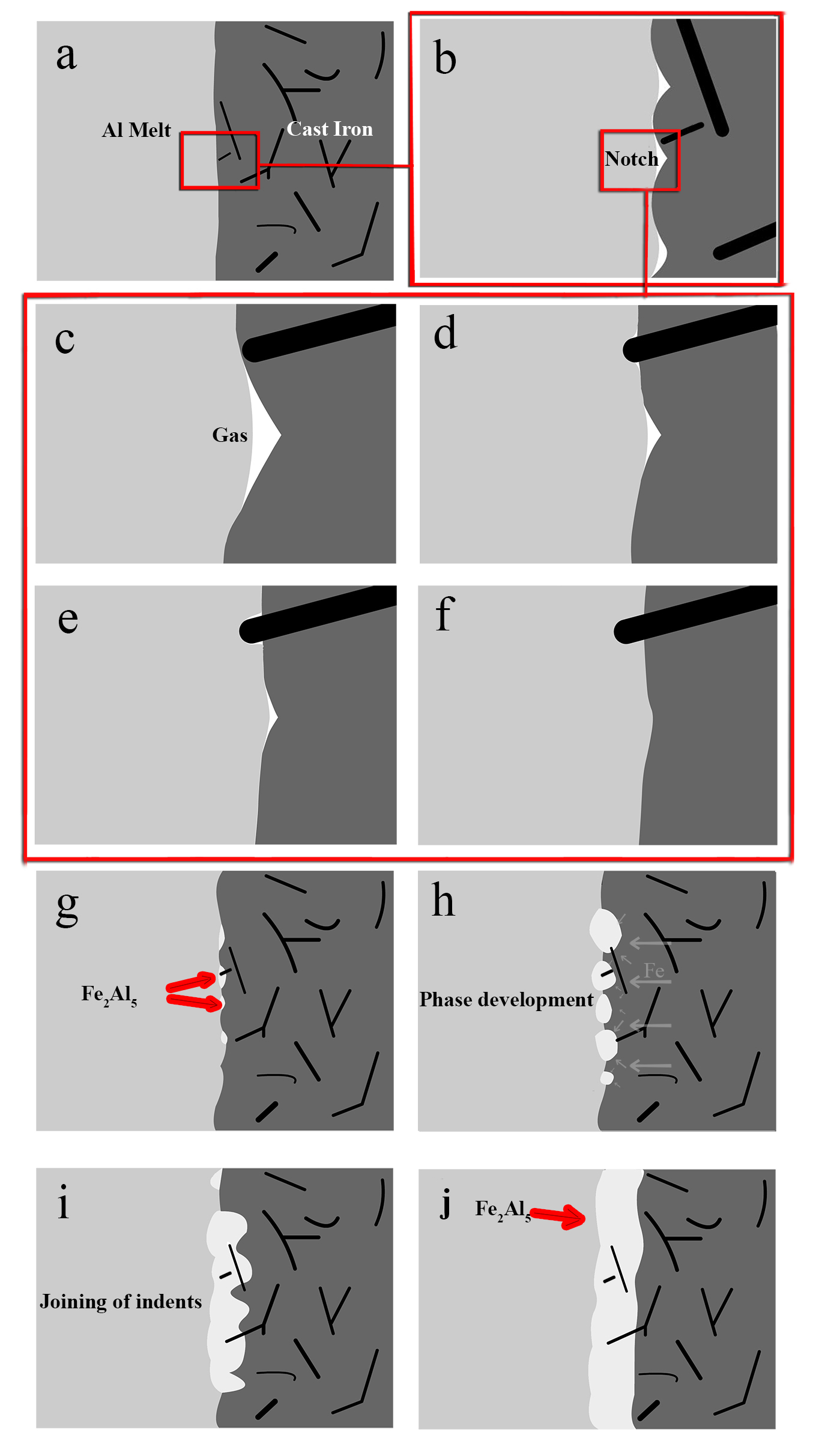

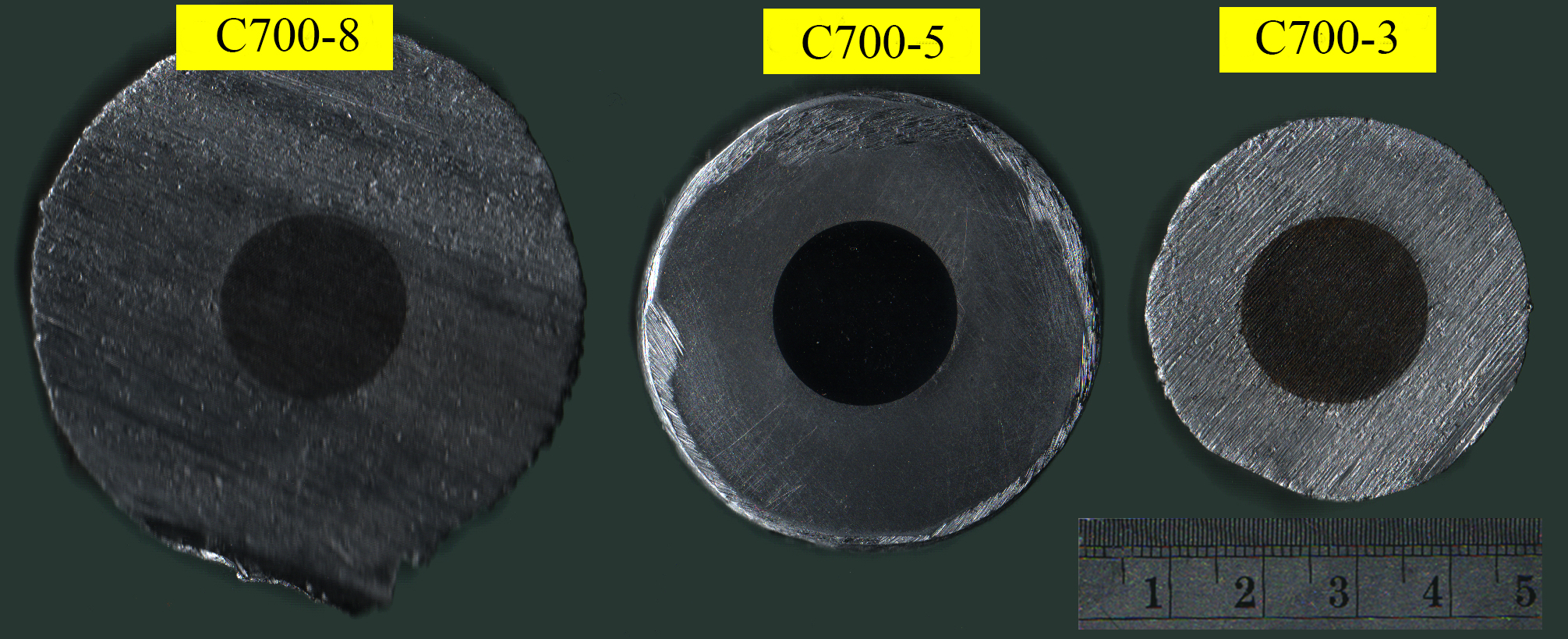

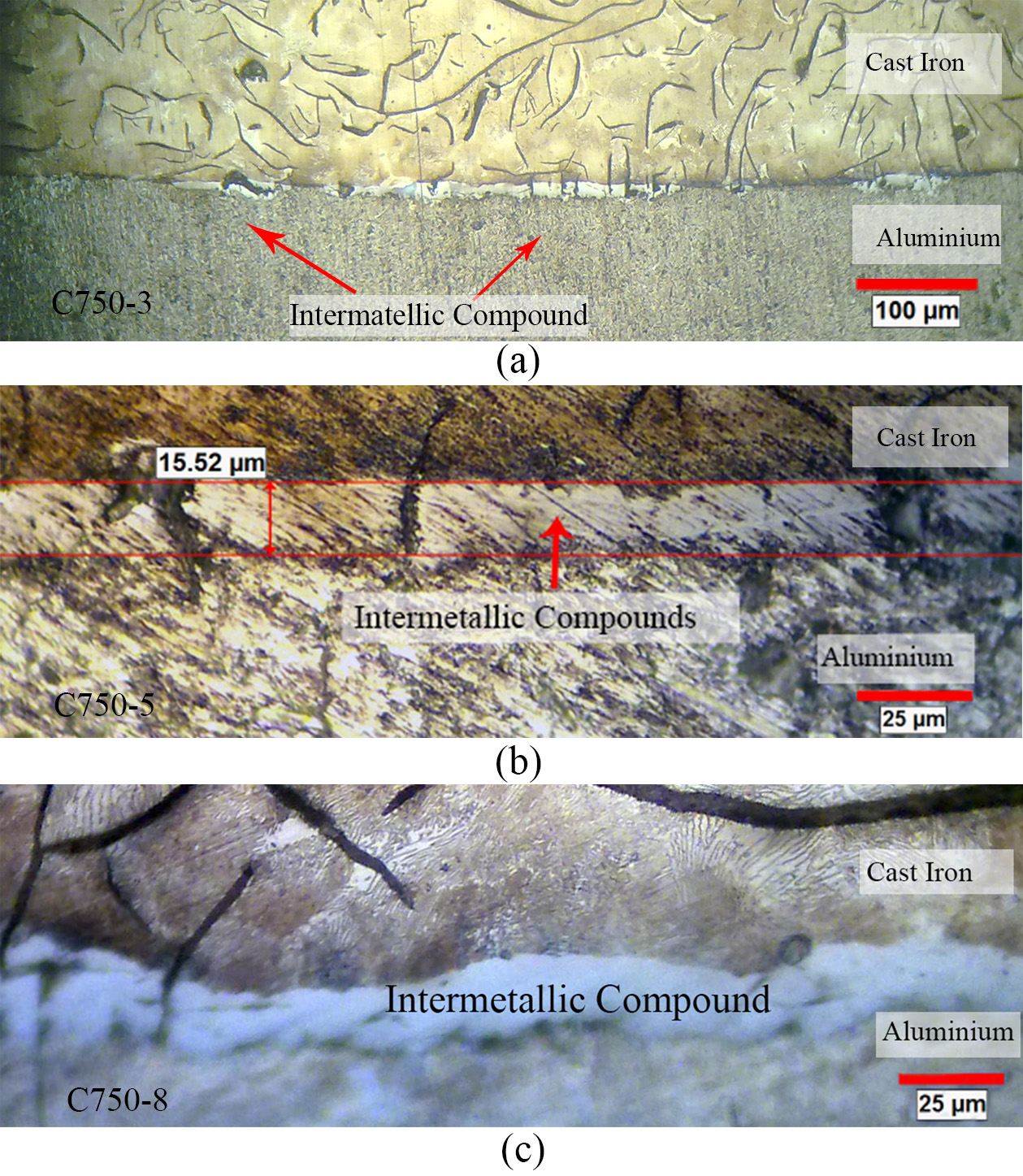

The interface characteristics of aluminum/cast iron bimetals produced by compound casting were investigated. Aluminum melt was poured into molds, at 700 ̊C and 750 ̊C, around cylindrical cast iron bars having melt-to-solid volume ratios (Vm/Vs) of 3, 5 and 8, respectively. Microscopic observations showed that a reaction layer may form at the interface. This layer is composed of Fe2Al5 intermetallic which has been formed initially at the notches of the insert’s surface after making contact with the molten metal. The thickness of the interaction layer varied from 5μm, for the sample produced at 700 ̊C and 3 Vm/Vs, up to 20μm for the sample poured at 750 ̊C and 8 Vm/Vs. Microstructural analysis showed that increasing of the temperature and the melt-to-solid (m/s) volume ratio leads to the formation of a thicker and more uniform intermetallic layer. Microhardness of the Fe2Al5 compound was measured 824 HV. A mechanism is suggested for the nucleation and growth of this intermetallic layer and also encapsulation of the flake graphite at the interface of two metals. It seems that the thermal and chemical situation at the interface of two metals, leads to an acceptable wettability of the graphite by molten aluminum.
References
M. Uthayakumar, G. Prabhakaran, S. Aravindan, J. V. Sivaprasad, IJPEM, 10 (2009) 7-13. DOI:10.1007/s12541-009-0002-7
G. Manikanadan, M. Uthayakumar, S. Aravindan, International Journal of Advanced Manufacturing Technology, 66 (2013) 711-720. DOI: 10.1007/s12541-009-0002-7
J. Lenny, Master of Engineering Thesis, Rensselaer Polytechnic Institute .2011, p.9.
G. Mahendran,V. Balasubramanian, T. Senthilvelan , J. Trans. Nonferrous Met. Soc. China, 20 (2010) 997-1005.
M. J. Fernandus, T. Senthilkumar, V. Balasubramanian, S. Rajakumar, J. Materials and Design, 33 (2012) 31-34. doi:10.1016/j.matdes.2011.06.022
N. Özdemir, M. Aksoy,N. Orhan, Journal of Materials Processing Technology, 141 (2003) 228-233. DOI: http://dx.doi.org/10.1016/S0924-0136(03)00154-7
J. Wang, Y. Li, P. Liu, J. Materials Letters, 57 (2003) 4323-4327. DOI: doi:10.1016/S0167-577X(03)00311-2
G. Xie, O. Ohashi, K. Wada, T. Ogawa, M. Song, K. Furuya, J. Material Science and Design, 428 (2006) 12-17. DOI: doi:10.1016/j.msea.2005.10.029
A. Çalik, J. Material Letters, 63 (2009) 2462-2465. doi:10.1016/j.matlet.2009.08.033
J. Shang, K. Wang, Q. Zhou, D. Zhang, J. Huang, J. Ge, J. Trans. Nonferrous Met. Soc. China., 22 (2012) 1961-1966. doi:10.1016/S1003-6326(11)61414-3
S. Kundu, S. Chatterjee, J. Materials Science and Engineering A, 527 (2010) 2714-2719. doi:10.1016/j.msea.2009.12.042
R.S. Timsit, J. Acta Metallurgica, 33 (1985) 97-104. doi:10.1016/0001-6160(85)90223-8
P. Liu, Q. Shi, W. Wang, X. Wang, Z. Zhang. J. Materials Letters, 62 (2008) 4106–4108. doi:10.1016/j.matlet.2008.06.004
R. Lee, C. Liu, Y. Chiou, H. Chen, Journal of Materials Processing Technology, 213 (2013) 69–74. doi:10.1016/j.jmatprotec.2012.07.014
A. Esmaeili, H.R. Zareie Rajani, M. Sharbati, M.K. Besharati Givi, M. Shamanian, J. Intermetallics, 19 (2011) 1711-1719. doi:10.1016/j.intermet.2011.07.006
P. Xue, D.R. Ni, D. Wang, B.L. Xiao, Z.Y. Ma, J. Materials Science and Engineering A, 528 (2011) 4683–4689. doi:10.1016/j.msea.2011.02.067
A. Esmaeili, M. K. Besharati Givi, H.R. Zareie Ranjani, J. Materials Science and Engineering A, 528 (2011) 7093-7102. doi:10.1016/j.msea.2011.06.004
P. Venkateswaran, A.P. Reynolds, J. Materials Science and Engineering A, 545 (2012) 26-36. doi:10.1016/j.msea.2012.02.069
Z. Zhang, H.W. Zhang, J. Materials and Design, 30 (2009) 900–907. doi:10.1016/j.matdes.2008.05.029
H. Chen, A.J. Pinkerton, L. Li, Z. Liu, A.T. Misty, J. Materials and Design, 32 (2011) 495–504. doi:10.1016/j.matdes.2010.08.034
G. Padmanaban, V. Balasubramanian, J. Optics & LaserTechnology, 42 (2011) 1253–1260. doi:10.1016/j.optlastec.2010.03.019
X. Qi, G. Song, J. Material and Design, 31 (2010) 605-609. doi:10.1016/j.matdes.2009.06.043
W. Dai, S. Xue, J. Lou, Y. Lou, Sh. Wang, Trans. Nonferrous Met. Soc. China., 22 (2012) 30-35. doi:10.1016/S1003-6326(11)61135-7
L. Peng, Yajiang, W. Juan, J. Jishi, J. Materials research bulletin, 38 (2003) 1493-1499. doi:10.1016/S0025-5408(03)00176-4
L. Liming, W. Shengxi, Z. Limin, J. Materials Science and Engineering A, 476 (2008) 206–209. doi:10.1016/j.msea.2007.04.089
Z. Xu, J. Yan, B. Zhang, X. Kong, S. Yang, J. Material Science and Engineering, 415 (2006) 80-86. doi:10.1016/j.msea.2005.09.068
A. Durgutlu, B. Gülenç, F. Findik, J. Materials and Design, 26 (2005) 497-507. doi:10.1016/j.matdes.2004.07.021
J.L. Song, H. Liu, S.B. Lin, C.L. Yang, C.G. Ma, J. Materials Science and Engineering A, 509 (2009) 31–40. doi:10.1016/j.msea.2009.02.036
E. Hajjari, M. Divandari, S.H. Razavi, T. Homma, S. Kamado, Journal of Intermetallic, 23 (2012) 182-186. doi:10.1016/j.intermet.2011.12.001
H.R. Zare, M. Divandari, H.Arabi, J. Materials Science and Technology, 29 (2013) 190-196. DOI: http://dx.doi.org/10.1179/1743284712Y.0000000096
K.J.M. Papis, J.F. Loeffler, P.J. Uggowitzer, J. Science in China Series E: Technological Sciences, 52 (2009) 46-51. DOI: 10.1007/s11431-008-0345-9
K.J.M. Papis, B. Halstedr, J.F. Loffler, P.J. Uggowitzer, J. Acta Materiala, 56 (2008) 3036-3043. doi:10.1016/j.actamat.2008.02.042
K.J.M. Papis, J.F. Loeffler, P.J. Uggowitzer, J. Materials Science and Engineering A, 527 (2010) 2274–2279. doi:10.1016/j.msea.2009.11.066
M. Sacerdote-peronnet, E. Guiot, F. Bosselet, O. Dezellus, D. Rouby, J.C. Viala, J. Material Science and Engineering, 445 (2007) 296–301. doi:10.1016/j.msea.2006.09.033
J. Pstrus, P. Fima, T. Gancarz, JMEPEG., 21 (2012) 606-613. DOI: 10.1007/s11665-012-0174-7
A. Akdemir, R. Kuş, M. Şimşir, J. Material Science and Engineering A, 528 (2011) 3897–3904. doi:10.1016/j.msea.2011.01.107
E. Hajjari, M. Divandari, J. Material and Design, 29 (2008) 1685-1689. doi:10.1016/j.matdes.2008.04.012
K. Keşlioğlu, N. Maraşlı, J. Materials Science and Engineering A, 369 (2004) 294-301. doi:10.1016/j.msea.2003.11.033
M. Akbarifar, M. Divandari, International Journal of Metalcasting, 10 (2016). doi:10.1007/s40962-016-0101-z
A. Dorri Moghadam, E. Omrani, P. L. Menezes, p. K. Rohatgi, Composites part B, 77 (2015) 402-420. doi:10.1016/j.compositesb.2015.03.014
E. Omrani, A. Dorri Moghadam, P. L. Menezes, P. K. Rohatgi, International Journal of Advanced Manufacturing Technology, 83 (2016) 325-346. doi:10.1007/s00170-015-7528-x
H. Baker, ASM Handbook, Alloy phase diagram, 10th ed. Vol3 (1993) 294-295
U.B. Kuruveri, P. Huilgol, J. Joseph, J. ISRN Metallurgy, (2013) 1-6 http://dx.doi.org/10.1155/2013/191723
T. Shih, Sh. Tu, J. Material science and engineering A, 454 (2007) 349-356. doi:10.1016/j.msea.2006.11.017
H.R. Shahverdi, M.R. Ghomashchi , S. Shabestari, J. Hejazi, Journal of material processing technology, 124 (2002) 345-352. doi:10.1016/S0924-0136(02)00225-X
W. Deqing, Sh. Ziyuan, Z. Longjing, J. Applied surface sciences, 214 (2003) 304-311. doi:10.1016/S0169-4332(03)00505-1
W. Cheng, Ch. Wang, J. Surface and coatings technology, 204 (2009) 824-828. doi:10.1016/j.surfcoat.2009.09.061
F. Yin, M. Zhao, Y. Liu, W. Han, Z. Li, J. Trans. Nonferrous Met. Soc. China., 23 (2013) 556-561. doi:10.1016/S1003-6326(13)62499-1
M. Yousaf, J. Iqbal, M. Ajmal, J. Materials Characterization, 62 (2011) 517-525. doi:10.1016/j.matchar.2011.03.004
M. Dutta, S.B. Singh, J. Scripta Materialia, 60 (2009) 643-646. doi:10.1016/j.scriptamat.2008.12.033
