Directional solidification of Zn–Al–Cu eutectic alloy by the vertical Bridgman method

  • Uğur Büyük Department of Science Education, Faculty of Education, Erciyes University, Kayseri, Turkey
  • Sevda ENGİN Dumlupınar University,Department of Energy Systems Engineering, Faculty of Technology, Kütahya, Turkey
  • Necmettin MARAŞLI Department of Metallurgical and Materials Engineering, Faculty of Chemical and Metallurgical Engineering, Yıldız Technical University, İstanbul, Turkey

Abstract

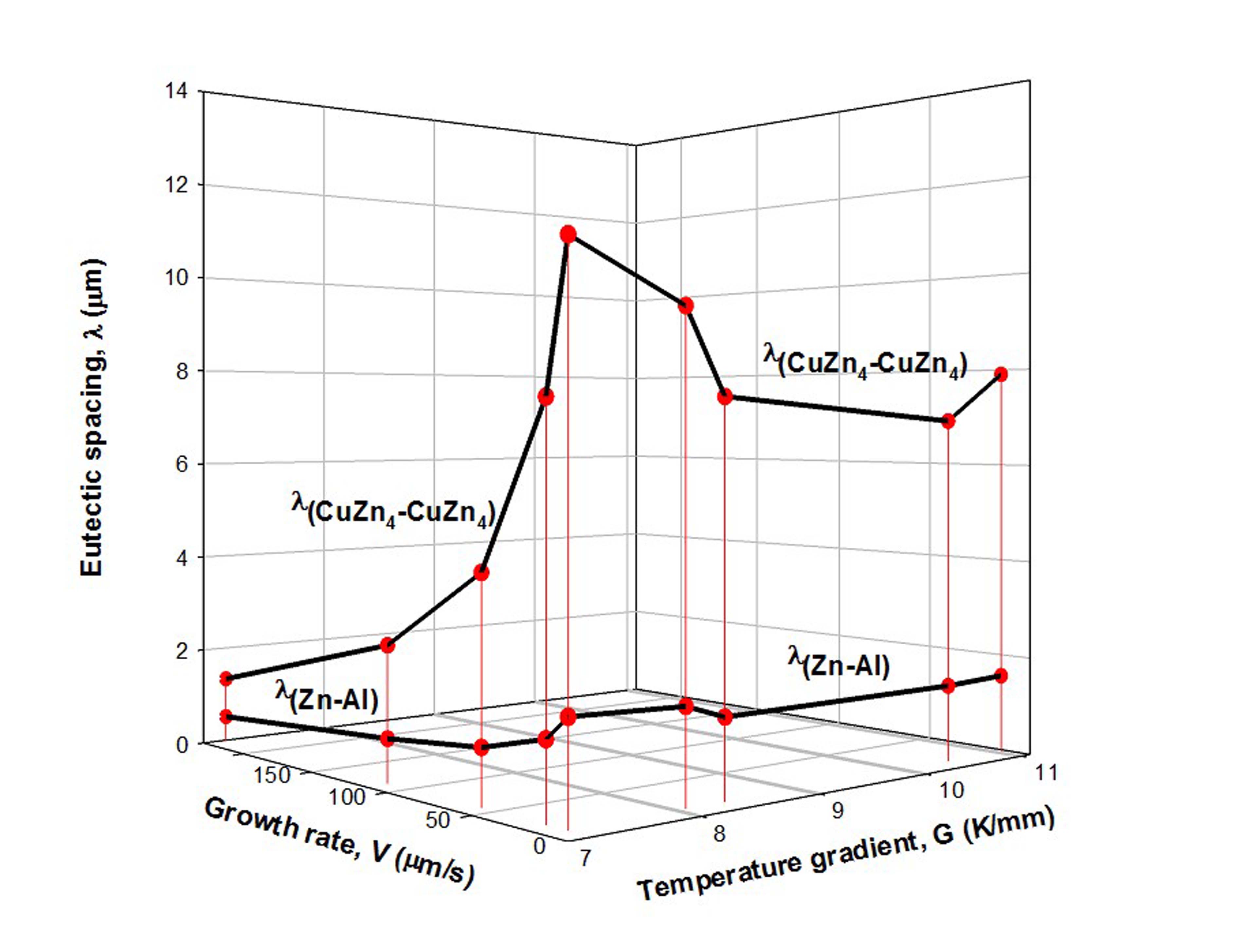

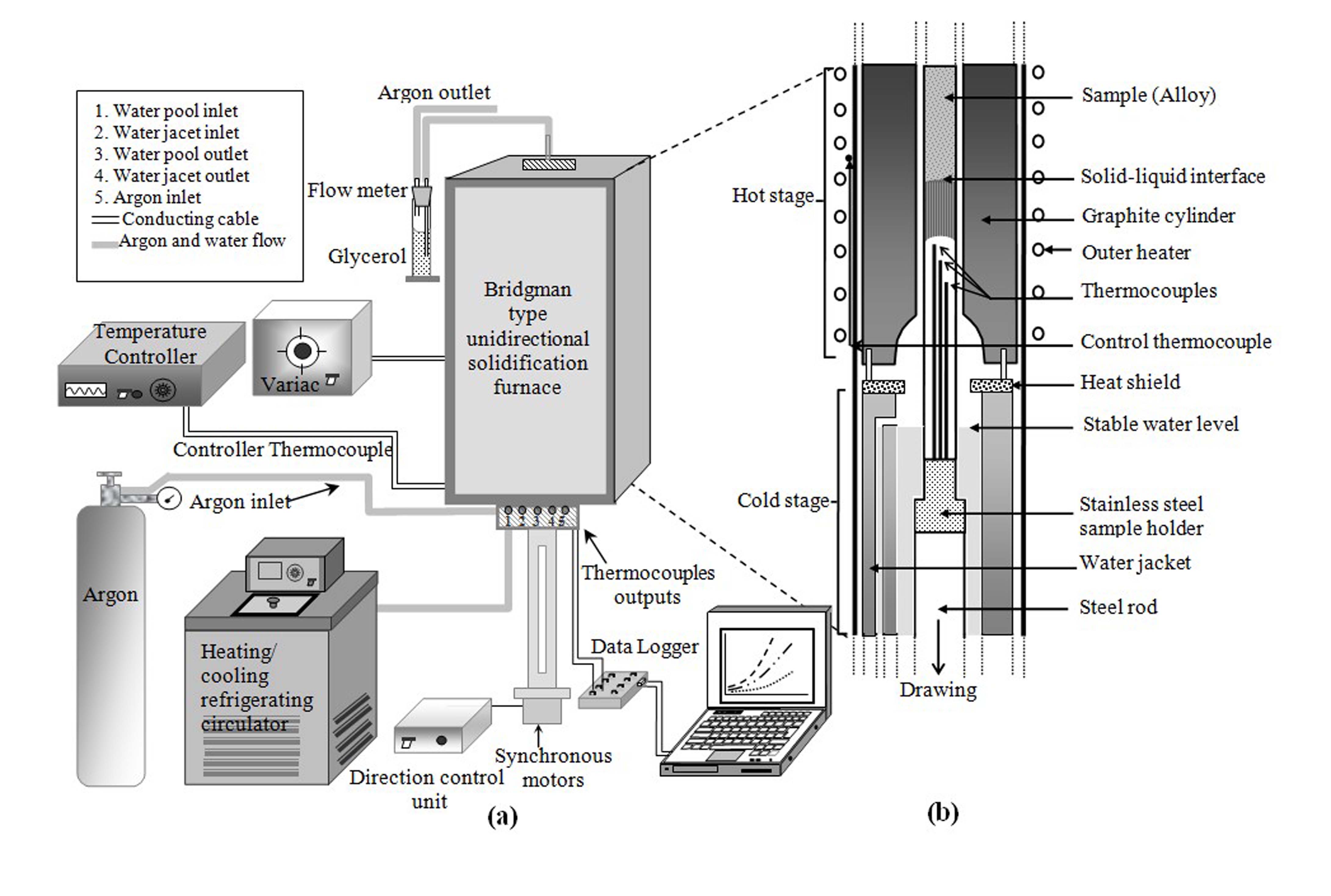

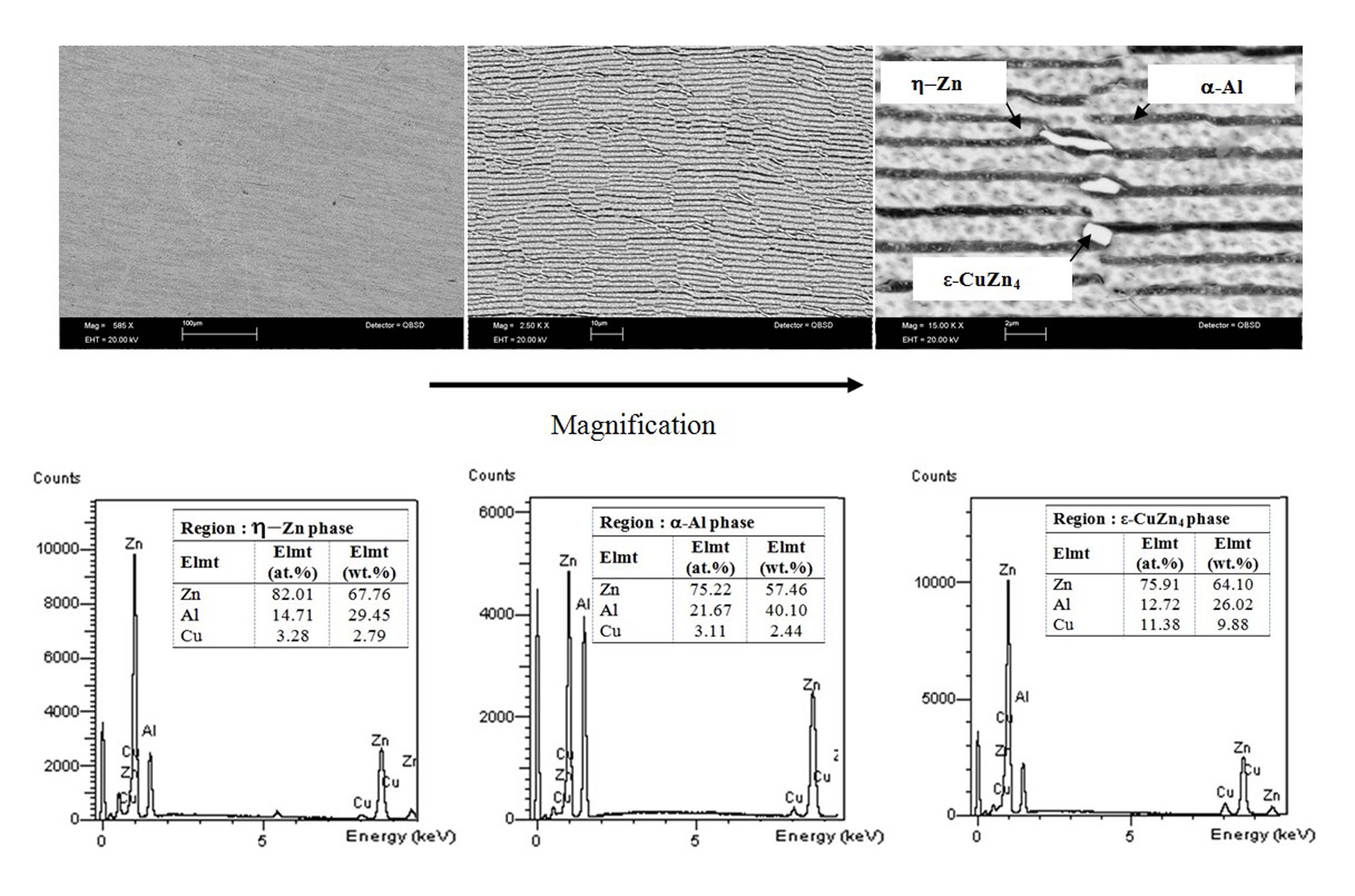

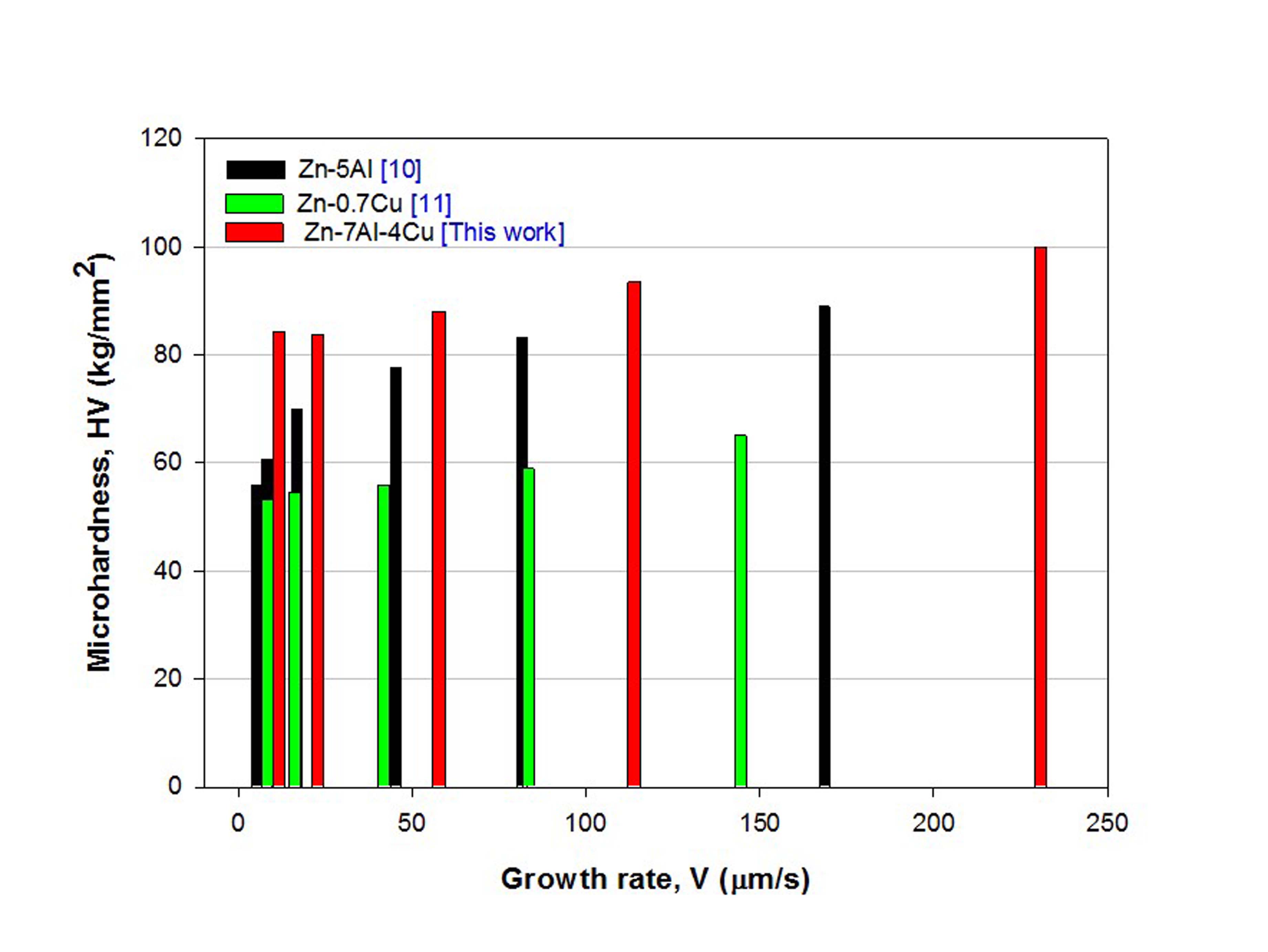

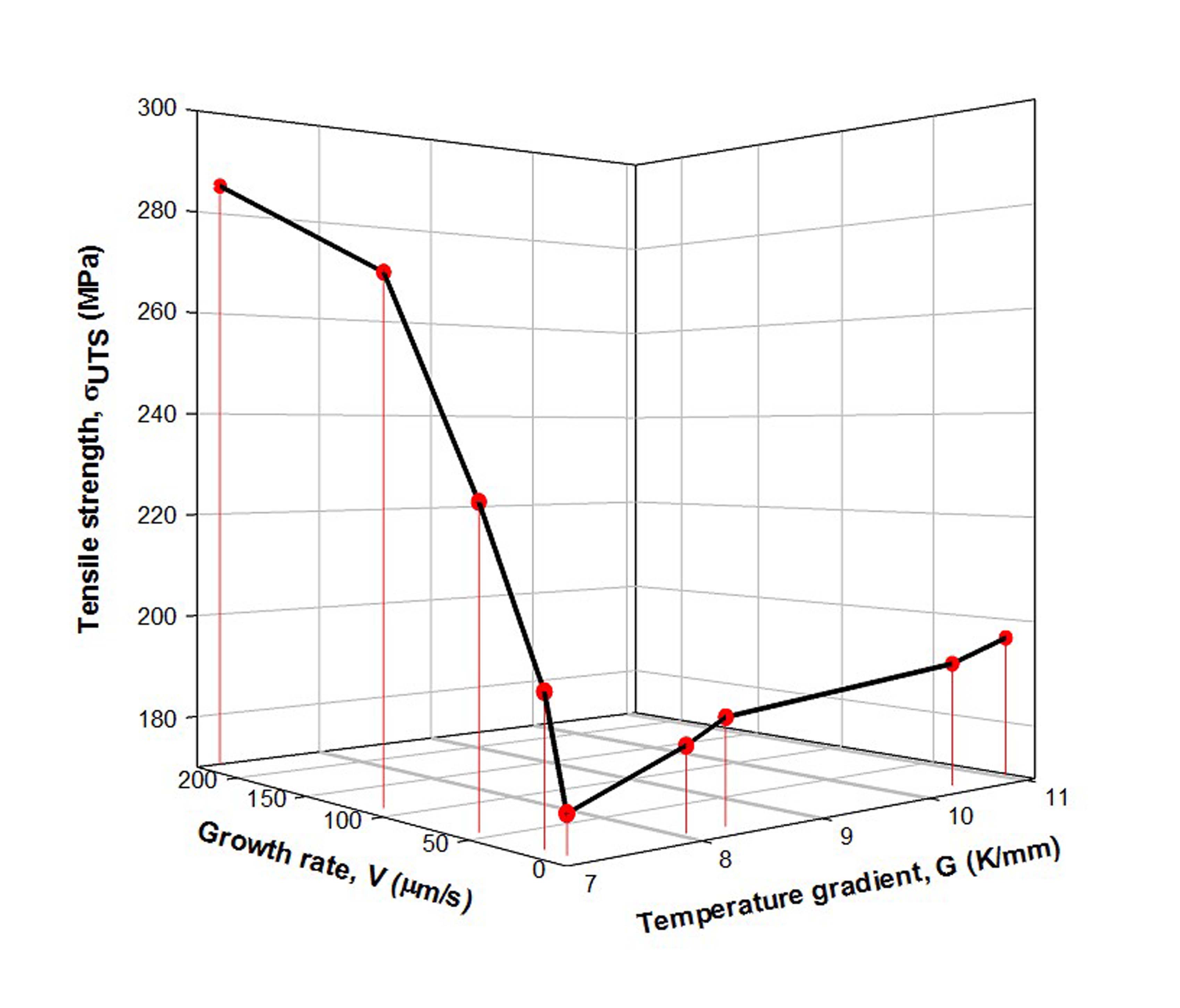

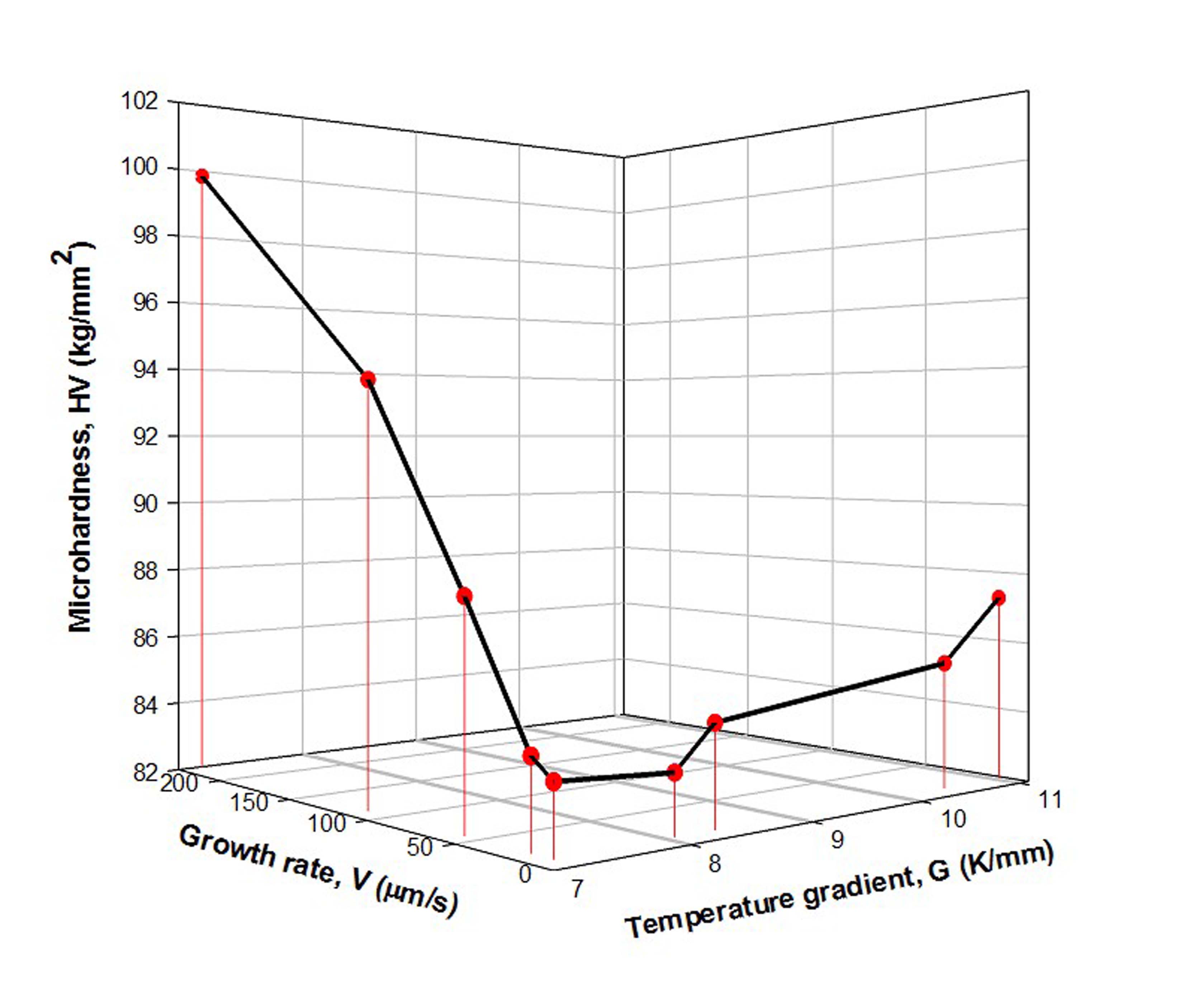

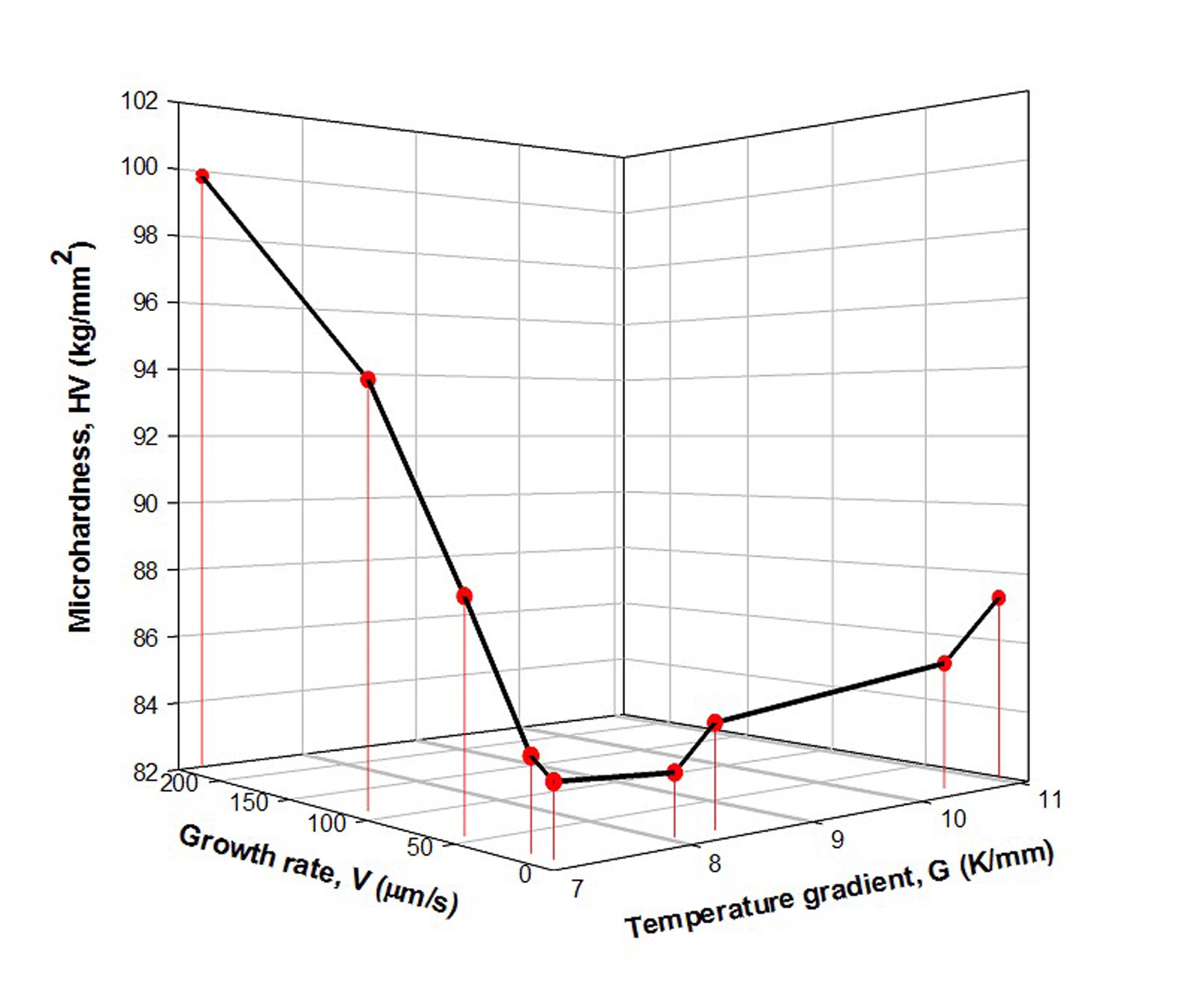

In the present work, the effect of growth rate and temperature gradient on microstructure and mechanical properties of Zn–7wt.%Al–4wt.%Cu eutectic alloy has been investigated. Alloys prepared under steady-state conditions by vacuumed hot filing furnace. Then, the alloys were directionally solidified upward with different growth rates (V=11.62–230.77 mm/s) at a constant temperature gradient (G=7.17 K/mm) and with different temperature gradients (G=7.17–11.04 K/mm) at a constant growth rate (V=11.62 mm/s) by a Bridgman furnace. The microstructures were observed to be lamellae of Zn, Al and broken lamellae CuZn4 phases from quenched samples. The values of eutectic spacing, microhardness and ultimate tensile strength of alloys were measured. The dependency of the microstructure and mechanical properties on growth rate and temperature gradient were investigated using regression analysis.

Author Biography

Sevda ENGİN, Dumlupınar University,Department of Energy Systems Engineering, Faculty of Technology, Kütahya, Turkey
Department of Energy Systems Engineering, Faculty of Technology, Kütahya, Turkey

References

D.A. Porter, K.E. Easterling, Phase transformations in metals and alloys, Second Edition, CRC Press, 1992, p.185.

T. Savaşkan, G. Pürçek and S. Murphy, Wear, 252 (2002) 693-703.

G. Pürçek, T. Savaşkan, T. Küçükömeroğlu and S. Murphy, Wear, 252 (2002) 894-901.

B.K. Prasad, A.K. Patwardhan and A.H. Yegneswaran, Can. Metall. Quart., 40(2) (2001) 193-210.

B.K. Prasad, Metall. Mater. Trans. A, 28A (1997) 809-815.

L.M. Zhang, M.L. Chen, C.K. Yan, J. Mater. Sci. Lett., 17 (1998) 1903-1905.

B.K. Prasad, A.K. Patwardhan, A.H. Yegneswaran, Metall. Mater. Trans., 27A (1996) 3513-3523.

B.K. Prasad, Mater. Charact., 44 (2000) 301-308.

B.K. Prasad, Metallkd Z., 88 (1997) 929-933.

S. Engin, U. Böyük, H. Kaya, N. Maraşlı, Int. J. Min. Met. Mater., 14(2) (2011) 659-664.

H. Kaya, U. Böyük, S. Engin, E. Çadırlı, N. Maraşlı, J. Electron. Mater., 39(3) (2010) 303-311.

H. Liang, Y.A. Chang, J. Phase Equilibria., 19(1) (1998) 25-37.

E. Çadırlı, M. Gündüz, J. Mater. Proceess. Tech., 97 (2000) 74-81.

M. Gündüz, H. Kaya, E. Çadırlı, A. Özmen, Mat. Sci. Eng. A, 369 (2004) 215-229.

A. Ourdjini, J. Liu, R. Elliott, Mater. Sci. Tech–Lond., 10 (1994) 312-318.

U. Böyük, N. Maraşlı. J. Alloy. Compd., 485 (2009) 264-269.

J. De Wilde, L. Froyen, S. Rex, Scripta Mater., 51 (2004) 533-538.

E. Çadırlı, U. Böyük, H. Kaya, N. Maraşlı, K. Keşlioğlu, S. Akbulut, Y. Ocak, J. Alloy Compd., 470 (2009) 150-156.

V.T. Witusiewicz, U. Hecht, S. Rex, M. Apel, Acta Mater., 53 (2005) 3663-3669.

U. Böyük, N. Maraşlı, H. Kaya, E. Çadırlı, K. Keşlioğlu, Appl. Phys. A–Mater., 95 (2009) 923-932.

U. Böyük, S. Engin, H. Kaya, N. Maraşlı, Mater. Charact., 61 (2010) 1260-1267.

U. Böyük, S. Engin, N. Maraşlı, Mater. Charact., 62(9) (2011) 844-851.

H. Kaya, U. Böyük, E. Çadırlı, Y. Ocak, S. Akbulut, K. Keslioglu, N. Maraşlı, Met. Mater. Int., 14(5) (2008) 575-582.

N. Maraşlı, U. Böyük, Mater. Chem. Phys., 119 (2010) 442-448.

F. Vnuk, M. Sahoo, R. Van De Merwe, R.W. Smith, J. Mater. Sci. 14 (1979) 975-982.

F. Vnuk, M. Sahoo, D. Baragor, R.W. Smith, J. Mater. Sci., 15 (1980) 2573-2583.

A.I. Telli, S.E. Kısakürek, Mat. Sci. and Tech., 4 (1988) 153-156.

E. Çadırlı, U. Böyük, H. Kaya, N. Maraşlı, K. Keşlioğlu, S. Akbulut, Y. Ocak, J. Alloy Compd., 470 (2009) 150-156.

U. Böyük, N. Maraşlı, J. Alloy Compd., 485 (2009) 264-269.

E. Çadırlı, U. Böyük, S. Engin, H. Kaya, N. Maraşlı, Kovove Mater., 47 (2009) 381-387

H. Kaya, E. Çadırlı, U. Böyük, N. Maraşlı, App. Surf. Sci., 255 (2008) 3071-3078.

U. Böyük, N. Maraşlı, Mater. Chem. Phys., 119 (2010) 442-448.

U. Böyük, Met. Mater. Int., 18(6) (2012) 933-938.

Published
2015/02/24
How to Cite
Büyük, U., ENGİN, S., & MARAŞLI, N. (2015). Directional solidification of Zn–Al–Cu eutectic alloy by the vertical Bridgman method. Journal of Mining and Metallurgy, Section B: Metallurgy, 51(1), 67. Retrieved from https://aseestant.ceon.rs/index.php/jmm/article/view/5616
Issue
Vol. 51 No. 1 (2015)
