Smelting Separation Behaviors and Mechanisms of High-Alumina Rich-Manganese Ore Obtained from Metallic Reduction and Magnetic Separation
Abstract

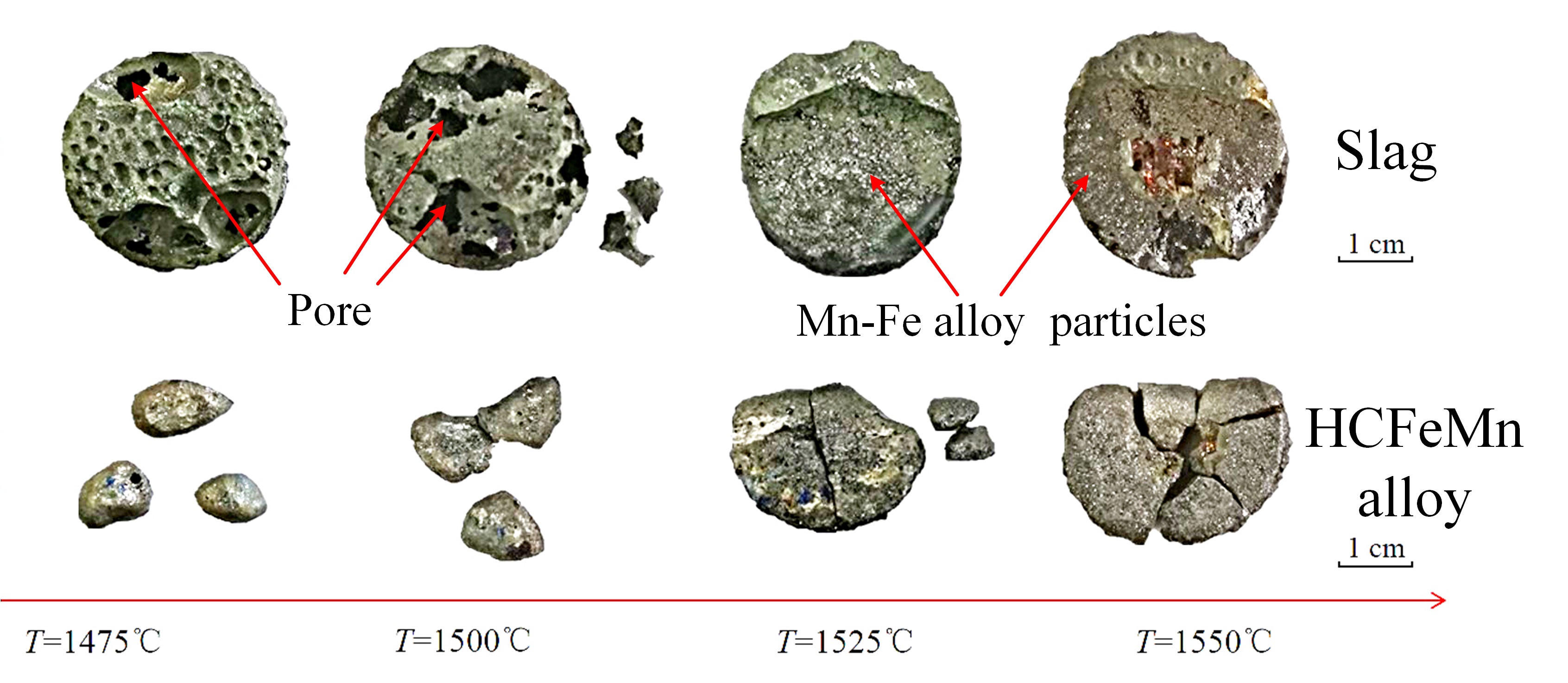

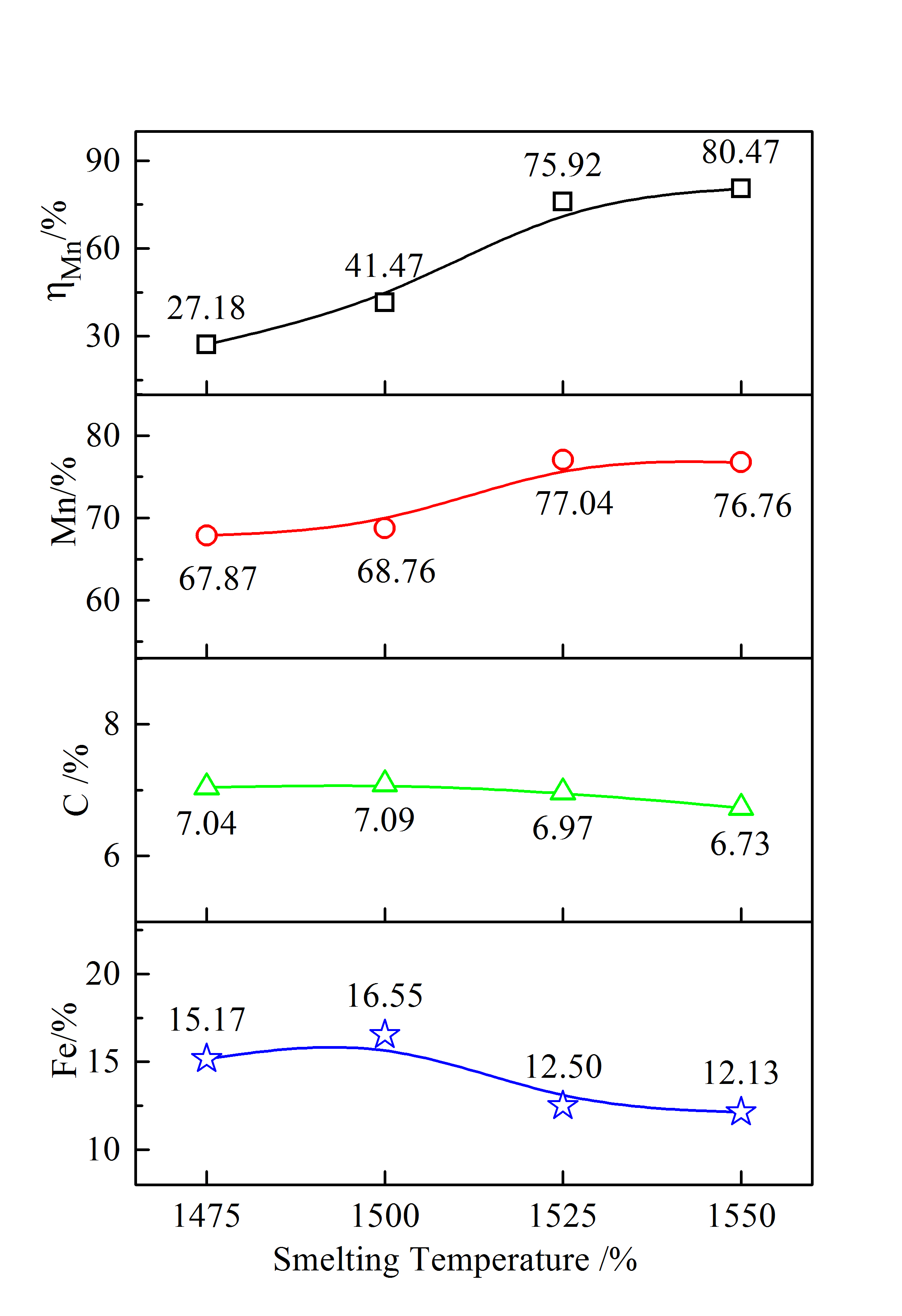

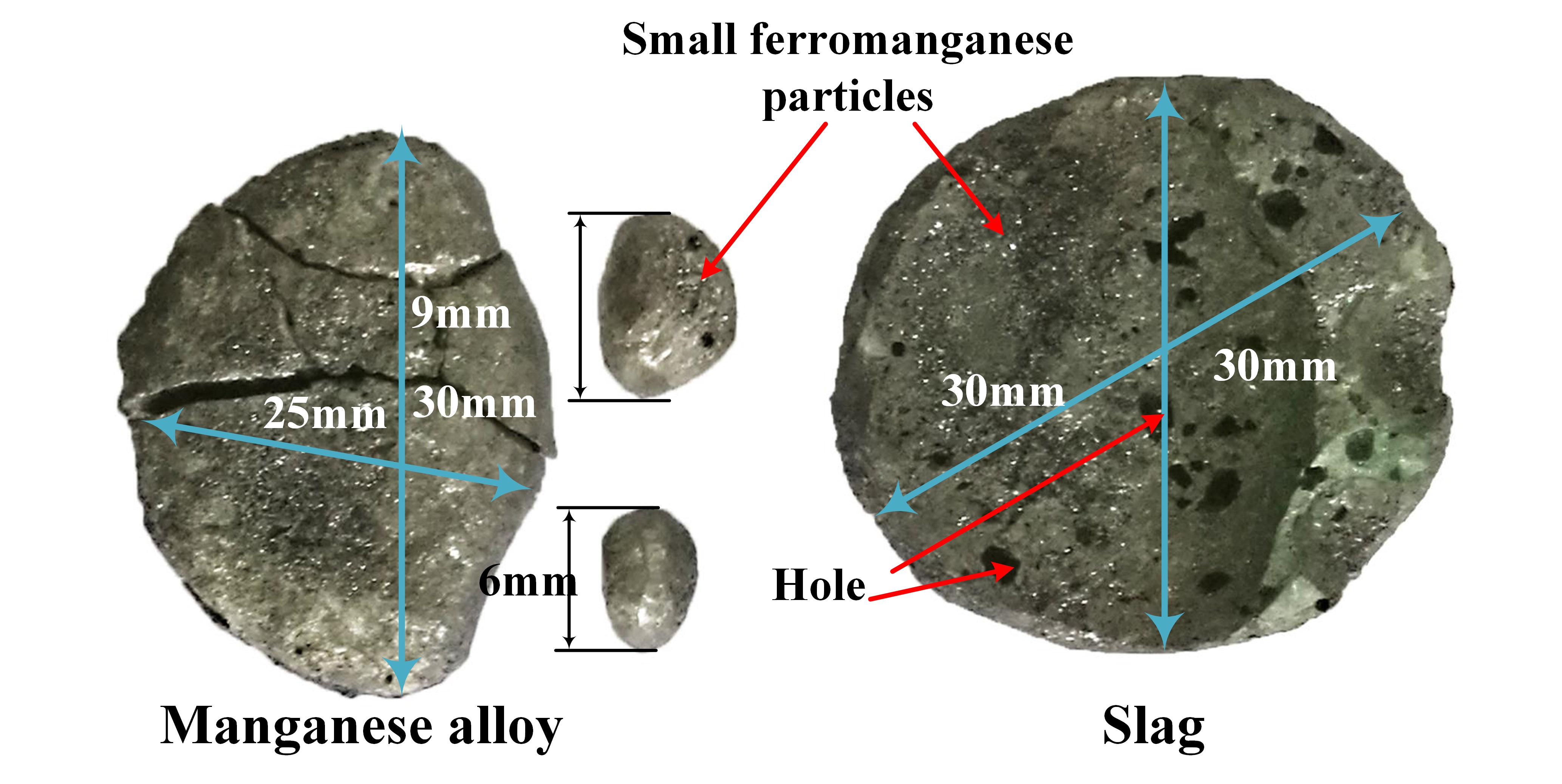

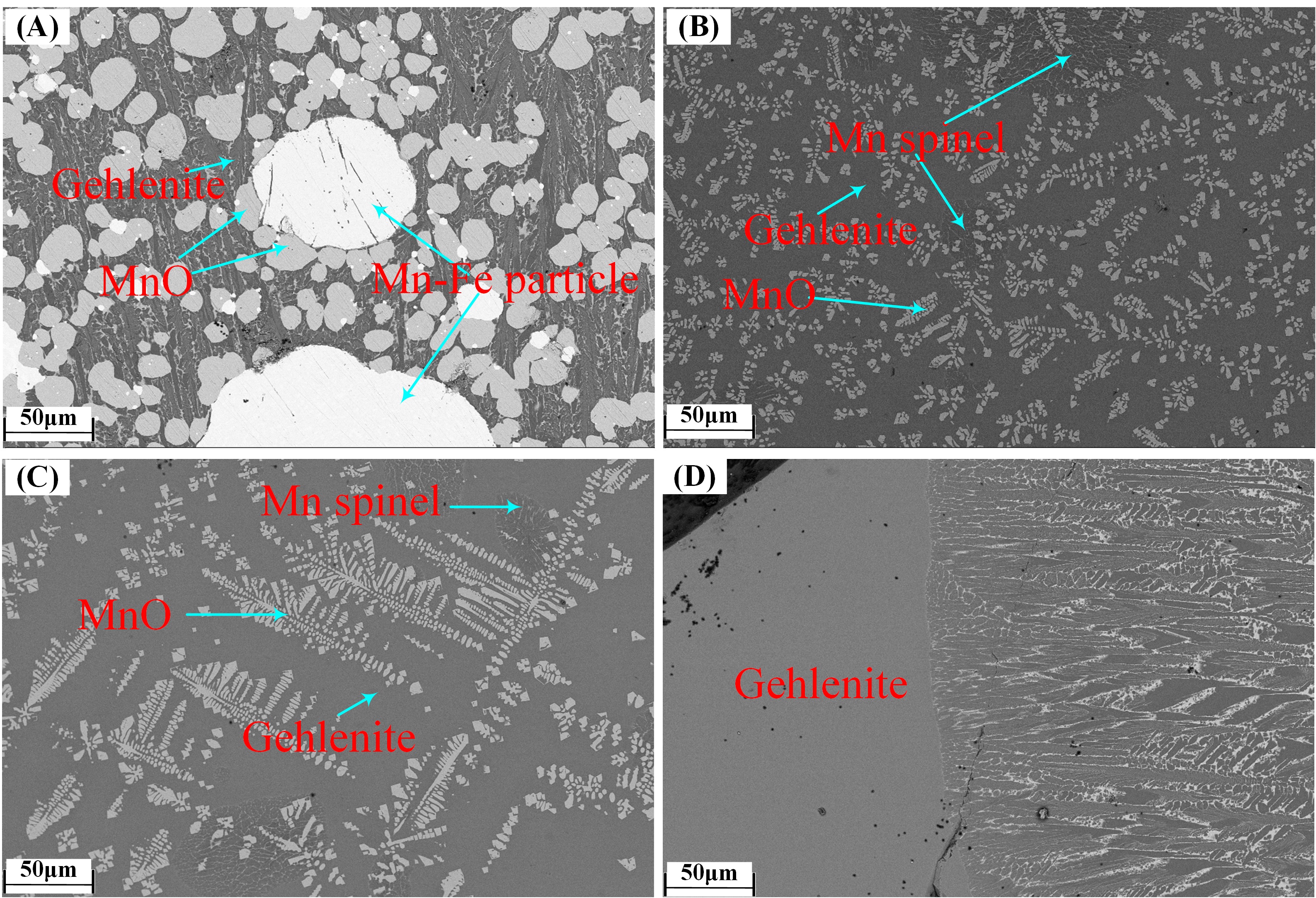

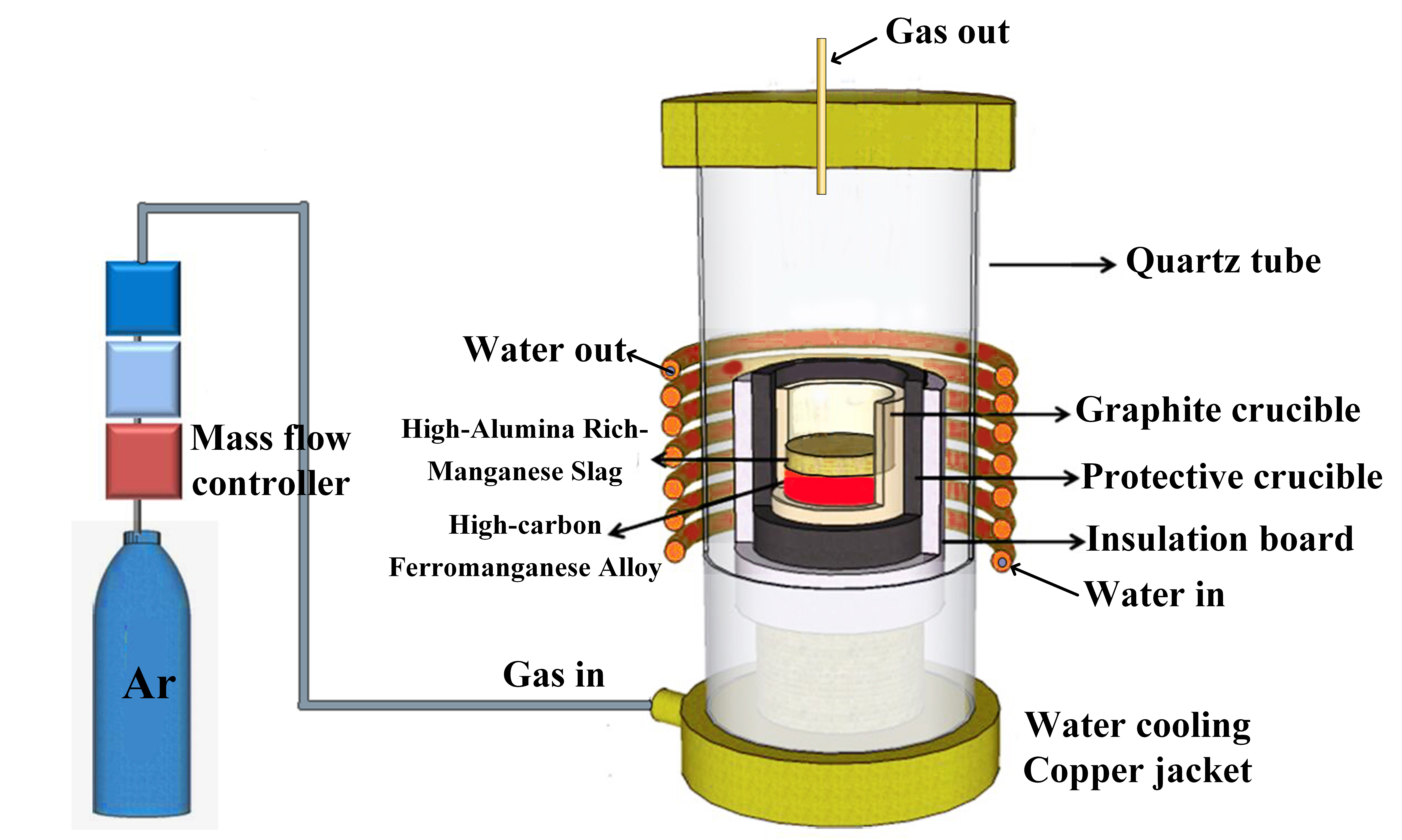

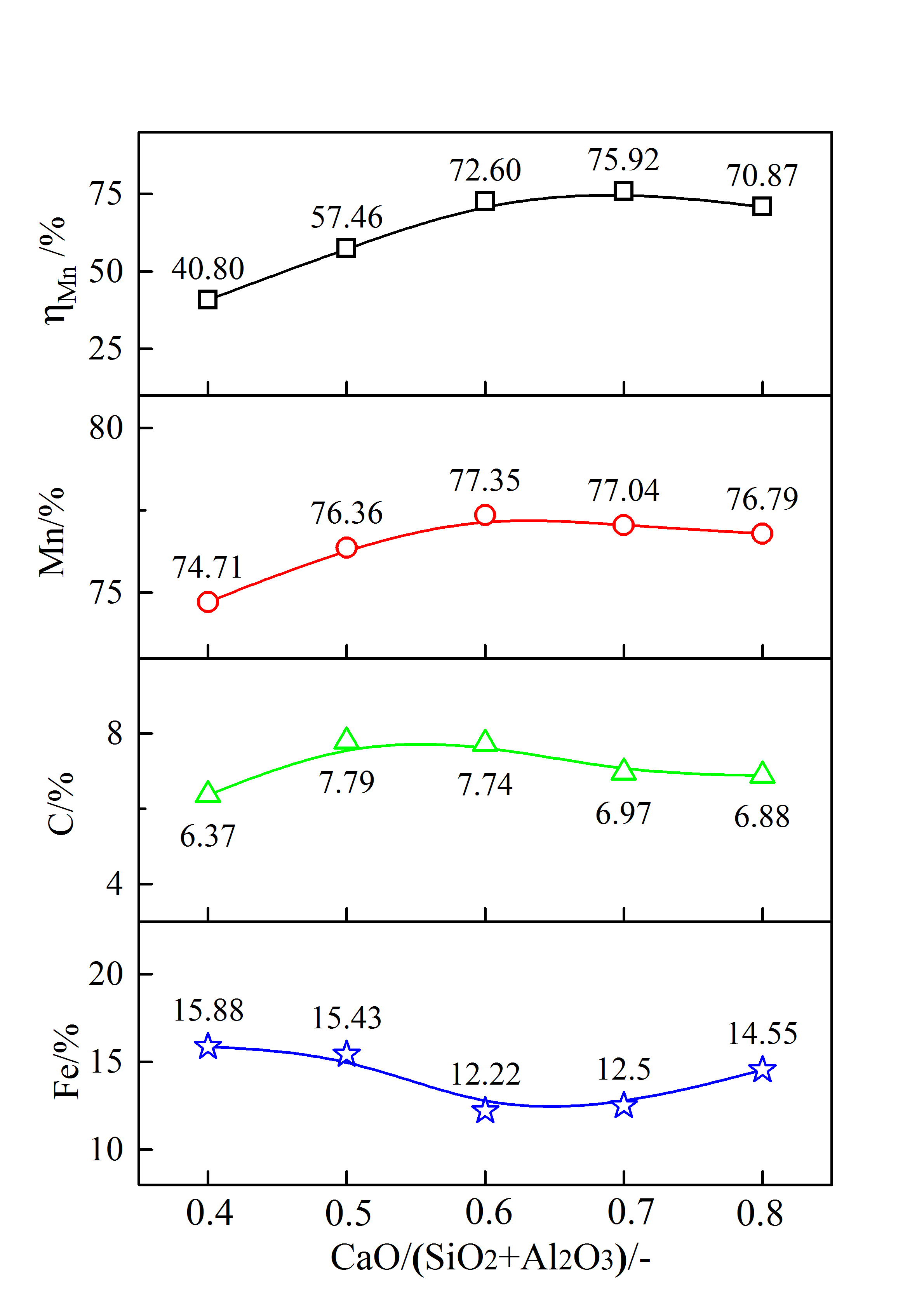

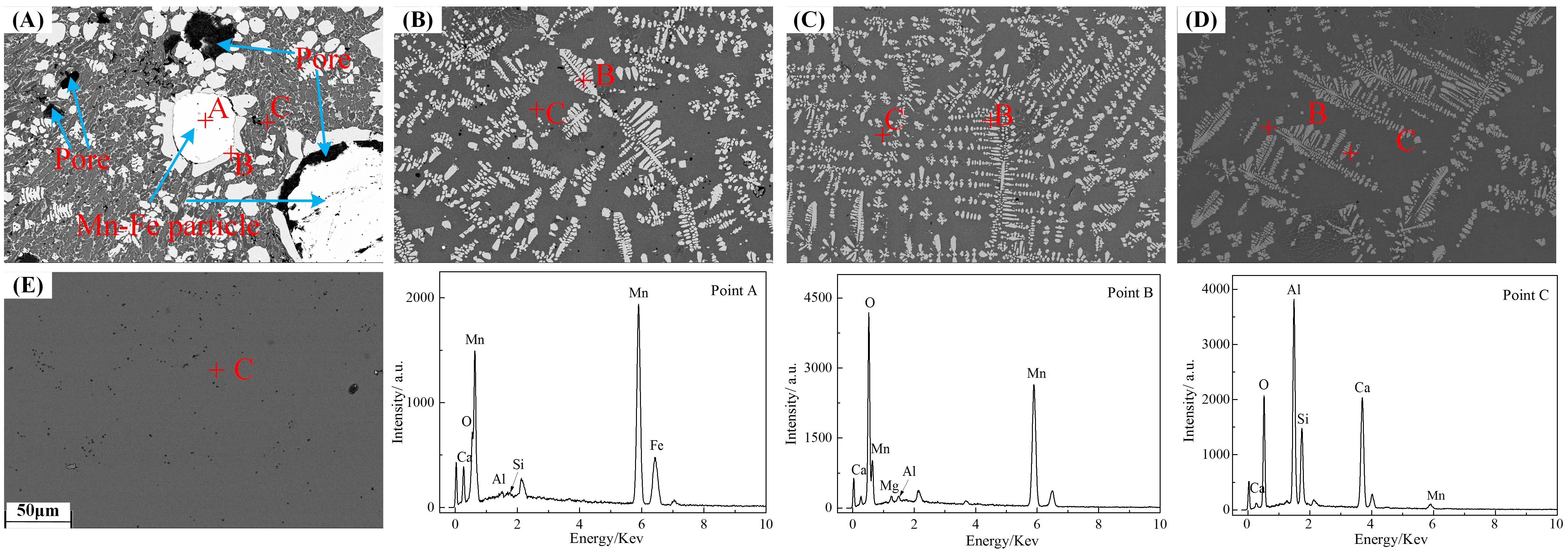

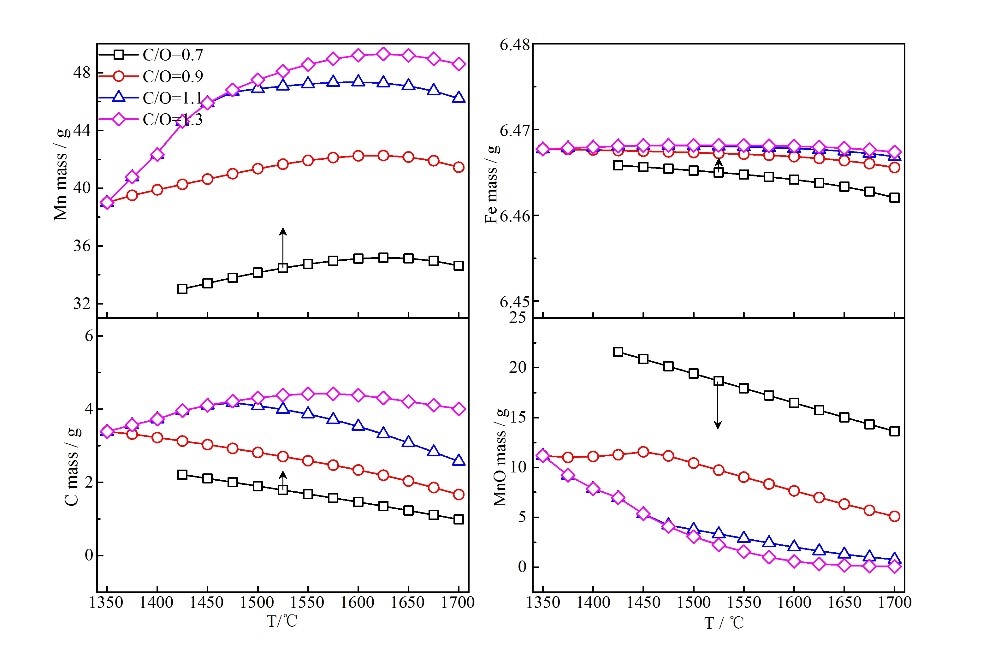

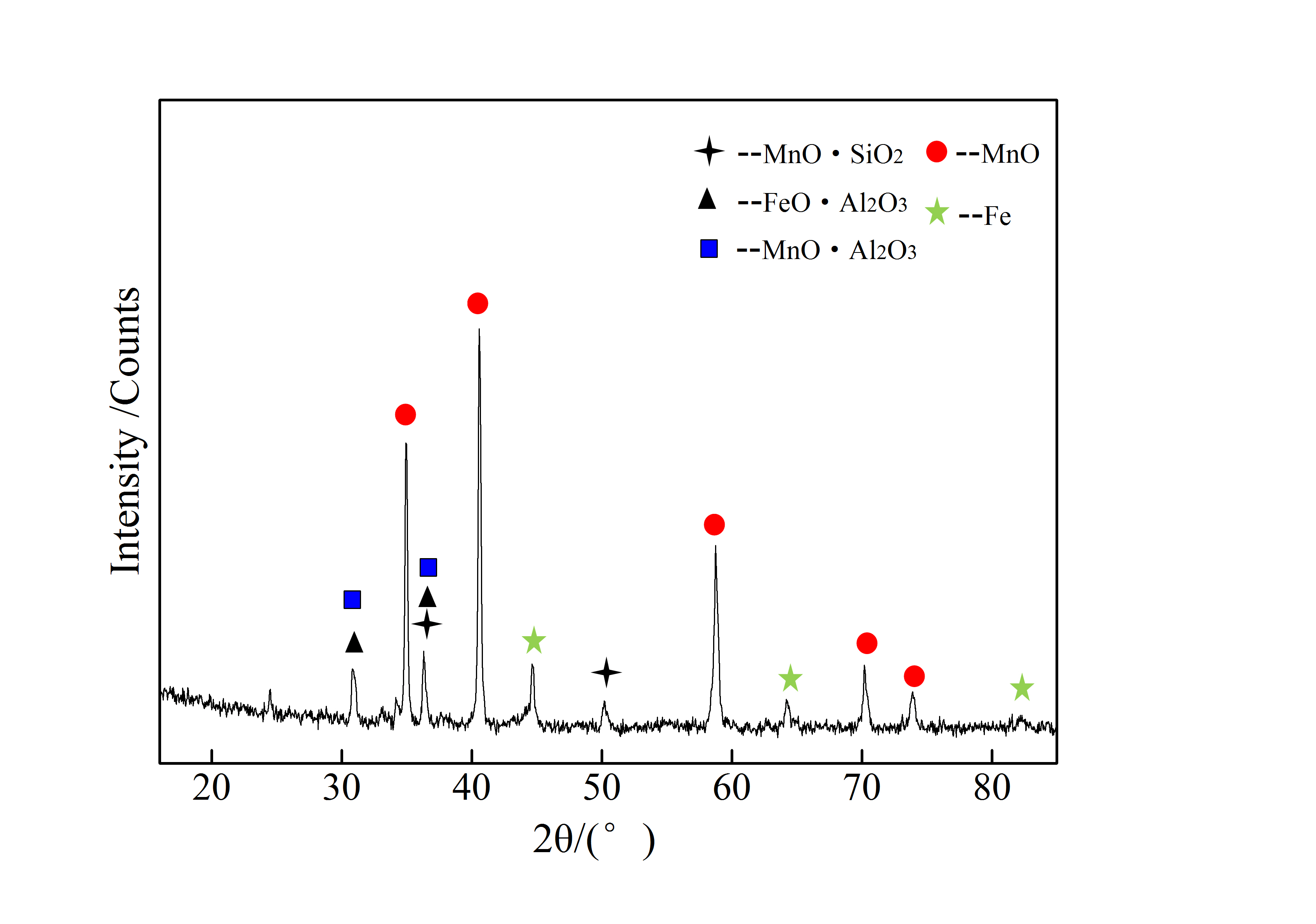

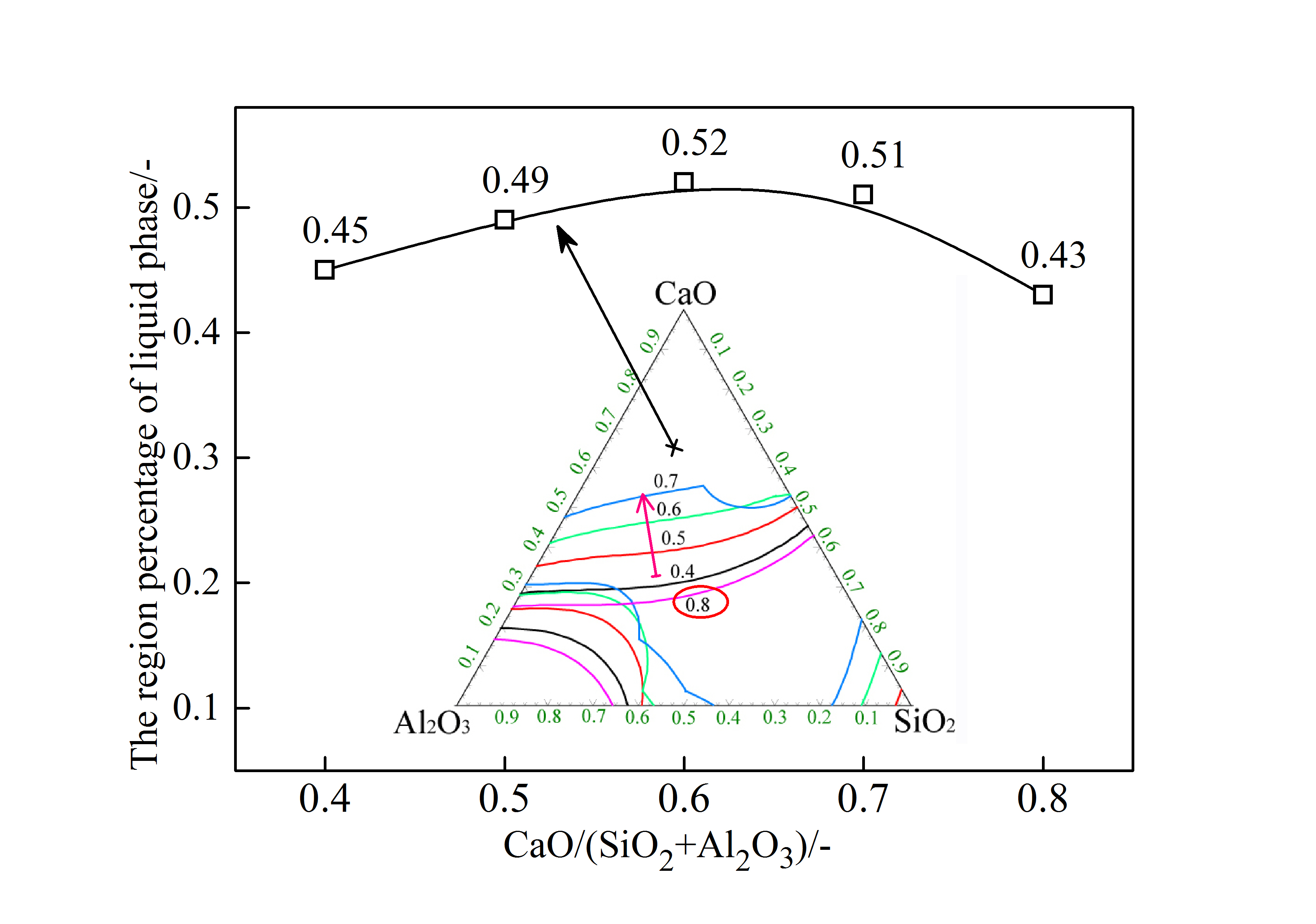

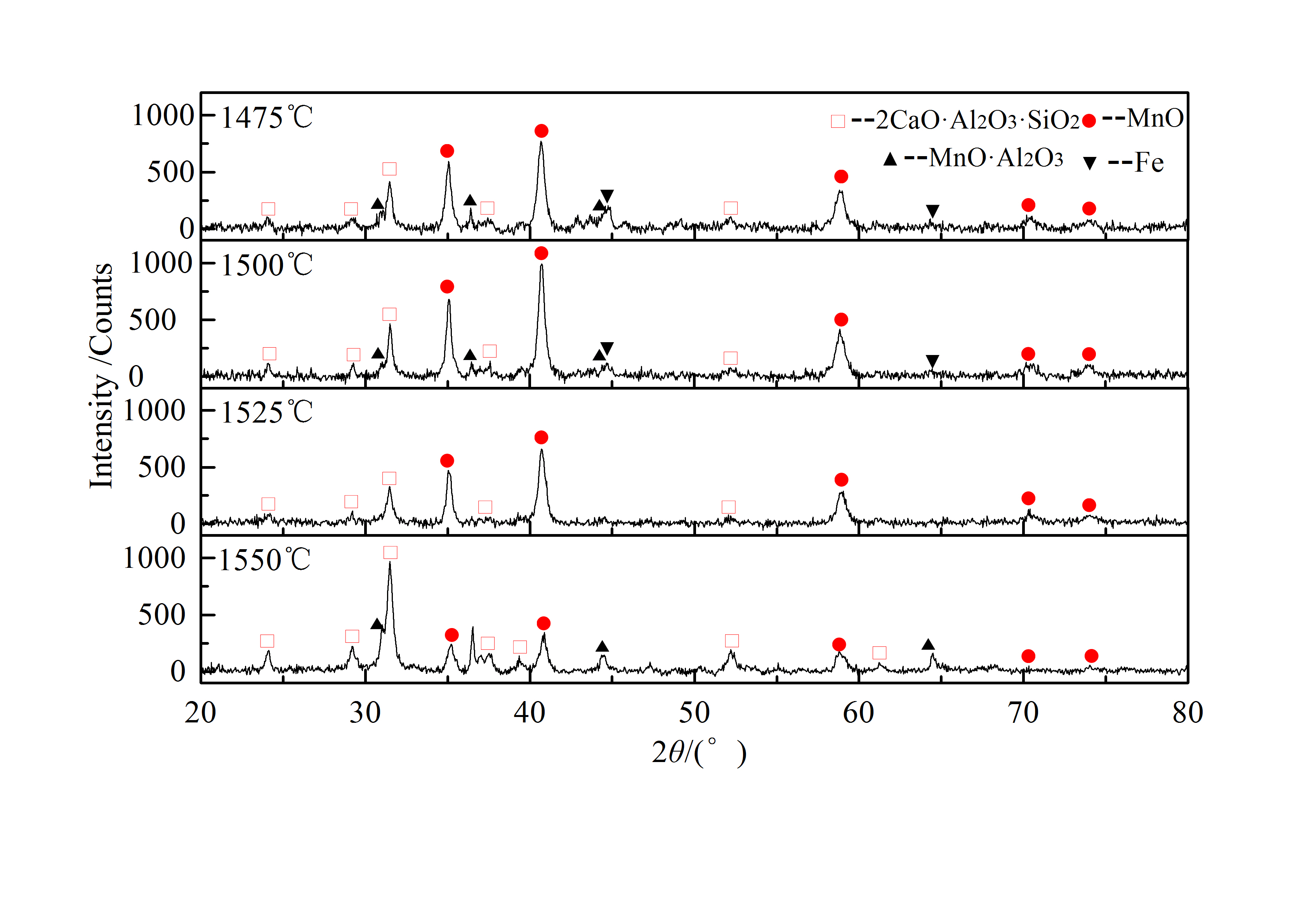

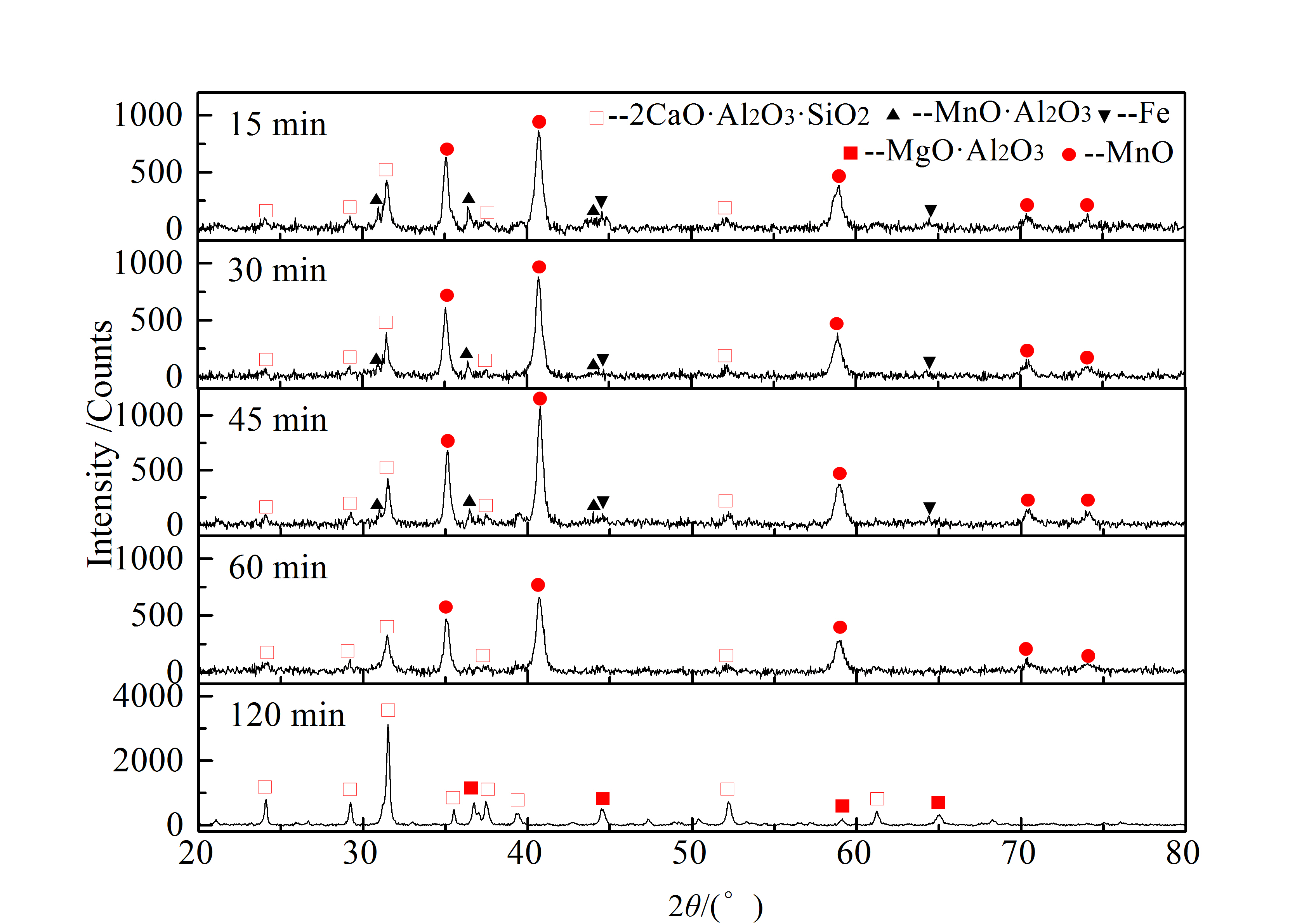

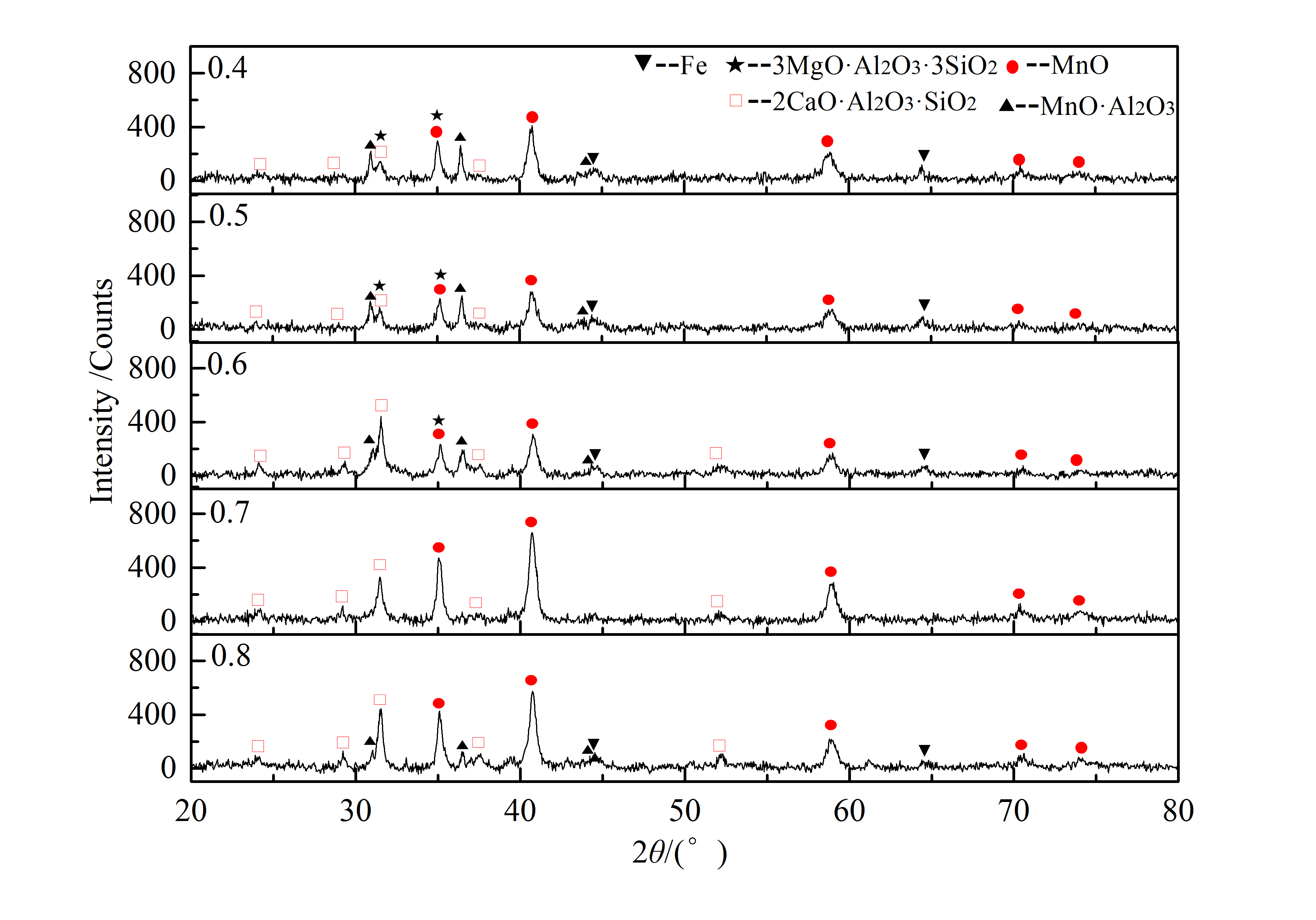

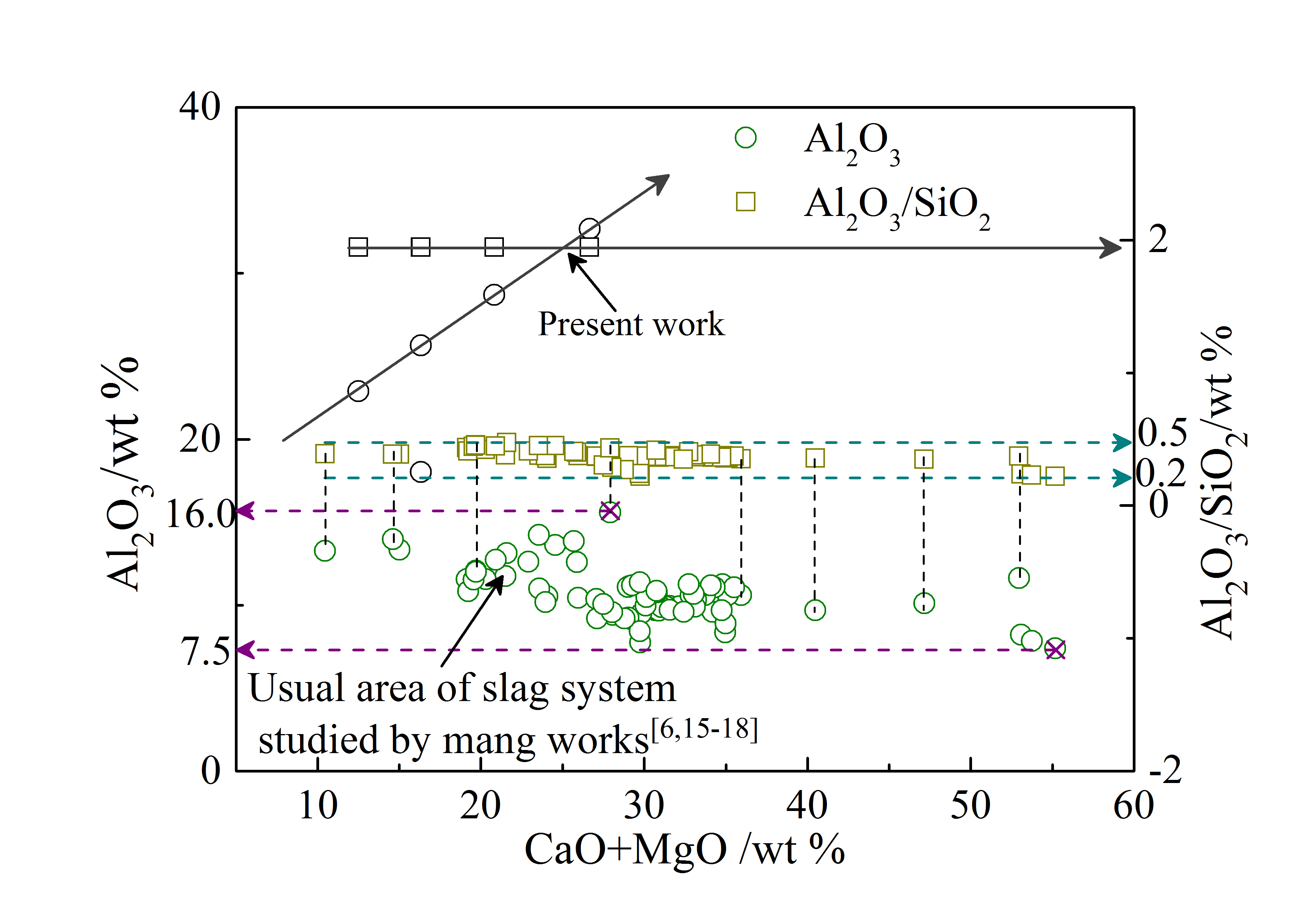

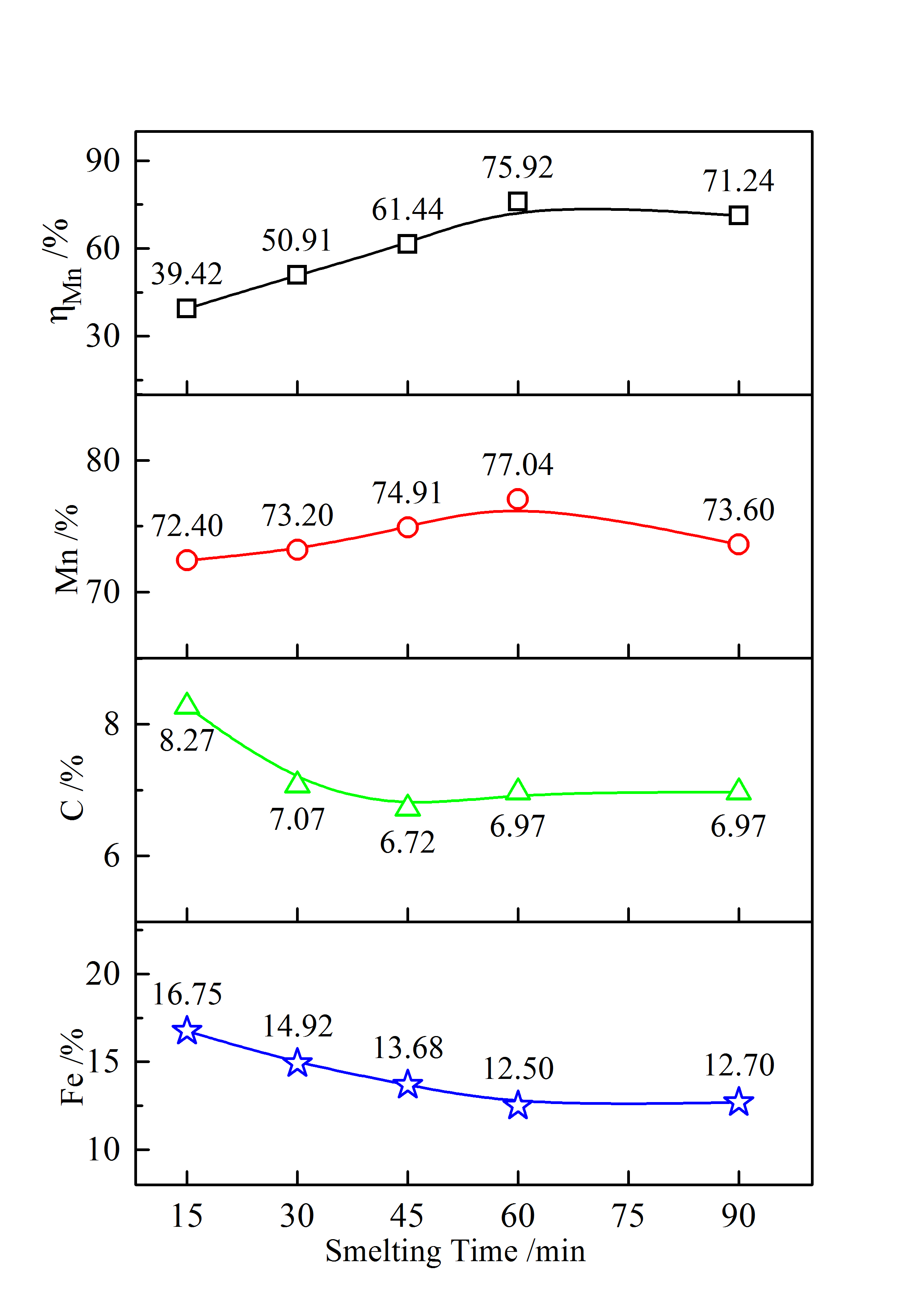

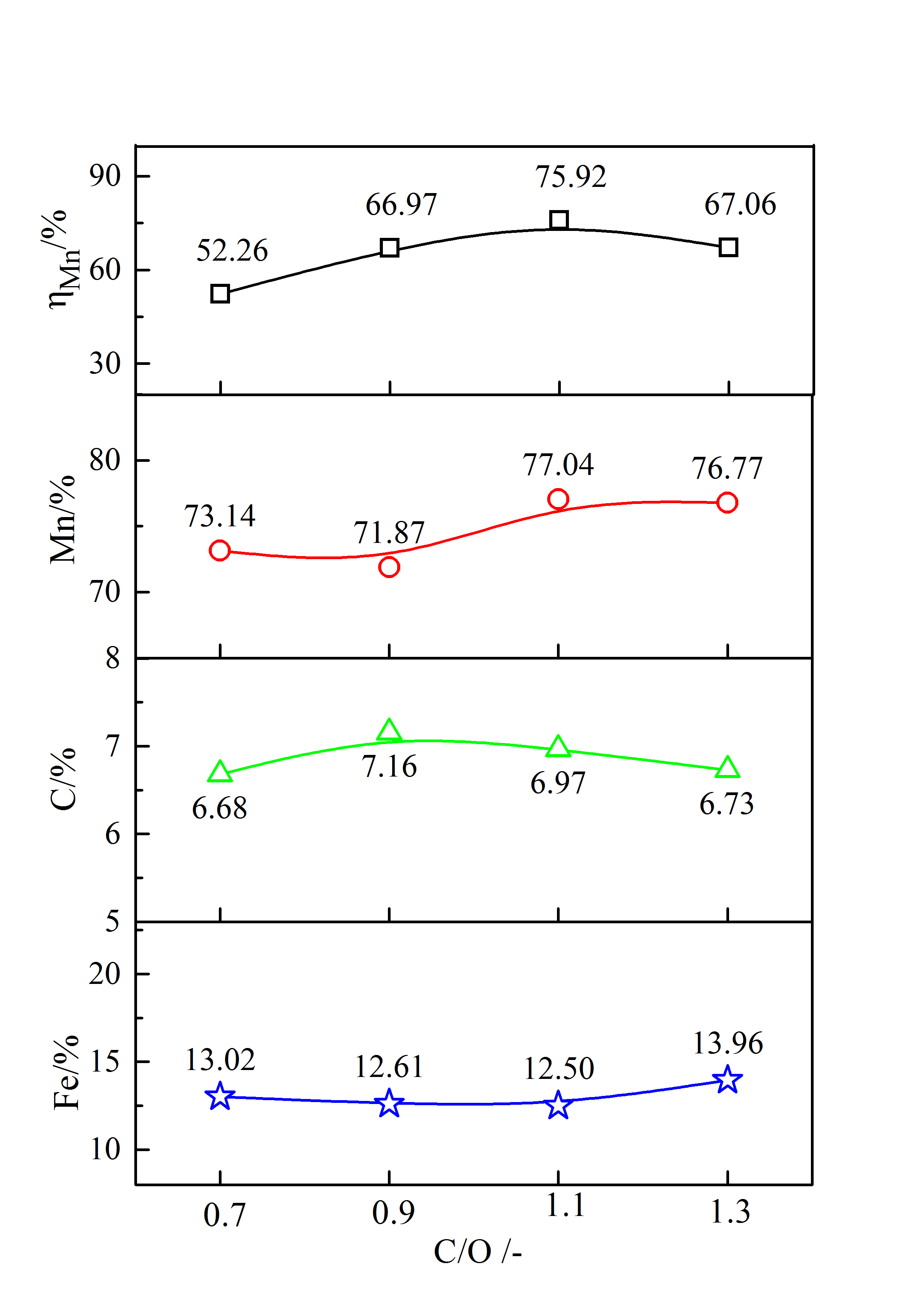

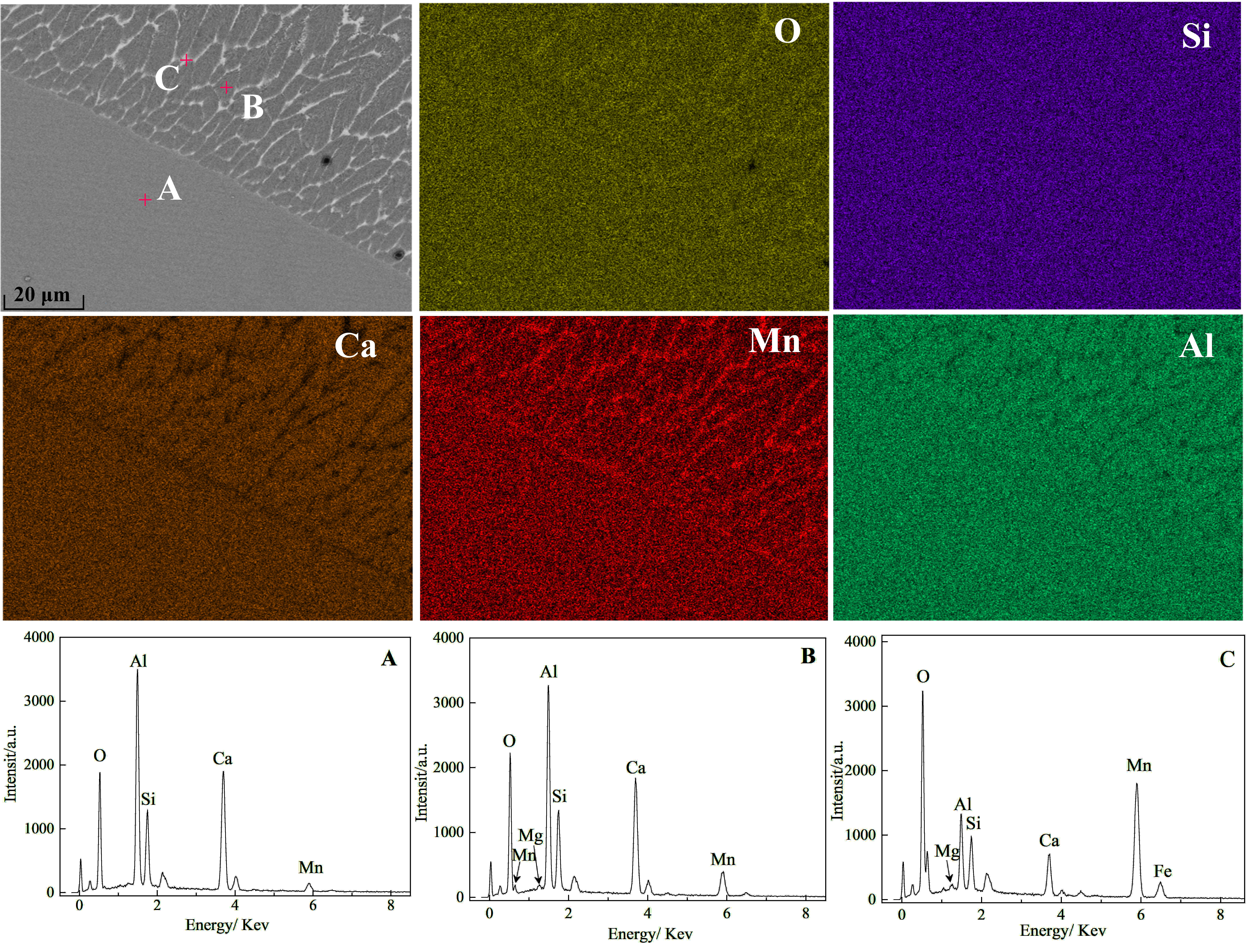

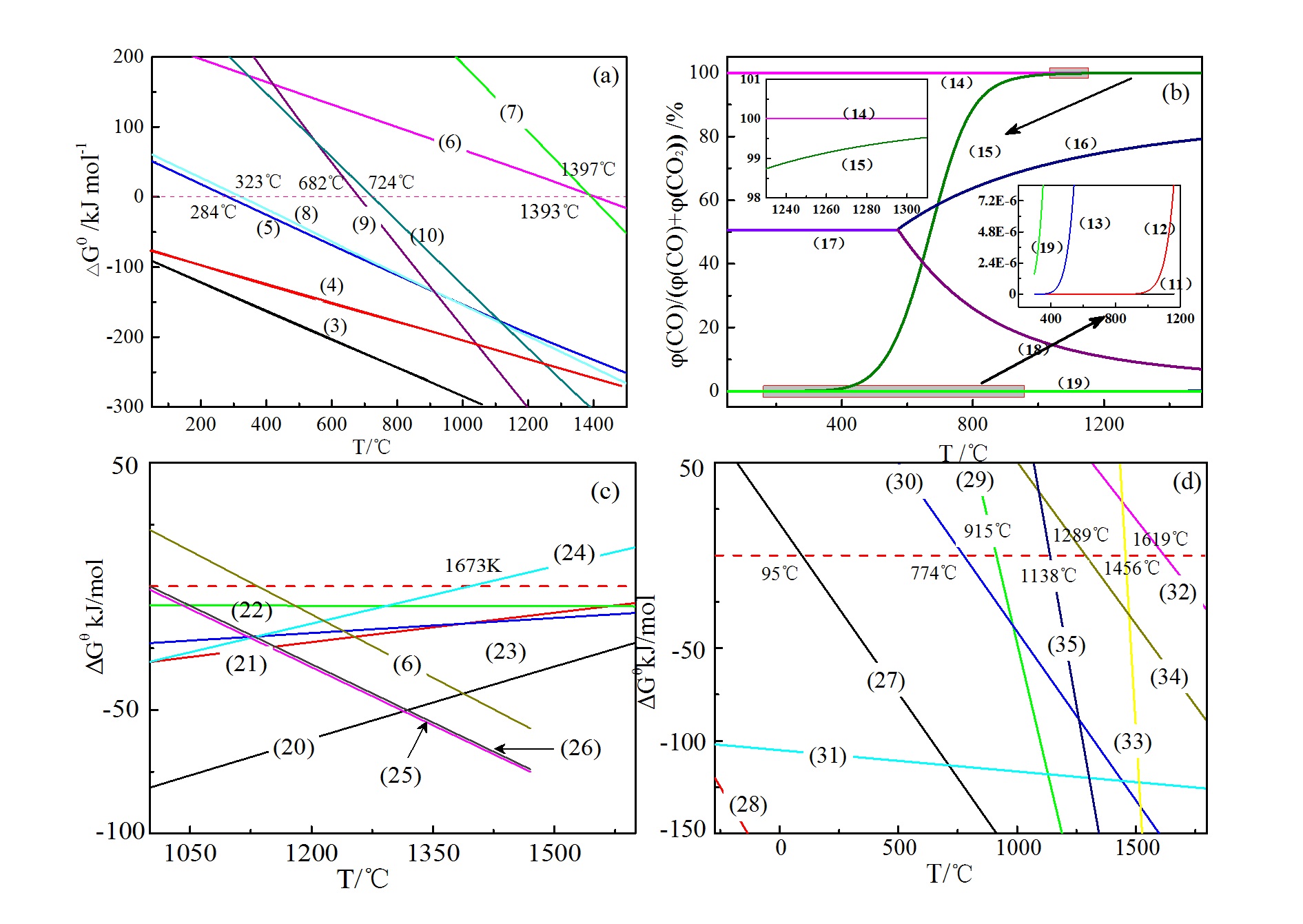

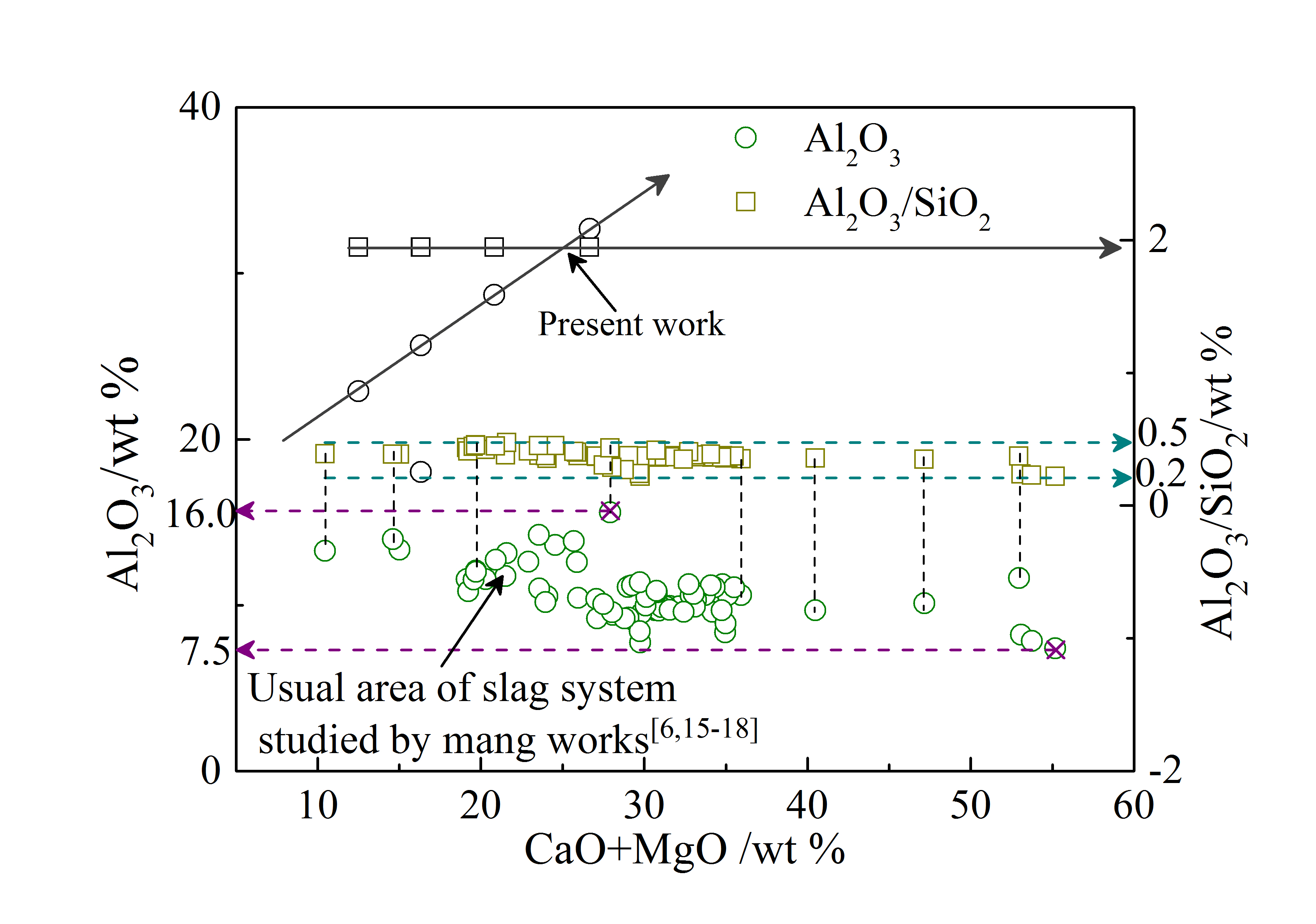

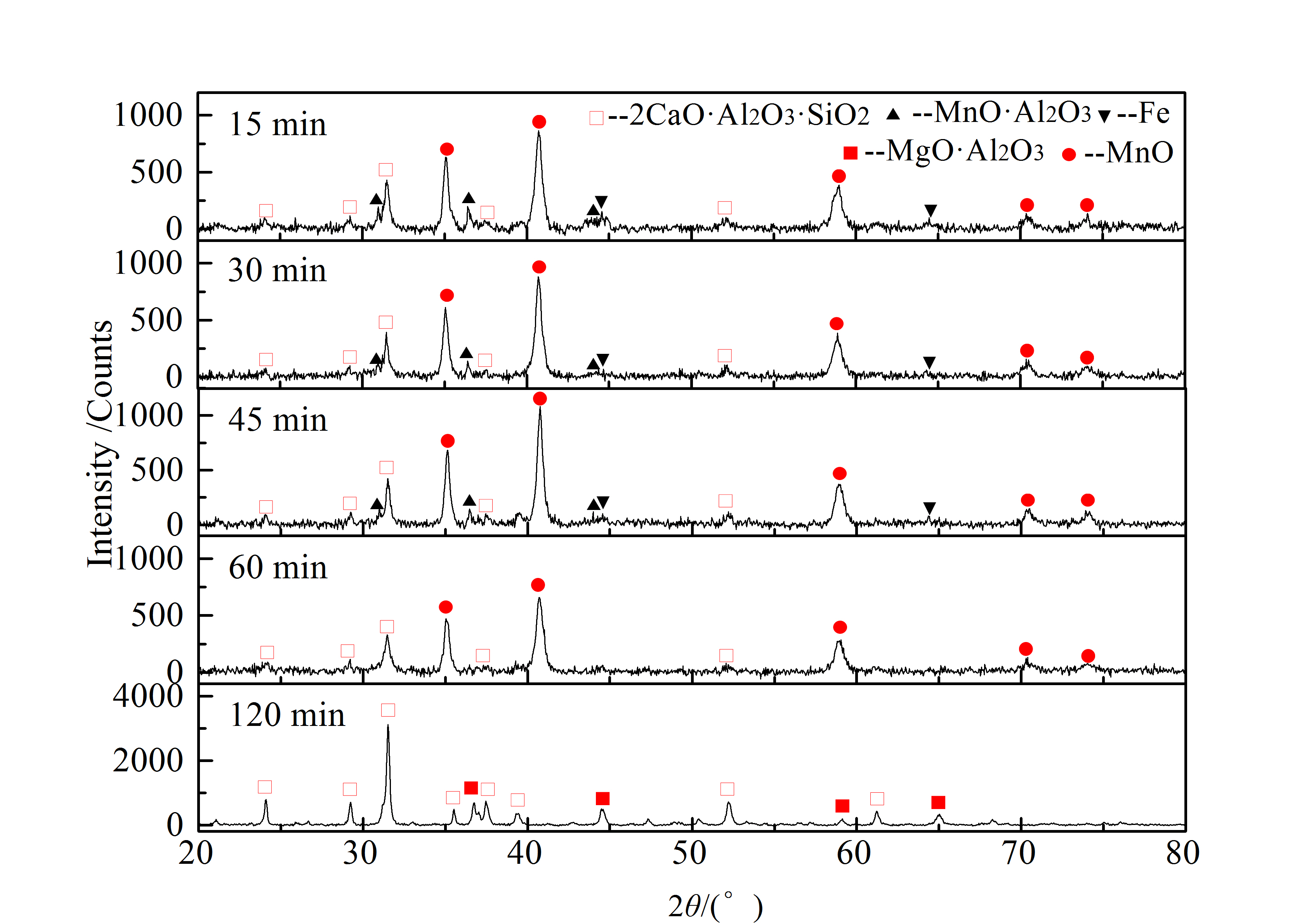

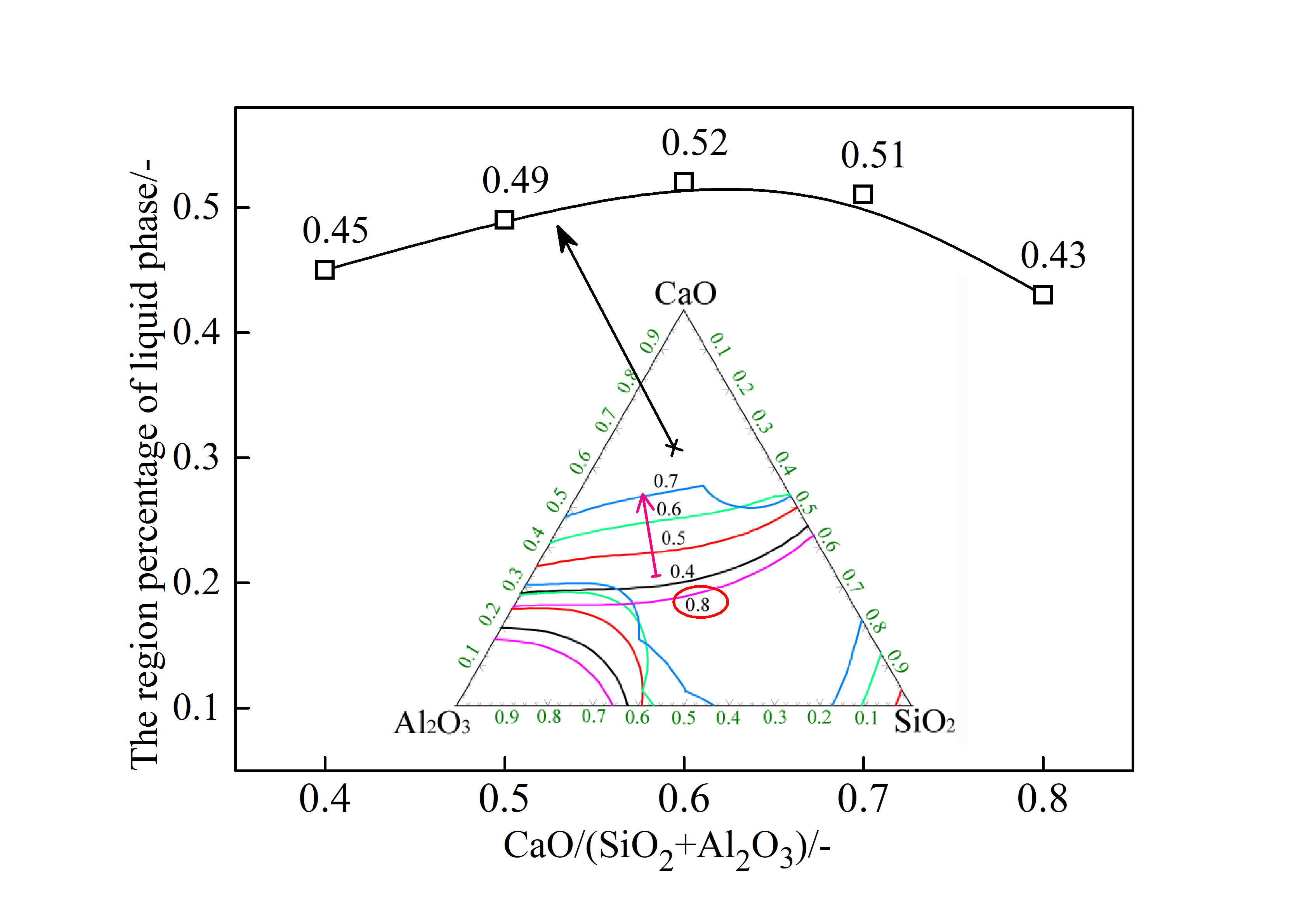

The smelting separation of high-alumina rich-manganese ore prepared with selective reduction and magnetic separation was proposed to produce the high carbon ferromanganese alloy (HCFeMn) in this paper. The rational smelting separation parameters for high-alumina rich-manganese ore includes a FC/O of 1.1, a smelting temperature of 1550°C, a melting time of 60 min, and a basicity of 0.7. The smelting separation of high-alumina rich-manganese ore was achieved successfully. The content of Fe, C, Si and other impurities (P, S) are 12.13%, 6.73%, 0.17% and 0.14, 0.008, respectively. Especially, the recovery and content of Mn reach around 80.47% and 76.76%. The obtained high carbon ferromanganese alloy has met the higher standard (FeMn78C8) of ferromanganese alloy, especially, the content of Si P and S in the HCFeMn alloy is far below the standard value. Based on the SEM-EDS, XRD and thermodynamic calculation, the smelting and separation mechanisms of high-alumina rich-manganese ore was proposed to more effectively explain the effect of smelting parameters on slag/metal separation behaviors during the process of smelting HCFeMn alloys.
References
T. Coetsee, Miner. Process. Extr. Metall. Rev., 39 (5) (2018) 351-358.
G. Li, Z. Peng, L. Qin, Y. Zhang, T. Jiang, J. Min. Metall. Sect. B-Metall. 53 (2) B (2017) 115-122.
Y.B. Zhang, B.B. Liu, Z.X. You, Z.J. Su, W. Luo, G. Li, T. Jiang, Miner. Process. Extr. Metall. Rev., 37 (5) (2016), 333-341.
S.F. Xiong, X. Li, P.L. Liu, S.H. Hao, F. Hao, Z.L. Yin, J.X. Liu, Miner. Eng., 125 (15) (2018), 126-132.
E.C. Vanderstaay, D.R. Swinbourne, M.A. Monteiro, Miner. Process. Extr. Metall. Rev., 113 (2004) 38-44.
Y.B. Zhang, M.H Du, B.B. Liu, Z.J. Su, G.H. Li, T. Jiang, Sep. Sci. Technol., 52 (2017) 1321-1332..
Y.B. Gao, M. Olivas-Martinez, H.Y. Sohn, G.K. Hang, W.K. Chan, Metall. Mater. Trans. B, 43 B (2012) 1465-1475
V. Singh, T.K. Ghosh, Y. Ramamurthy, V. Tathavadkar, Int. J. Miner. Process, 99 (2011) 84-86.
M. Eissa, S. Ghali, A. Ahmed, H. F. Ei, Ironmak. Steelmak., 39(6) (2012) 419-430.
T. Coetsee, C. Reinke, J. Nell, P. C. Pistorius, Metall. Mater. Trans. B, 46 B (2015) 2540-2552.
J. Safariana, L. Kolbeinsen, Metall. Mater. Trans. B, 46 B (2015) 125-134.
J. Safarian, L. Kolbeinsen, M. Tangstad, G. Tranell, Metall. Mater. Trans. B, 40 B (2009) 935-939.
T. Coetsee J. Nell, P. C. Metall. Mater. Trans. B, 48 B (2017) 1463-1485.
H. Jung, Y. B. Kang, S. A. Decterov, A. D. Pelton, Metall. Mater. Trans. B, 35 B (2004) 264-268.
J. Safarian, G. Tranell, L. Kolbeinsen, M. Tangstad, S. Gaal, J. Kaczorowski, Metall. Mater. Trans. B, 39 B (2008) 704-705.
L. Jin, H. Wang, Z. Xu, F. Wang, J. Univ. Sci. Technol. B, 29 (6) (2007) 574-577.
Y. Zhao, J. Zhang, China’s manganese industry, 14(4) (1996) 47-50. (In Chinese)
An, X. Zheng, H. China’s manganese industry, 19(3) (2001) 26-29. (In Chinese)
J.H. Park, H. Kim, D.J. Min, Metall. Mater. Trans. B. 39B (2008) 150-153.
Z.M. Yan, X.W. Lv, D. liang, J. Zhang, C. G. Bai, Metall. Mater. Trans. B, 48B (2017) 1092-1099.
Z.W. Zhang, S.C. Chen, X. Wu, Z.T. Guo, H.J. Yang, G. Chen, J. Iron. Steel. Res. Int., 41 (4) (2013) 4-6.
I. Sohn, D.J. Min, Steel. Res. Int., 83 (7) (2012) 621-630.
J. Tang, M.S. Chu, C. Feng, Y. Tang, Z.G. Liu, ISIJ Int., 56 (2) (2016) 210-213.
L. Zhang, L.N. Zhang, M.Y. Wang, G.Q. Li, Z.T. Sui, Miner. Eng., 20 (7) (2007) 684-688.
J. Safarian, L. Kolbeinsen, ISIJ Int., 20 (7) (2007) 684-688.
S.W. Joo, S.H. Hong, G.H. Lee, B.D. You, Met. Mater. Int., 19 (3) (2013) 585-590.
A. Blagus, J.R. Dankwah, V. Sahajwalla, ISIJ Int., 20 (7) (2007) 684-688.
Authors retain copyright of the published papers and grant to the publisher the non-exclusive right to publish the article, to be cited as its original publisher in case of reuse, and to distribute it in all forms and media.
The Author(s) warrant that their manuscript is their original work that has not been published before; that it is not under consideration for publication elsewhere; and that its publication has been approved by all co-authors, if any, as well as tacitly or explicitly by the responsible authorities at the institution where the work was carried out. The Author(s) affirm that the article contains no unfounded or unlawful statements and does not violate the rights of others. The author(s) also affirm that they hold no conflict of interest that may affect the integrity of the Manuscript and the validity of the findings presented in it. The Corresponding author, as the signing author, warrants that he/she has full power to make this grant on behalf of the Author(s). Any software contained in the Supplemental Materials is free from viruses, contaminants or worms.The published articles will be distributed under the Creative Commons Attribution ShareAlike 4.0 International license (CC BY-SA).
Authors are permitted to deposit publisher's version (PDF) of their work in an institutional repository, subject-based repository, author's personal website (including social networking sites, such as ResearchGate, Academia.edu, etc.), and/or departmental website at any time after publication.
Upon receiving the proofs, the Author(s) agree to promptly check the proofs carefully, correct any typographical errors, and authorize the publication of the corrected proofs.
The Corresponding author agrees to inform his/her co-authors, of any of the above terms.
